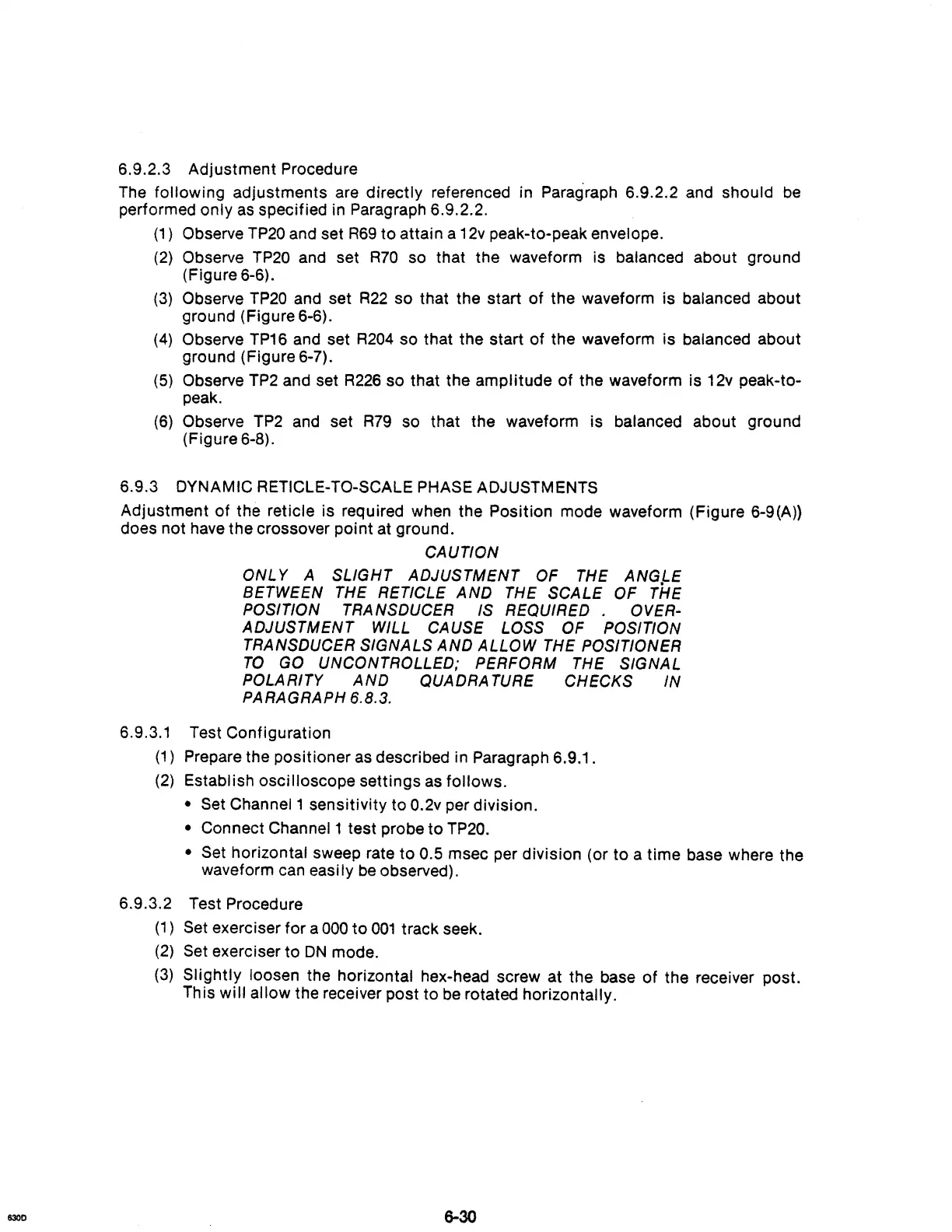

6.9.2.3 Adjustment Procedure
The
following adjustments are directly referenced in Paragraph 6.9.2.2 and should
be
performed only
as
specified in Paragraph 6.9.2.2.
(1)
Observe
TP20
and set
R69
to
attain a 12v peak-to-peak envelope.
(2)
Observe
TP20
and set
R70
so that the waveform is balanced about ground
(Figure 6-6).
(3)
Observe
TP20
and set
R22
so that the start
of
the waveform is balanced about
ground (Figure 6-6).
(4)
Observe
TP16
and set
R204
so that the start of the waveform is balanced about
ground (Figure 6-7).
(5)
Observe
TP2
and set
R226
so that the amplitude
of
the waveform is 12v peak-to-
peak.
(6)
Observe
TP2
and set
R79
so that the waveform is balanced about ground
(Figure 6-8).
6.9.3 DYNAMIC RETICLE-TO-SCALE PHASE ADJUSTMENTS
Adjustment
of
the reticle is required when the Position mode waveform (Figure 6-9(A))
does not have the crossover point at ground.
CAUTION
ONL Y A
SLIGHT
ADJUSTMENT
OF
THE ANG.LE
BETWEEN THE RETICLE
AND
THE
SCALE
OF
THE
POSITION TRANSDUCER IS
REQUIRED.
OVER-
ADJUSTMENT
WILL CAUSE LOSS
OF
POSITION
TRANSDUCER SIGNALS
AND
ALLOW
THE POSITIONER
TO
GO UNCONTROLLED; PERFORM THE SIGNAL
POLARITY
AND
QUADRA TURE CHECKS IN
PARAGRAPH 6.8.3.
6.9.3.1 Test Configuration
(1)
Prepare the positioner
as
described in Paragraph 6.9.1.
(2)
Establish oscilloscope settings as follows.
• Set Channel 1 sensitivity
to
0.2v per division.
• Connect Channel 1 test probe
to
TP20.
• Set
horizontal sweep rate
to
0.5 msec per division (or
to
a time base where the
waveform can easi
Iy
be
observed).
6.9.3.2 Test Procedure
(1)
Set exerciser for a
000
to
001
track seek.
(2)
Set exerciser to
ON
mode.
(3)
Slightly loosen the horizontal hex-head screw at the base
of
the receiver post.
This will
allow the receiver post to be rotated horizontally.
