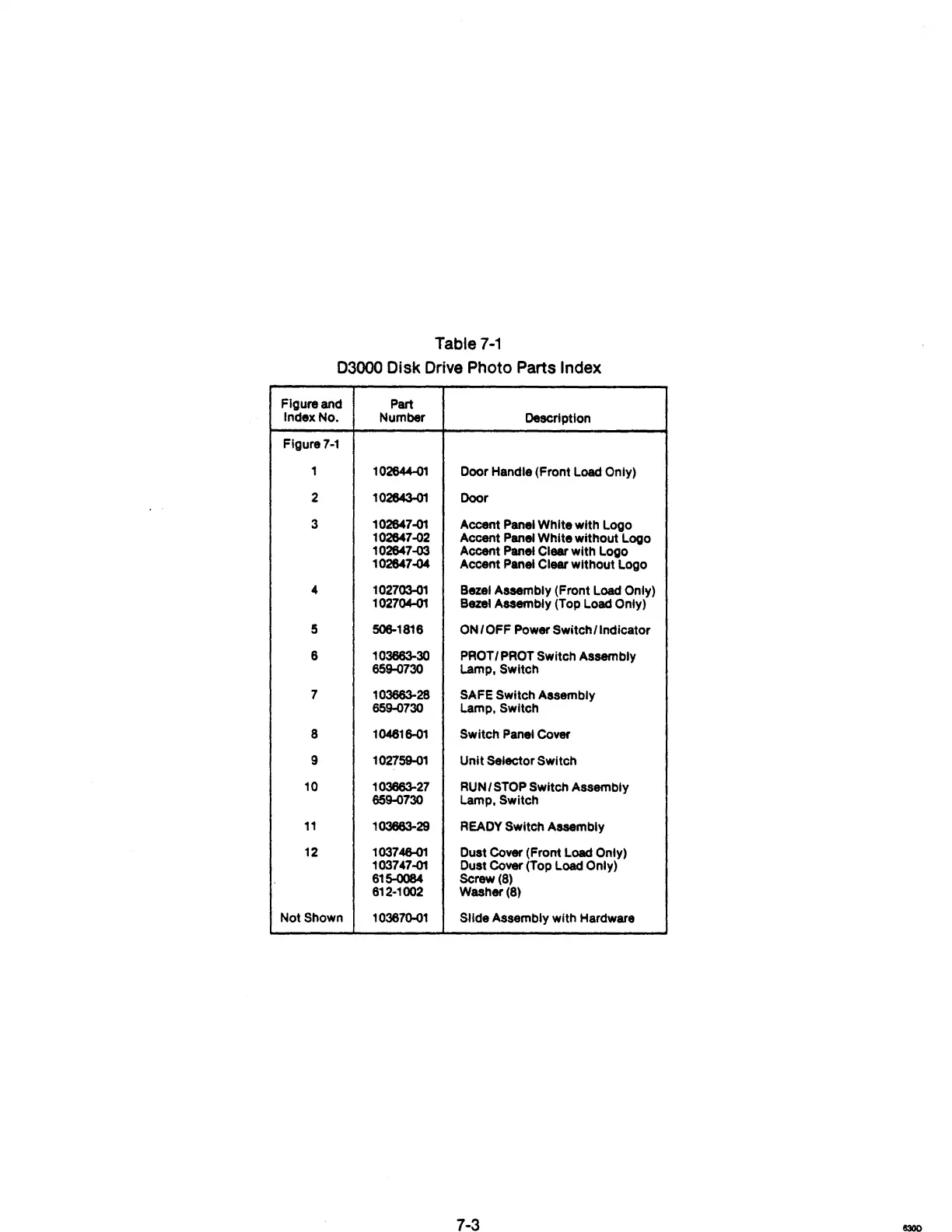

Table
7-1
03000 Disk Drive Photo Parts Index
Figure and
Part
Index No.
Number
Description
Figure
7-1
1
10~1
Door Handle (Front Load Only)
2
102643-01
Door
3
102647-01 Accent Panel
White
with
Logo
102647-02
Accent Panel
White
without
Logo
102647-03
Accent Panel Clear
with
Logo
102647-04
Accent Panel Clear
without
Logo
4
102703-01
Bezel Assembly
(Front Load Only)
102704-01 Bezel Assembly
(Top Load Only)
5
506-1816
ON/OFF
PowerSwitchllndicator
6 103663-30
PROT / PROT Switch Assembly
659-0730 Lamp. Switch
7
103663-28 SAFE Switch Assembly
659-0730 Lamp.
Switch
8 104616-01 Switch Panel Cover
9 102759-01
Unit
Selector Switch
10
103663-27
RUN
/ STOP Switch Assembly
659-0730
Lamp.
Switch
11
103663-29 READY Switch Assembly
12
103746-01
Dust Cover (Front Load Only)
103747-01
Dust Cover (Top Load Only)
615-0084
Screw (8)
612-1002 Washer (8)
Not
Shown
103670-01
Slide Assembly with Hardware
7-3
