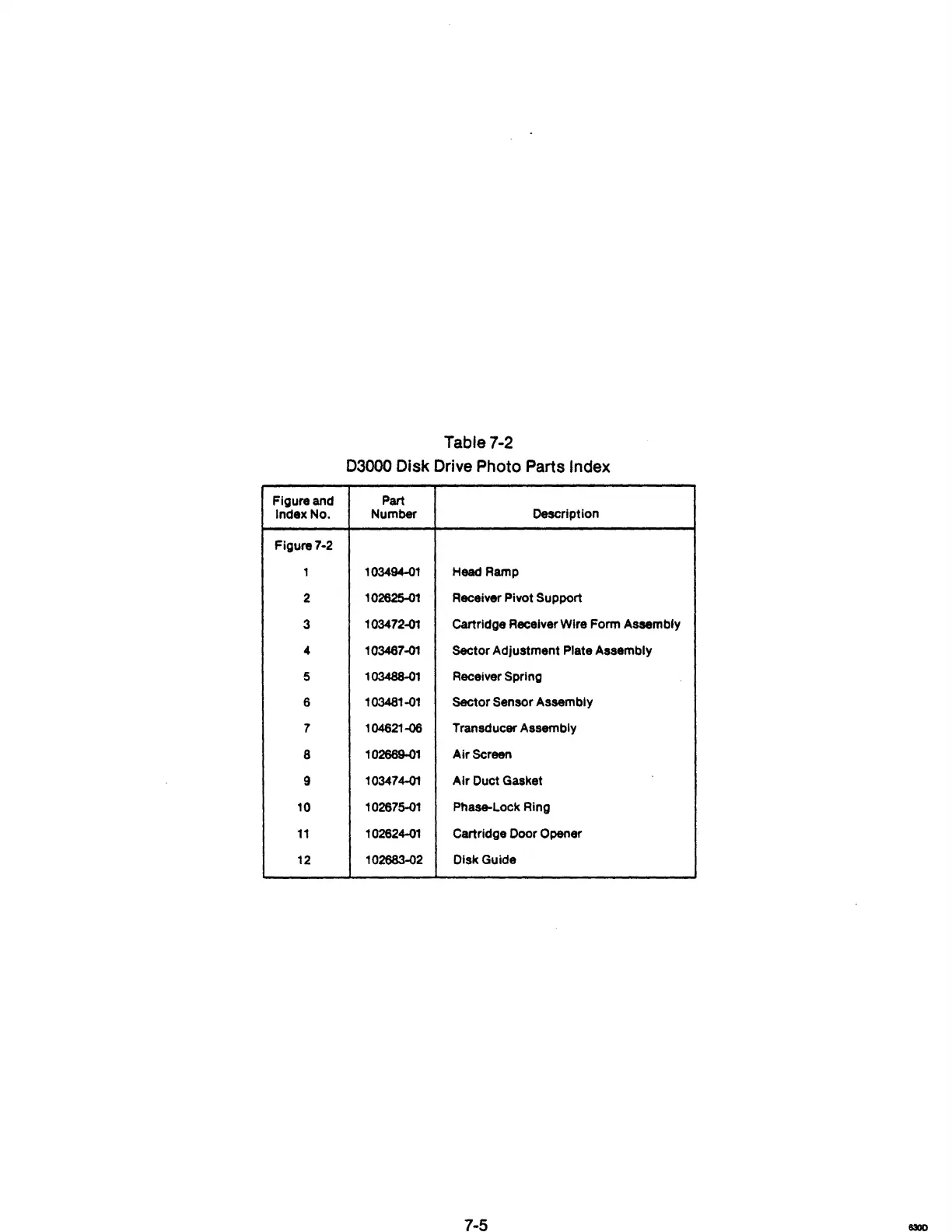

Table 7-2
03000 Disk Drive Photo Parts Index
Figure and Part
Index No. Number
Description
Figure
7-2
1
103494-01 Head Ramp
2
102625-01 Receiver Pivot Support
3
103472-01
Cartridge
Receiver Wire Form Assembly
4 103467-01 Sector
Adjustment
Plate Assembly
5
103488-01 Receiver Spring
6
103481-01 Sector Sensor Assembly
7
104621-06
Transducer Assembly
8
102669-01
Air
Screen
9
103474-01
Air
Duct Gasket
10
102675-01 Phase-Lock Ring
11
102624-01 Cartridge Door Opener
12
102683-02
Disk Guide
