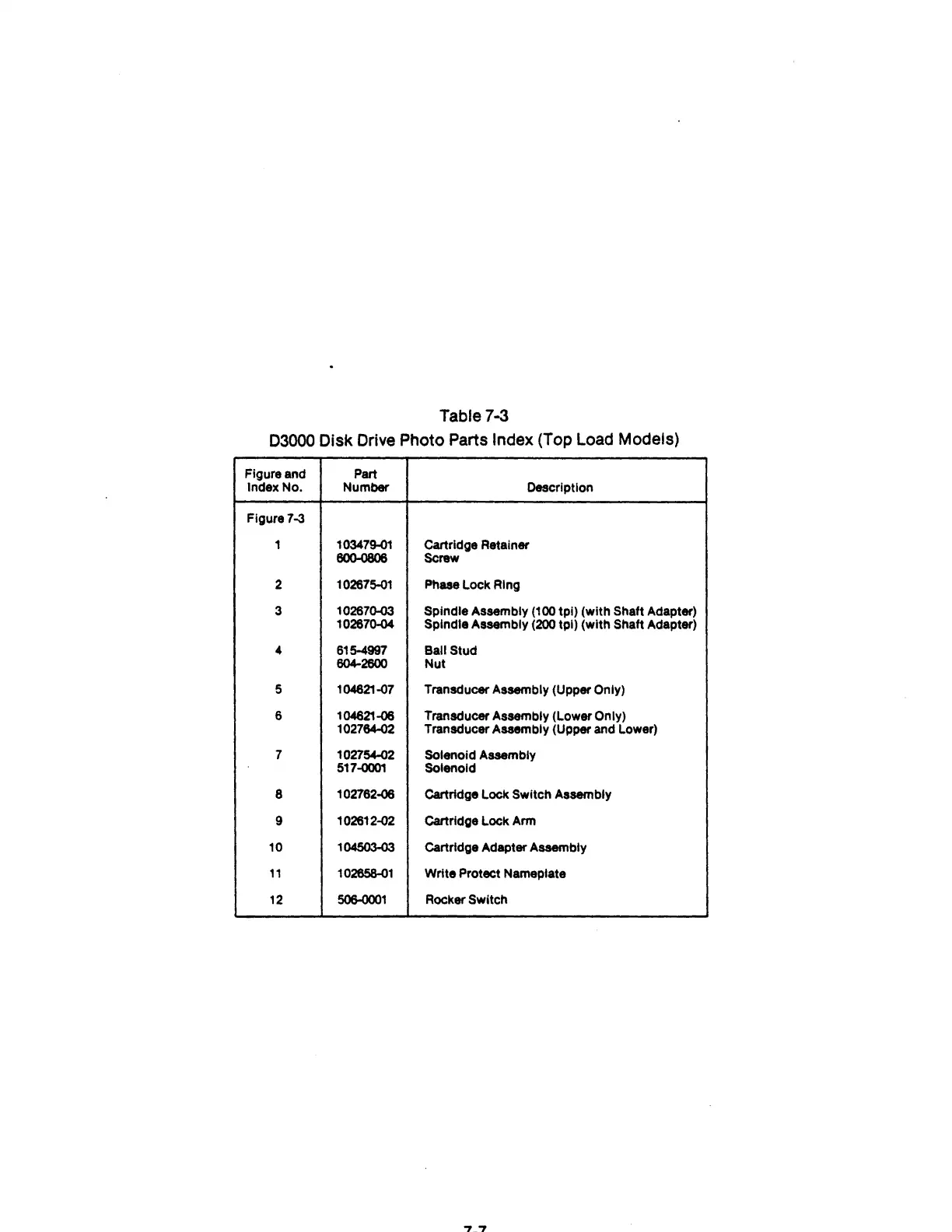

Table 7-3
03000 Disk Drive Photo Parts Index (Top Load Models)
Figure and
Part
Index No.
Number Description
Figure 7-3
1 103479-01 Cartridge Retainer
800-0806
Screw
2
102675-01
Phase
Lock Ring
3
10267().03
Spindle Assembly (100
tpl)
(with
Shaft Adapter)
10267().04
Spindle Assembly
(200 tpl)
(with
Shaft Adapter)
4 815-4997
Ball
Stud
604-2800
Nut
5 104821-07 Transducer Assembly (Upper Only)
6
1~21-08
Transducer Assembly (Lower Only)
102784-02
Transducer Assembly (Upper
and Lower)
7
102754-02 Solenoid Assembly
517-0001
Solenoid
8
102782-08
cartridge
Lock Switch Assembly
9
102612-02
cartridge
Lock Arm
10 104503-03
cartridge
Adapter Assembly
11
102858-01 Write Protect Nameplate
12
506-0001
Rocker Switch
