PCC D3400 - Page 254

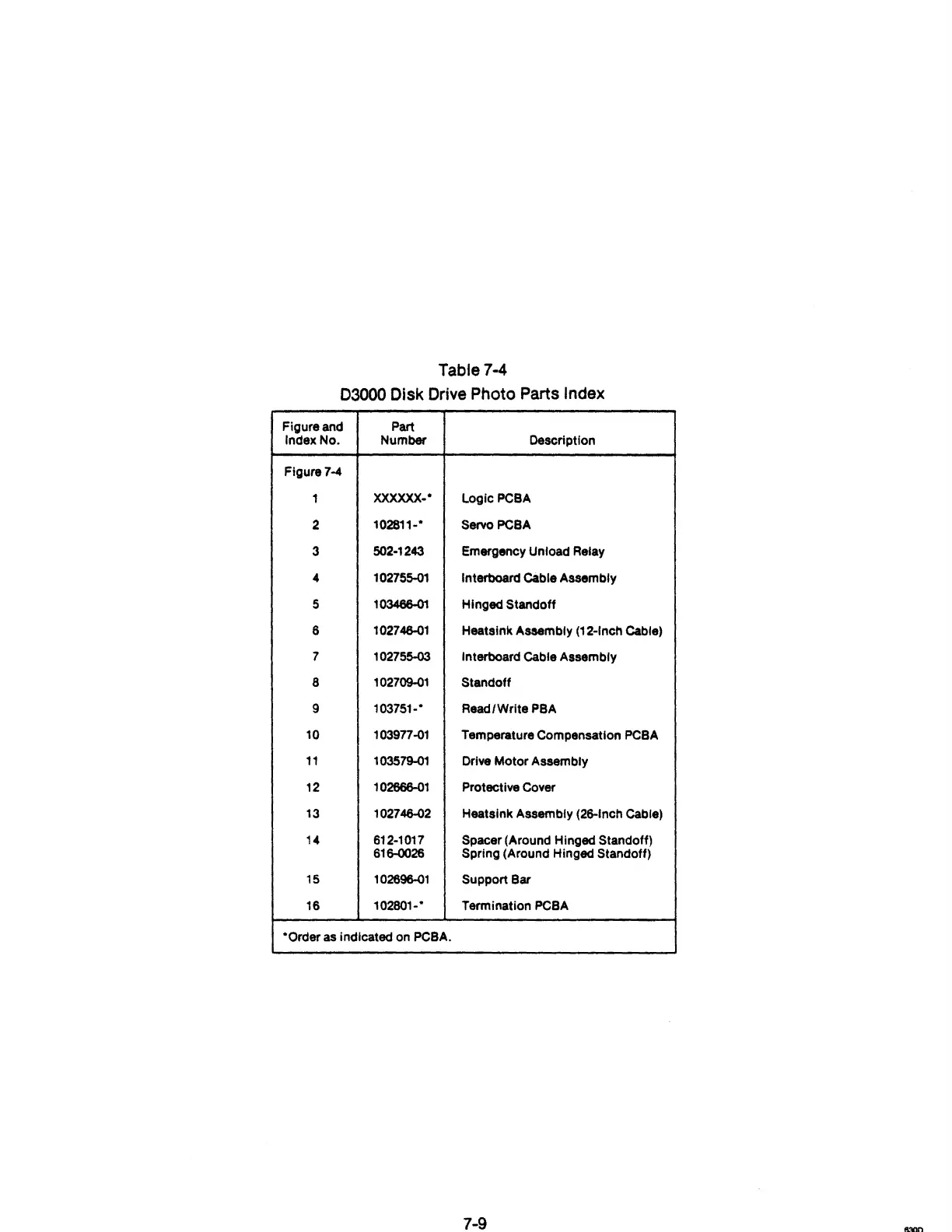

Table 7-4
03000 Disk Drive Photo Parts Index
Figure and Part
Index No. Number Description
Figure
7-4
1
xxxxxx-"
Logie PCBA
2
102811-" Servo PCBA
3
502-1243 Emergency
Unload Relay
4 102755-01 Interboard Cable Assembly
5
103466-01
Hinged Standoff
6
102746-01
Heatslnk Assembly (12-lnch Cable)
7 102755-03
Interboard Cable Assembly
8
102709-01 Standoff
9 103751-" Read/Write PBA
10
1039n-01 Temperature Compensation PCBA
11
103579-01 Drive Motor Assembly
12 102666-01 Protective Cover
13
102746-02 Heatslnk Assembly (26-lnch Cable)
14 612-1017
Spacer (Around Hinged Standoff)
616-0026 Spring
(Around Hinged Standoff)
15 102696-01
Support Bar
16
102801-" Termination PCBA
"Order as indicated on PCBA.
7-9
8300
