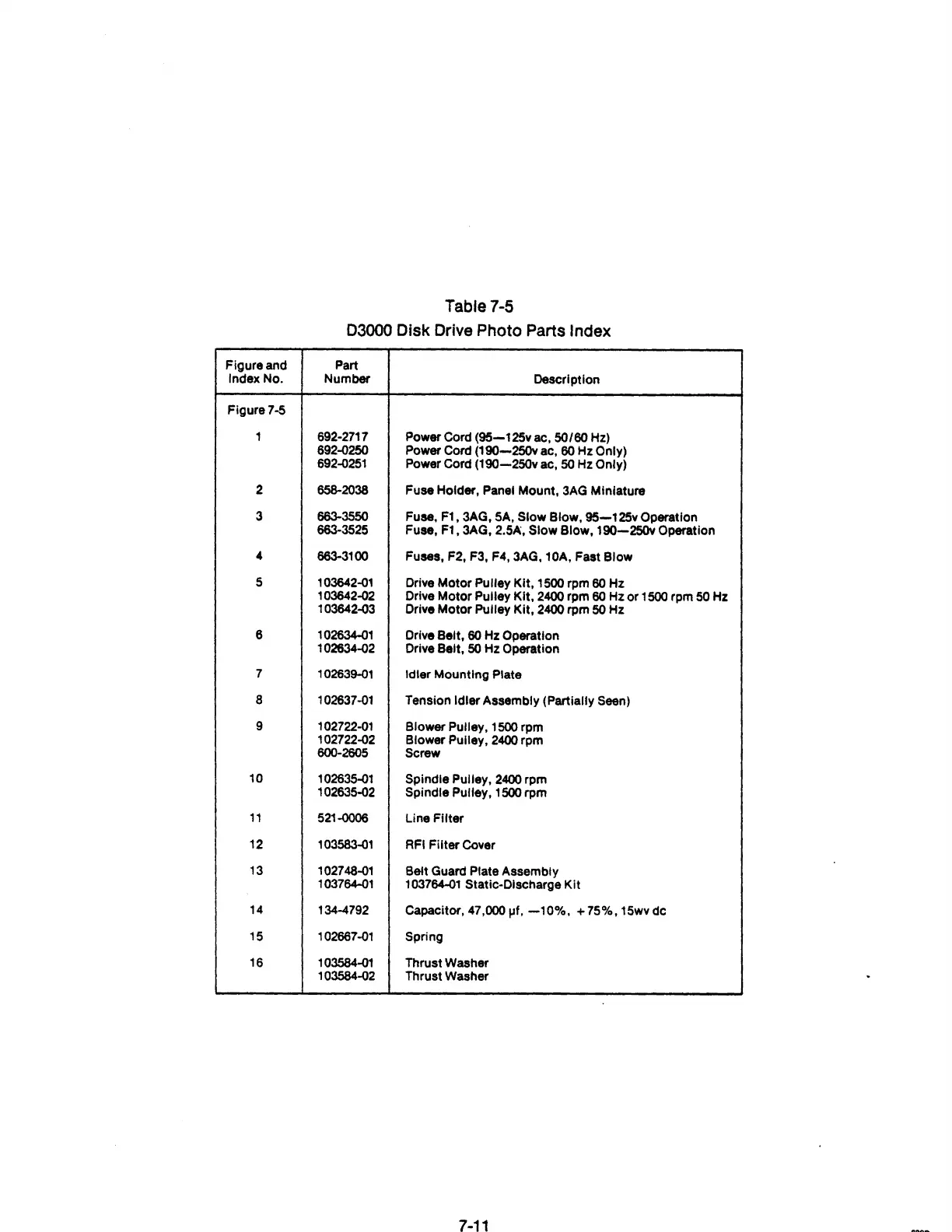

Table 7-5
03000 Disk Drive Photo Parts Index
Figure and Part
Index No.
Number
Description
Figure 7-5
1
692-2717
Power Cord
(95-125v
ac,
50/60
Hz)
692-0250
Power Cord
(190-25Ov
Be,
60 Hz Only)
692-0251
Power Cord
(190-250v
ac,
50
Hz Only)
2
658-2038
Fuse Holder, Panel Mount, 3AG Miniature
3
663-3550
Fuse,
Fl,
3AG, 5A, Slow
Blow,
95-125v
Operation
663-3525 Fuse,
Fl,
3AG,
2.5.41,
Slow Blow,
190-25Ov
Operation
4
663-3100
Fuses,
F2, F3, F4, 3AG, lOA, Fast
Blow
5
103642-01
Drive
Motor
Pulley
Kit,
1500 rpm
60
Hz
103642-02
Drive
Motor
Pulley
Kit,
2400 rpm 60 Hz or 1500 rpm 50 Hz
103642-03
Drive
Motor
Pulley
Kit,
2400 rpm 50 Hz
6
102634-01
Drive Belt, 60 Hz Operation
102634-02
Drive Belt,
50
Hz Operation
7
102639-01 Idler
Mounting
Plate
8
102637-01
TenSion Idler
Assembly (Partially Seen)
9
102722-01
Blower Pulley, 1500 rpm
102722-02
Blower Pulley, 2400 rpm
600-2605
Screw
10
102635-01
Spindle Pulley, 2400 rpm
102635-02
Spindle
Pulley, 1500 rpm
11
521-0006
Line Fifter
12
103583-01
AFI Filter Cover
13
102748-01
Belt Guard Plate Assembly
103764-01
103764-01
Static-Discharge
Kit
14 134-4792
Capacitor,
47,000 Ilf,
-10%,
+ 75%, 15wv dc
15
102667-01 Spring
16
103584-01 Thrust Washer
103584-02
Thrust Washer
7-11
6300
