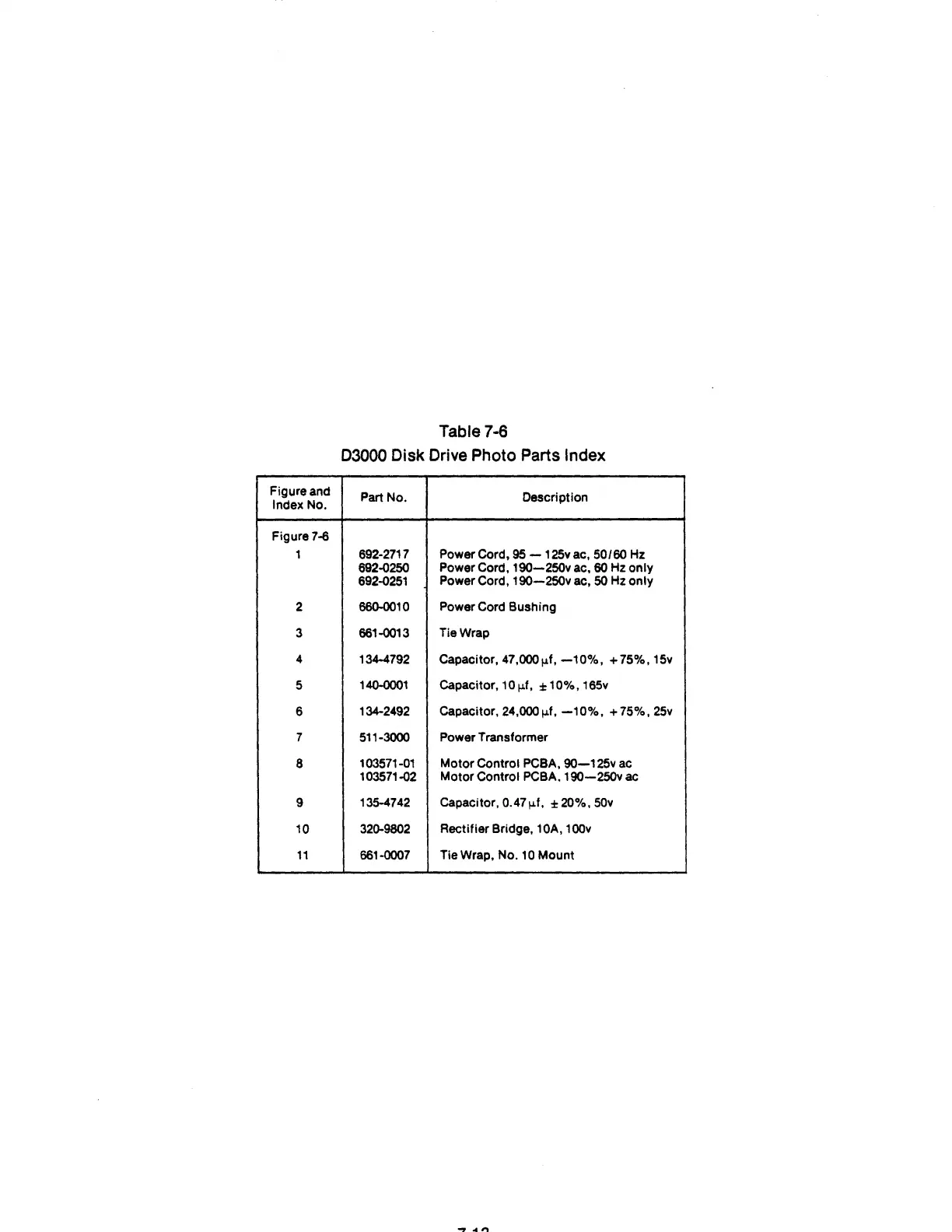

Table 7-6
03000 Disk Drive Photo Parts Index
Figure and
Part No. Description
Index No.
Figure7~
1 692-2717
Power Cord, 95 - 125v ac,
50/60 Hz
692'()250
Power Cord, 190-250v ac, 60 Hz only
692'()251 Power Cord, 190-250v ac, 50 Hz only
2
660-0010 Power Cord Bushing
3 661-0013
Tie Wrap
4
134-4792 Capacitor, 47,OOO~f, -10%, +75%,15v
5
140-0001 capacitor,lOf.Lf, :l:10%,165v
6
134-2492 capacitor,
24,OOOJJ.f, -10%, + 75%, 25y
7 511-3000
Power Transformer
8
103571-01 Motor Control PCSA, 9O-125y ac
103571'()2
Motor Control PCBA. 190-25Ov ac
9
135-4742 capacitor,O.47JJ.f, ±20%, 50y
10
320-9802
Rectifier Bridge, lOA, 100y
11 661-0007
Tie Wrap, No.
10 Mount
6aOO
