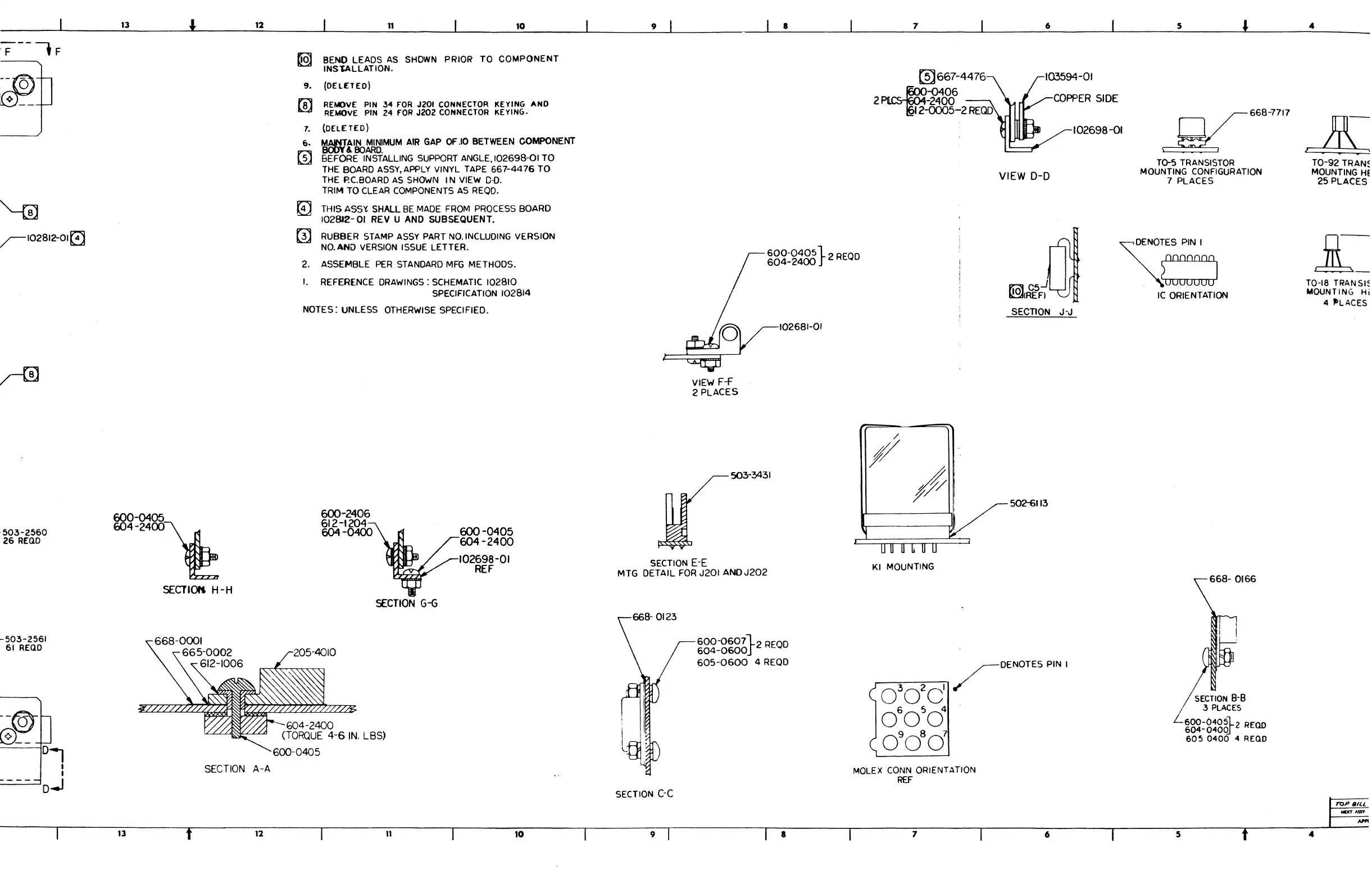

PCC D3400 - Page 282

~--'F
r-102812-01 f2J
503-2560
26 REQD
-503-2561
61 REQD
13
12
600-0405
604-24~
SECTIOK H-H
SECTION A-A
13
t
12
11
10
~ BENO LEADS AS SHOWN PRIOR TO COMPONENT
INSTALLATION.
9. (DELETED)
~ REMOvE PIN 34 fOR J201 CONNECTOR KEYING AND
~ REMOvE PIN 24 fOR J202 CONNECTOR KEYING.
7. (DElETED)
MAINTAIN MINIMUM AIR GAP OF.lO BETWEEN COMPONENT
6. BODY &. BOARD.
~ BEFORE INSTALLING SUPPORT ANGLE, 102698-01 TO
THE BOARD ASSY,APPLY VINYL TAPE 667-4476 TO
THE P.C.80ARD AS SHOWN I N VIEW O{).
TRIM TO CLEAR COMPONENTS AS REOD.
o THIS ASS'! SHALL BE MADE FROM PROCESS BOARD
102812-
01 REV U AND SUBSEQUENT.
m RUBBER STAMP ASSY PART NO. INCLUDING VERSION
NO. AND VERSION ISSUE LETTER.
2.
ASSEMBLE PER STANDARD MFG METHODS.
I. REFERE.NCE DRAWINGS: SCHEMATIC 102810
SPECIFICATION 102814
NOTES: UNLESS
OTHERWISE SPECIFIED.
SECTION G-G
205-4010
11
600-0405
604-2400
102698-01
REF
10
9
8 7
@]667-4476
~
-()406
2 I -2400
12-0005-2 REOO
600-0405} 2 REOD
604-2400
VIEW F-F
2 PLACES
503-3431
102681-01
SECTION E-E
MTG DETAIL FOR J201 ANO J202
SECTION C-C
9
600-0607 L2 REOD
604-0600J
605-0600 4 REOD
8
KI MOUNTING
MOLEX CONN ORIENTATION
REF
7
6
COPPER SIDE
102698-01
VIEW 0-0
5
\ ~66B-7717
TQ-S TRANSISTOR
MOUNTING CONFIGURATION
7 PLACES
~C5...J
t.!.9JlRE F I
~~::::'::I
SECTION J-J
502-6113
6
IC ORIENTATION
5
SECTION 8-8
3 PLACES
600-0405L2 REQD
604-0"lOQI
605 0400 4 REQO
t
4
TO-92 TRAN~
MOUNTING HE
25 PLACES
TO-IS
TRAN Sl~
MOUNTING Hi
4 ~LACES
I ro..:S~
4
