PCC D3400 - Page 45

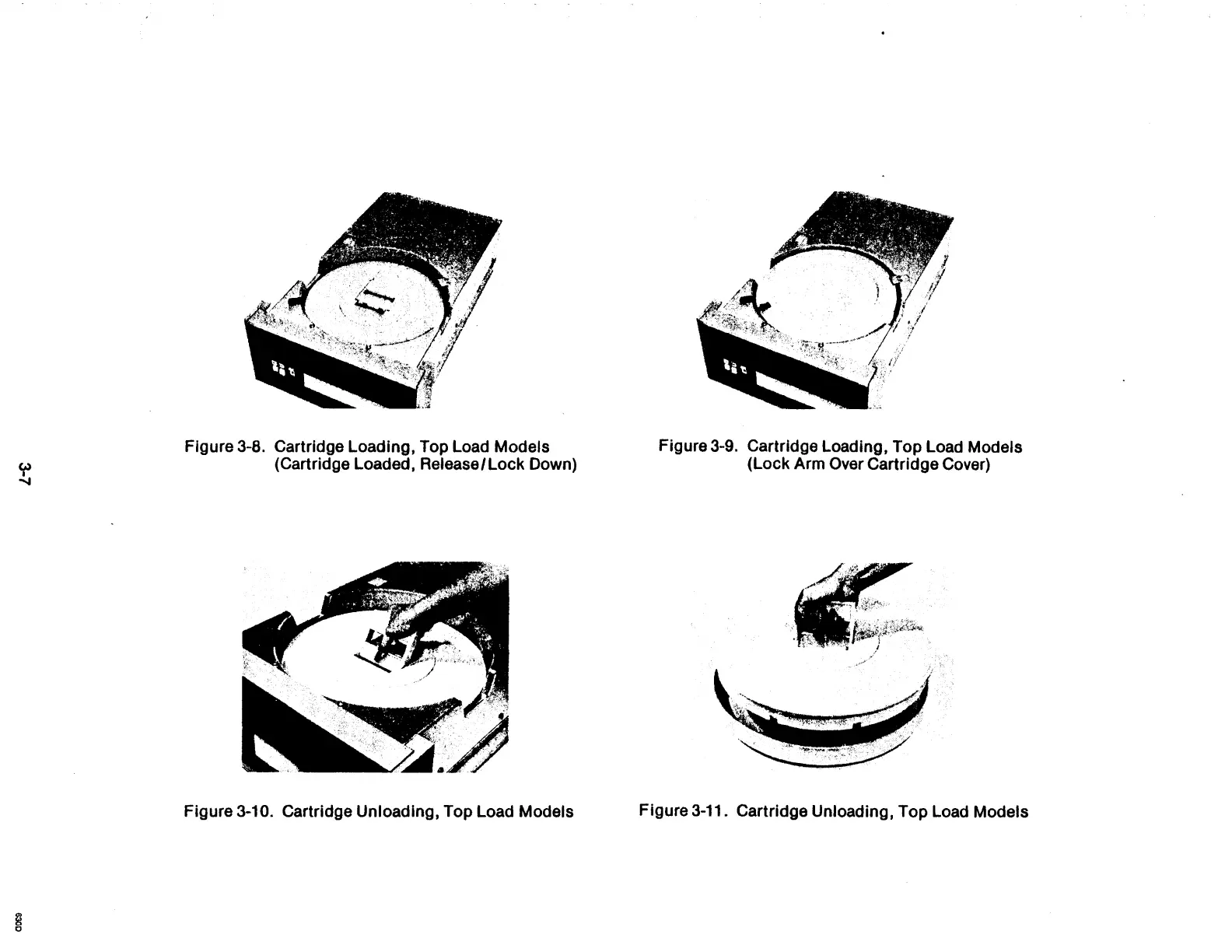

Figure 3-8. Cartridge Loading, Top Load Models
(Cartridge Loaded, Release/Lock Down)
Figure
3-10. Cartridge Unloading, Top Load Models
Figure 3-9. Cartridge Loading, Top Load Models
(Lock Arm
Over Cartridge Cover)
Figure 3-11. Cartridge Unloading, Top Load
Models
