47

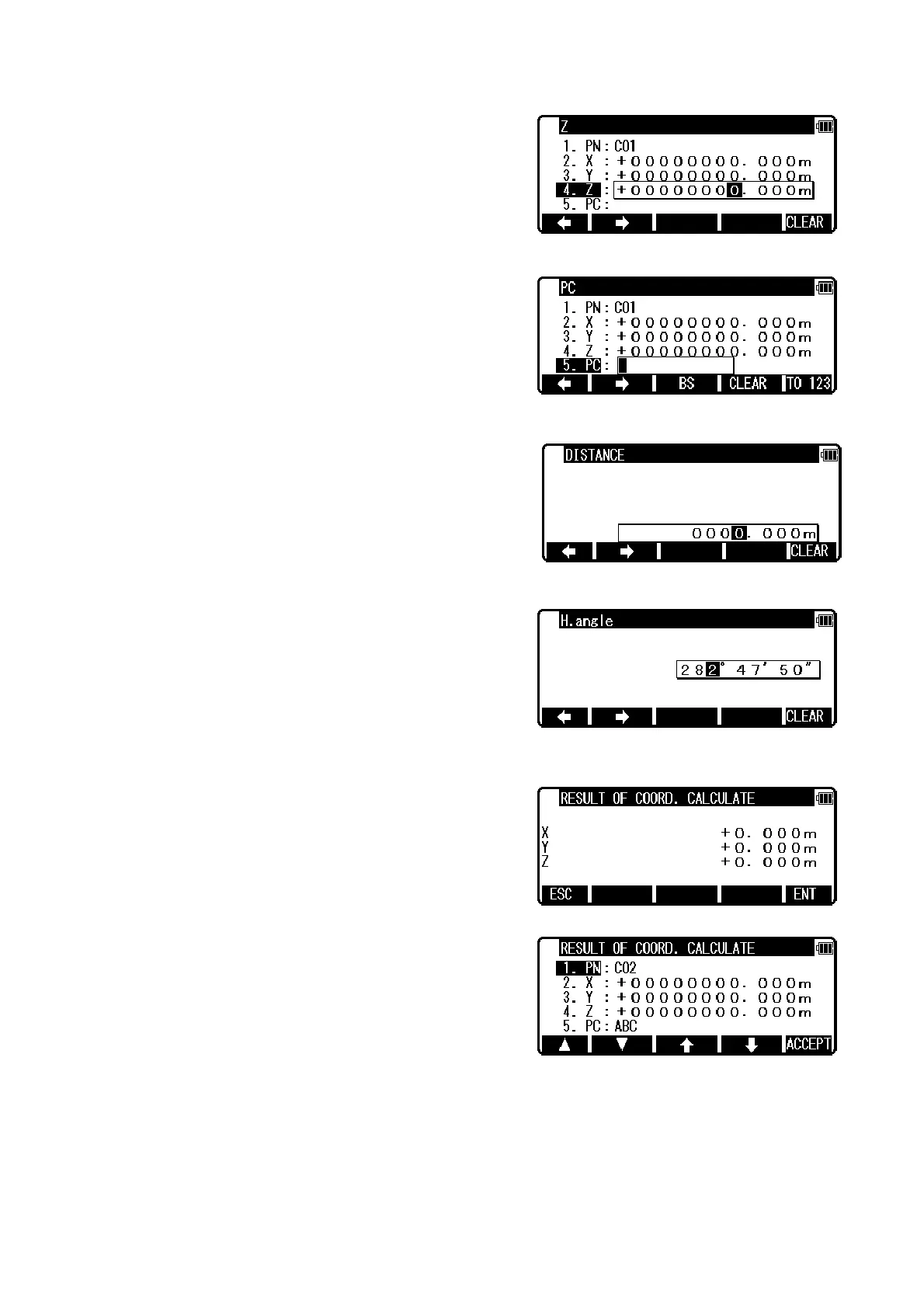

In the same manner, input your desired value by pressing each keys and press [ENT] to open the Z
coordinate input screen.
Input your desired value by pressing each keys and press [ENT] to open the PC, Point Code, input
screen.
Input your desired PC by pressing each keys, and press [ENT] to view DI screen.
Input your desired value and press [ENT] to open the H. ANGLE input window.
Input your desired value to view the RESULT OF COORD. CALCULATE screen.
The second point Coordinates are displayed by plus or minus from the known Coordinates.
Press [ENT] to view the following screen.
The PN, X, Y, Z and PC are viewed and can be edited.
If all items are OK, press [F5][ACCEPT] to save them.
8.1.2.2 Distance and H. angle
In the same manner, the values of Distance and H. angle are inputted as follows and the second point
Coordinates are displayed.
