10 KENR6932
Disassembly a nd Assembly Section
9. Use an allen wrench with a ball end in order to
remove allen he
ad screws (3) that secure the fuel
transfer pump to fuel injection pump (1).
g01335043

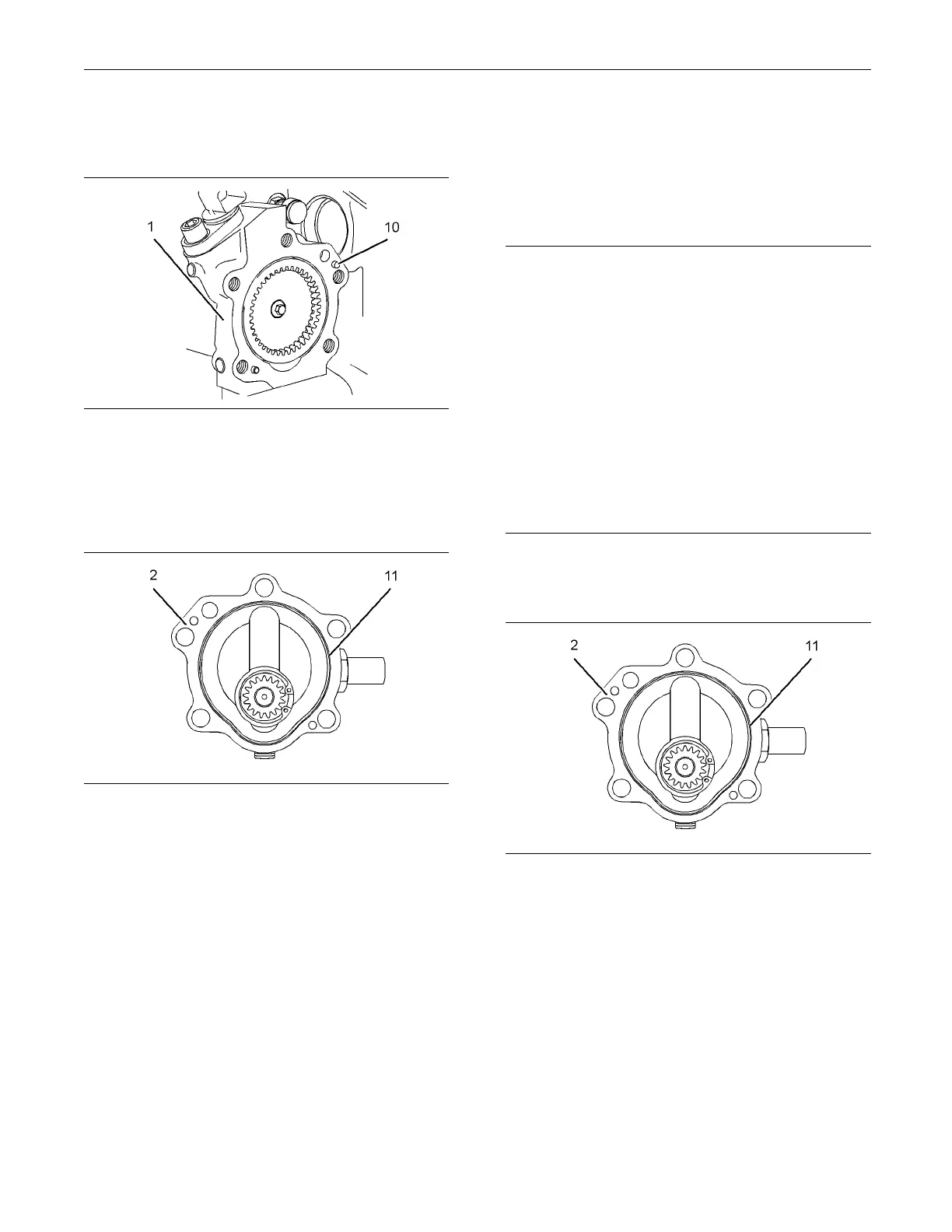

Illustration 8
10. Remove fuel transfer pump (2) from fuel injection
pump (1).
Note: Do not remove dowels (10) from the fuel
injection pump.
g01335045
Illustration 9
11. Remove O-
ring seal (11) from fuel transfer pump
(2).
i02654512
Fuel Tran sfer Pump - Install
Installation P
rocedure
NOTICE
Ensure that all
adjustments and repairs that are
carried out to the fuel system are performed by
authorised personnel that have the correct train-
ing.
Before begining ANY work on the fuel system, re-
fer to Operati
on and Maintenance Manual, “Gen-
eral Hazard Information and High Pressure Fuel
Lines” for safety information.
Refer to System Operation, Testing and Adjusting,
“Cleanliness of Fuel System Components” for de-
tailed infor
mation on the standards of cleanliness
that must be observed during ALL work on the fu-
el system.
1. Ensure that the mating surfaces of fuel injection
pump (1) and fuel transfer pump (2) are clean and
free from da
mage.
g01335045
Illustration 10
2. Install a new O-ring seal (11) to fuel transfer pump
(2). Lubricate the O-ring seal with clean engine oil.
