34 KENR6932
Disassembly a nd Assembly Section
10. Use Tooling (B) to tighten torx screw (12) to a
torque of 27 N·m
(20lbft).
11. UseTooling(E)totightenthefuelinjectionlineto
a torque of 30 N
·m (22 lb ft). Refer to Disassembly
and Assembly, “Fuel Injecton Lines - Install”.
12. Repeat Steps 2
through 11 in order to install the
remaining electronic unit injectors.
13. Use a deep sock
et to install harness assemblies
(9) to electronic unit injectors (11). Use Tooling (F)
to tighten connections (10) to a torque of 2.4 N·m
(21lbin).
g01355048

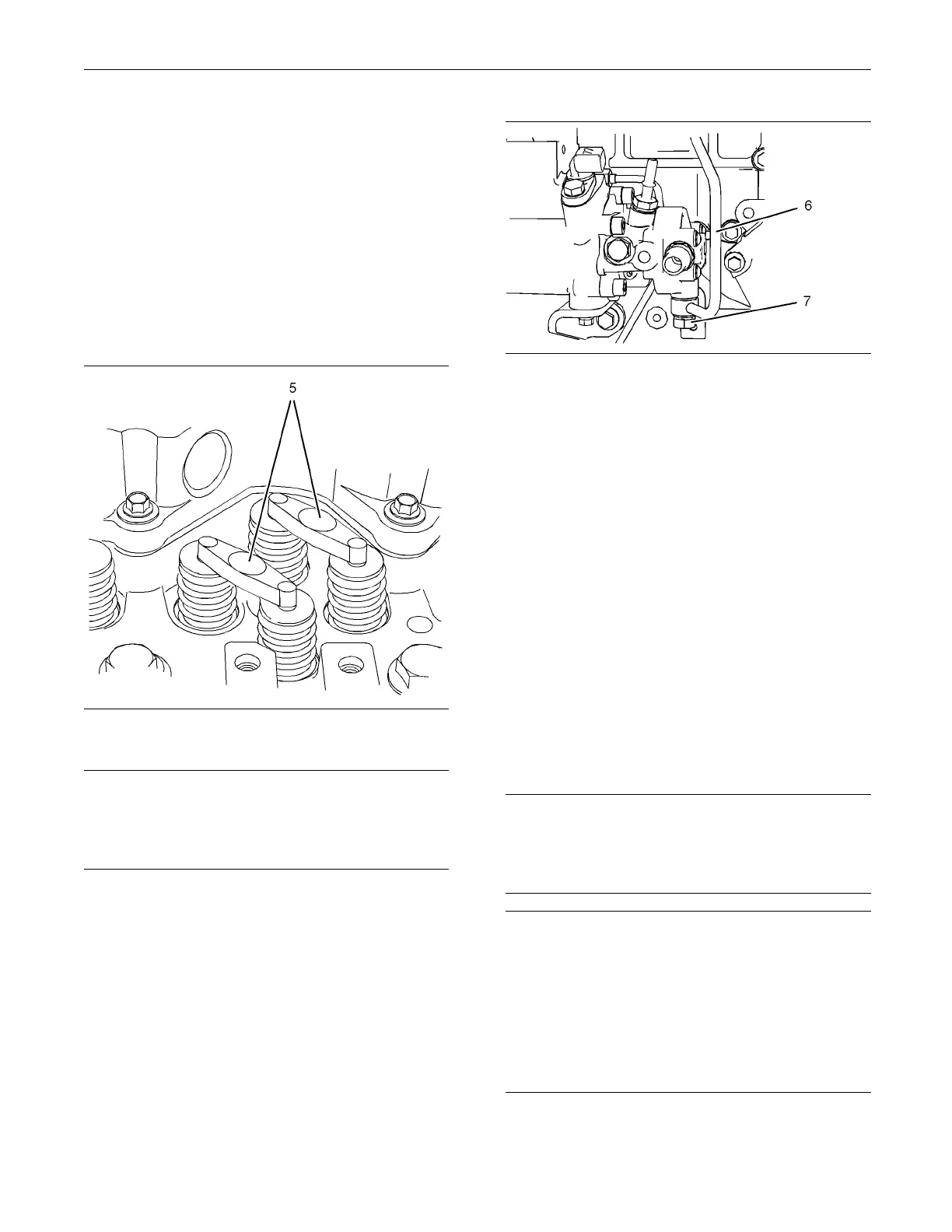

Illustration 60
The electronic unit injector is not shown for clarity.
NOTICE
Failure to ensure that ALL valve bridges are correct-
ly seated onto the valve stems will cause interference
between the pistons and the valves, resulting in dam-
age to the engine.
14. Install the rocker shaft assembly. Refer to
Disassembly and Assembly, “Rocker Shaft -
Install”.
g01247489
Illustration 61
Typical example
15. Tighten banjo bolt (7) for tube assembly (6).
Tighten the banjo bolt to a torque of 21 N·m
(15 lb ft).
16. Restore the fuel supply to the engine.
17. Restore the electrical supply to the engine.
18. Remove the air from the fuel system. Refer to
Operation and Maintenance Manual, “Fuel System
-Prime”formoreinformation.
i02654357
Turbocharger - R emo ve
(Turb och arger Top Mount ed )
Removal Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Dispose of all fluids according to local regulations and
mandates.
Note: Plug and cap all open ports and tube
assemblies.
