8 KENR6932
Disassembly a nd Assembly Section
i02654496
Fuel Filter Base - Remove and
Insta ll
(Secondary Fue
l Filter)
Removal Procedure
NOTICE
Ensure that all adjustments and repairs that are
carried out to t
he fuel system a re performed by
authorised personnel that have the correct train-
ing.
Before begining ANY work on the fuel system, re-
fer to Operation and Maintenance Manual, “Gen-
eral Hazard In
formation and High Pressure Fuel
Lines” for safety information.
Refer to Syst
em Operation, Testing and Adjusting,
“Cleanliness of Fuel System Components” for de-
tailed information on the standards of cleanliness
that must be o
bserved during ALL work on the fu-
el system.
1. Isolate the f
uel supply.

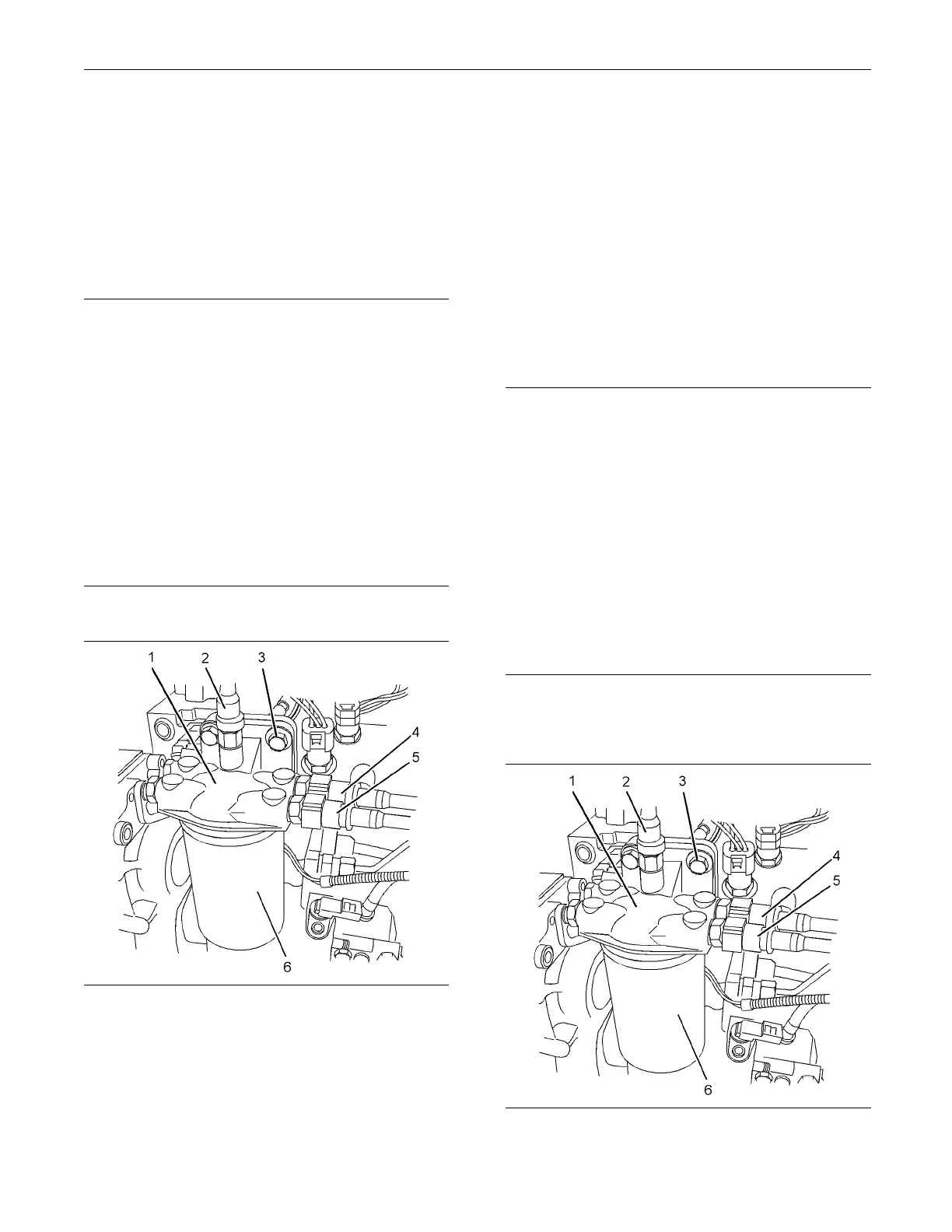

g01334883
Illustration 5
Typical exam p le
2. Make temporary identification marks on plastic
tube assemblies (2), (4) and (5) in order to show
the correct position of the tube assemblies.
3. Place a suitable container below the fuel filter base
in order to catch any fuel that might be spilled.
4. Disconnect plastic tube assemblies (2), (4) and
(5) from fuel fil
ter base (1). Plug the plastic tube
assemblies with new plugs. Cap the ports in the
fuel filter base with new caps.
5. Remove fuel filter (6). Refer to Operation and
Maintenance Manual, “Fuel System Secondary
Filter - Repl
ace”.
6. Remove bolts (3) from fuel filter base (1). Remove
the fuel filte
r base from the mounting bracket.
Note: Do not disassemble the fuel filter base.
Installation Procedure
NOTICE
Ensure that all adjustments and repairs that are
carried out to
the fuel system are performed by
authorised personnel that have the correct train-
ing.
Before begining ANY work on the fuel system, re-
fer to Operation and Maintenance Manual, “Gen-
eral Hazard
Information and High Pressure Fuel
Lines” for safety information.
Refer to Sys
tem O peration, Testing and Adjusting
, “Cleanliness of Fuel System Components” for
detailed information on the standards of cleanli-
ness that mu
st be observed during ALL work on
the fuel system.
1. Ensure that
fuel filter base (1) is clean and free
from damage. If necessary, replace the complete
fuel filter base and filter assembly.
g01334883
Illustration 6
Typical example
