KENR6932 43
Disassembly and Assembly Section
g01335778

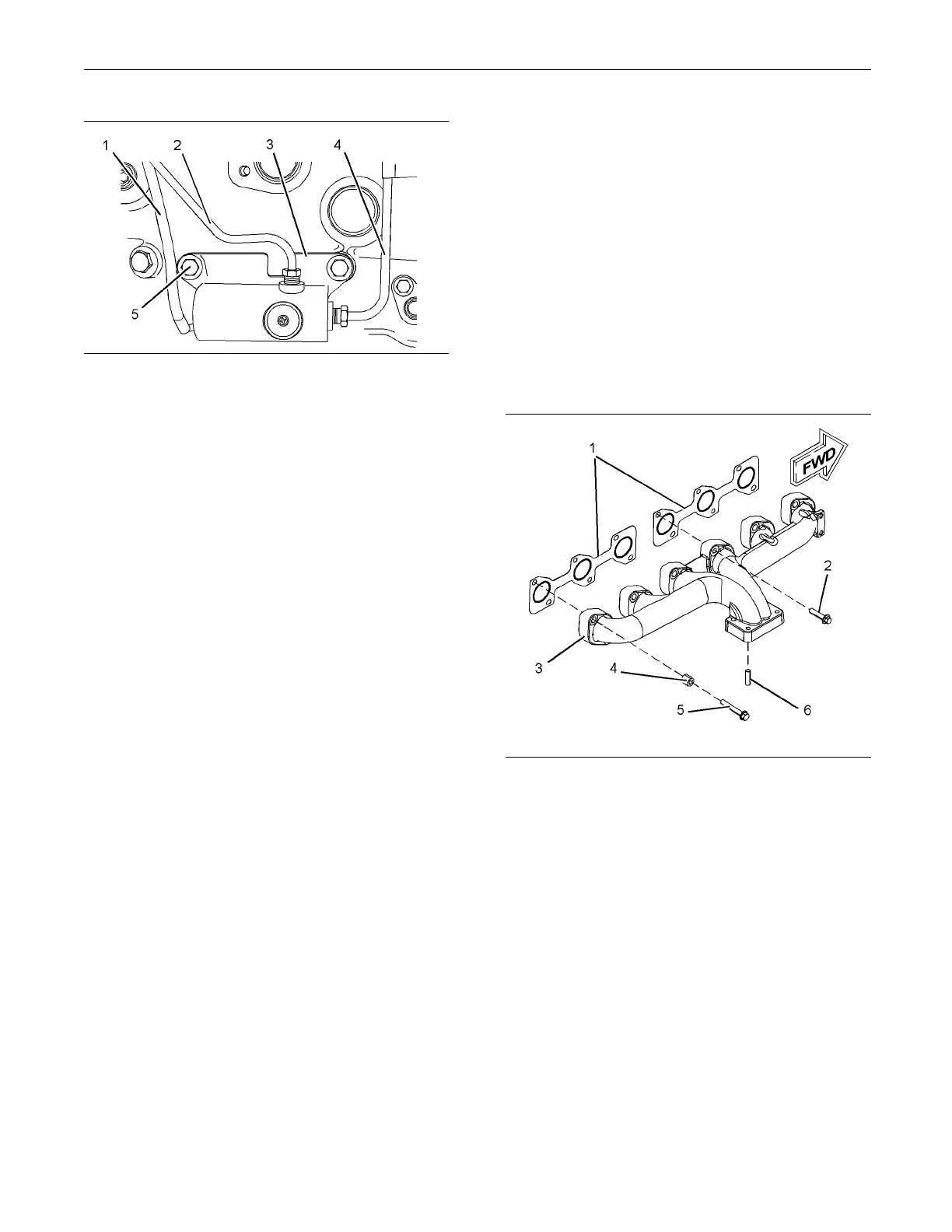

Illustration 75
Typical exam p le
2. Loosely install wastegate solenoid (3) to tube
assembly (2).
3. Loosely install tube assembly (4) to wastegate
solenoid (3).
4. Install bolts (5) to wastegate solenoid (3). Tighten
bolts (5) to a torque of 44 N·m (32.5 lb ft).
5. Tighten tube assemblies (2) and (4) to a torque of
22 N·m (16 lb ft).
6. If tube assembly (4) is secured with tube clips,
tighten the bolts for the tube clips.
TightenM8boltstoatorqueof22N·m(16lbft).
Tighten bolts M10 to a torque of 44 N·m (32.5 lb ft).
7. Follow Steps 7 through 7.c in order to connect
wire lead (1).
a. Install wire lead (1) to tube assembly (2).
b. Connect wire lead (1) to the harness assembly
for the engine.
c. If wire lead (1) is secured with a cable strap,
install a new cable strap.
i02654364
Exhaust Manifold - Remove
and Install
(Side Mounted E
xhaust
Manifold)
Removal Proce
dure
Start By:
a. Remove the turbocharger. Refer to Disassembly
and Assembly, “Turbocharger - Remove”.
g01335788
Illustration 76
