136 KENR6932
Disassembly a nd Assembly Section
i02654413
Engine Oil Pan - R emove
(Cast Iron Oil Pan)
Removal Procedure
Table 61
Required Tools
Tool Part
Number
Part Description
Qty
A
-
T40 Torx Socket
1
Note: In order to remove a cast iron oil pan, the
engine must be removed from the application. Ensure
that the engine lubricating oil is drained. Refer to
Operation and Maintenance Manual, “Engine Oil and
Filter - Change” for the correct procedure.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Dispose of all fl uids according to local regulations and
mandates.
1. The engine should be mounted in a suitable stand
andplacedintheinvertedposition.
2. Disconnect the breather hose from the clip that
secures the hose to the engine oil pan. Position
the breather hose away from the engine oil pan.

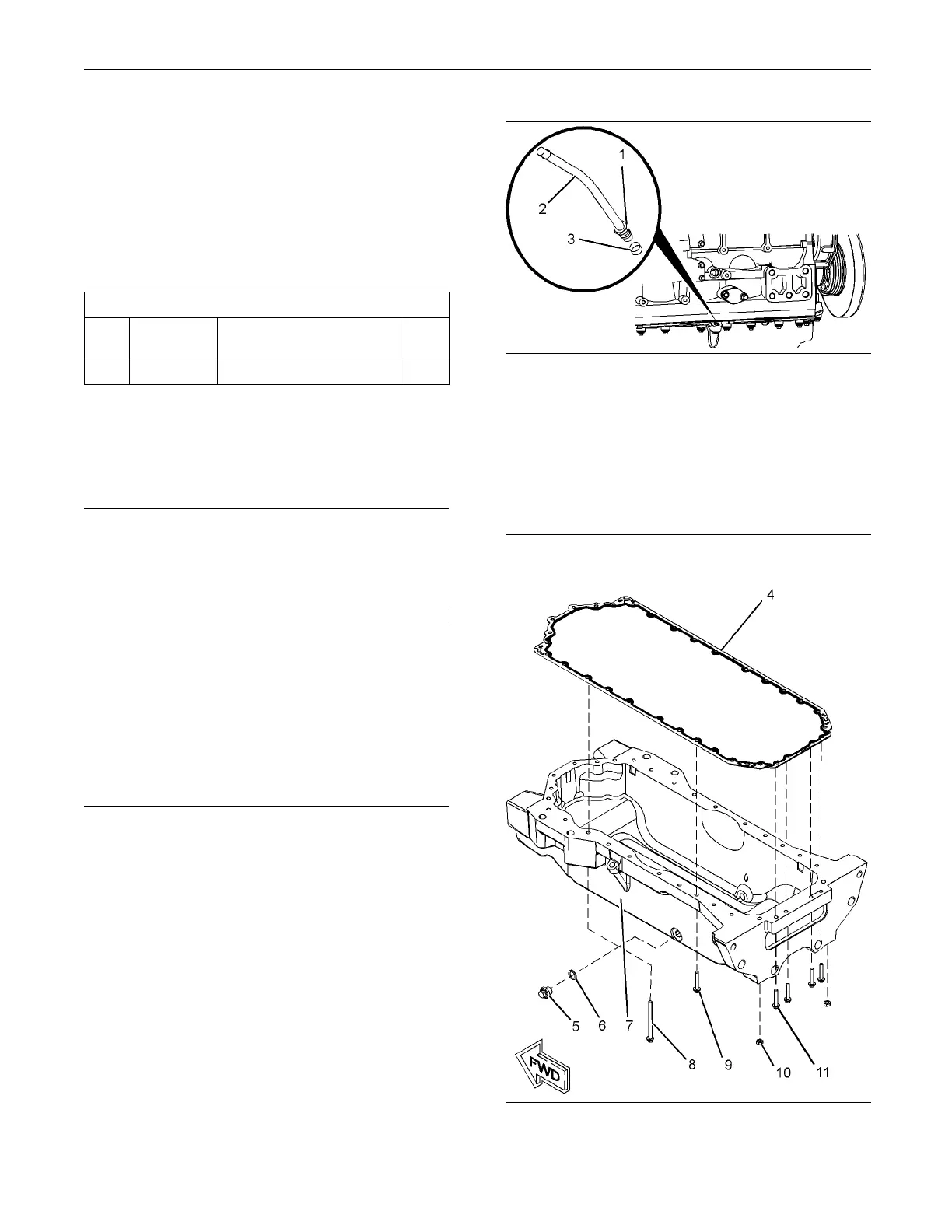

g01340605
Illustration 278
Typical example
3. If necessary, remove the assembly of dipstick
tube. Loosen nut (1) and remove tube assembly
(2). Remove seal (3) from the tube assembly.
Note: Identify the position and orientation of the tube
assembly.
g01340731
Illustration 279
Typical example
To Next Page
