Perkins 1106C Series User Manual

166 KENR6932
Disassembly a nd Assembly Section

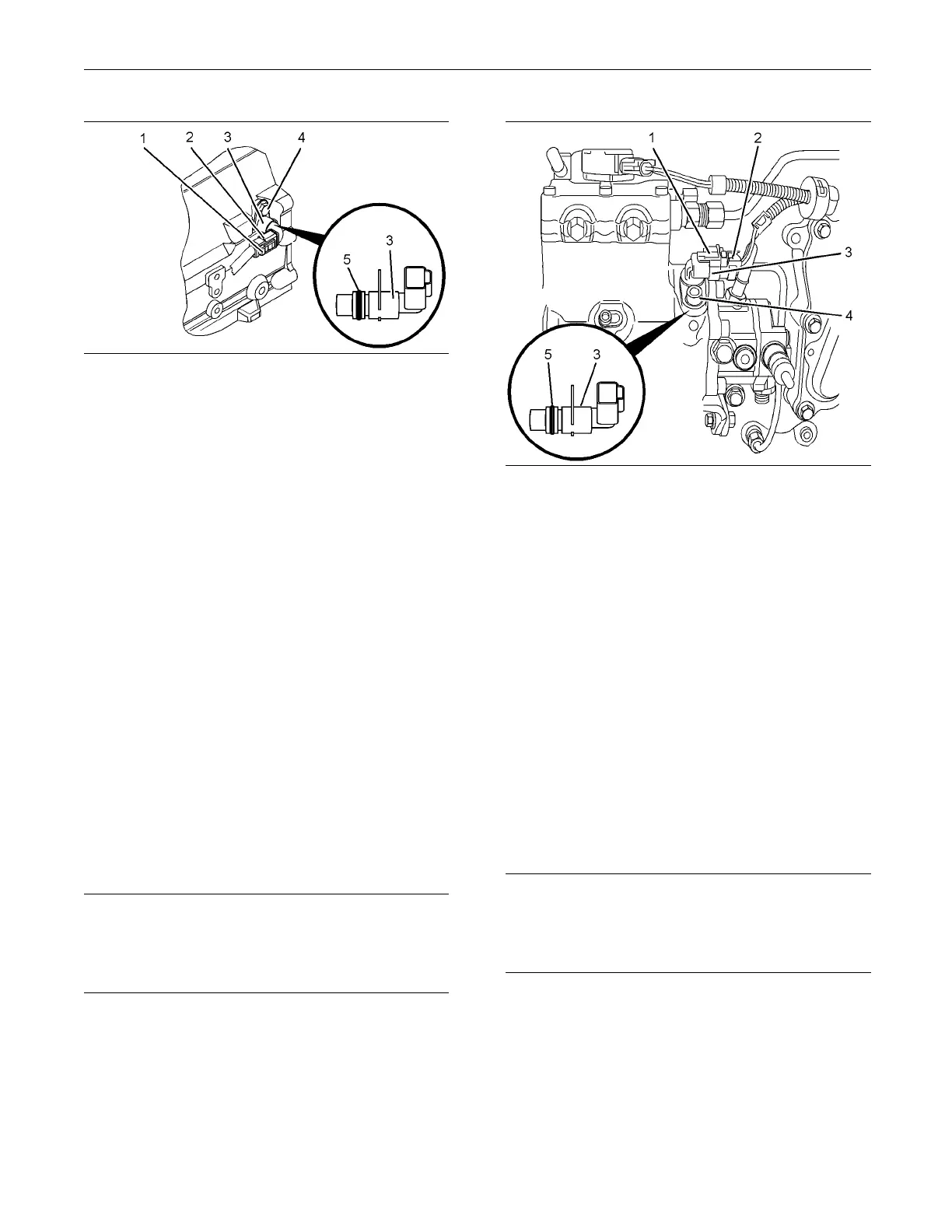

g01341527
Illustration 335
1. Lubricate a new O-ring seal (5) with clean engine
oil. Install the new O-ring seal to the first groove
on position sensor (3).
2. Align the hole in position sensor (3) with the hole
in the cylinder block. Install the position sensor to
the cylinder block.
Note: Do not use bolt (4) to pull the position sensor
into position against the cylinder block.
3. Install bolt (4). Tighten the bolt to a torque of
22 N·m (16 lb ft).
4. Connect harness assembly (2) to position sensor
(3).
5. Slide locking tab (1) into the locked position.
i02654535
Position Sensor (Fuel Injection
Pump)-Rem
ove and Install
Removal Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01341704
Illustration 336
Typical example
1. Slide locking tab (1) into the unlocked position.
2. Disconnect harness assembly (2) from position
sensor (3).
3. Remove bolt (4).
4. Carefully remove position sensor (3) from the fuel
injection pump.
Note: Do not use a lever to remove the position
sensor from the fuel injection pump.
5. Plugtheholeforthepositionsensorinthefuel
injection pump with a new plug.
6. Remove O-ring seal (5) from position sensor (3).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
