KENR6932 105
Disassembly and Assembly Section
i02654402
Crankca se Breather - Remo ve
(Filtered Breather)
Removal Procedure
Table 47
Required Tools
Tool
Part
Number
Part Description Qty
A
-
Breather Tool 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.

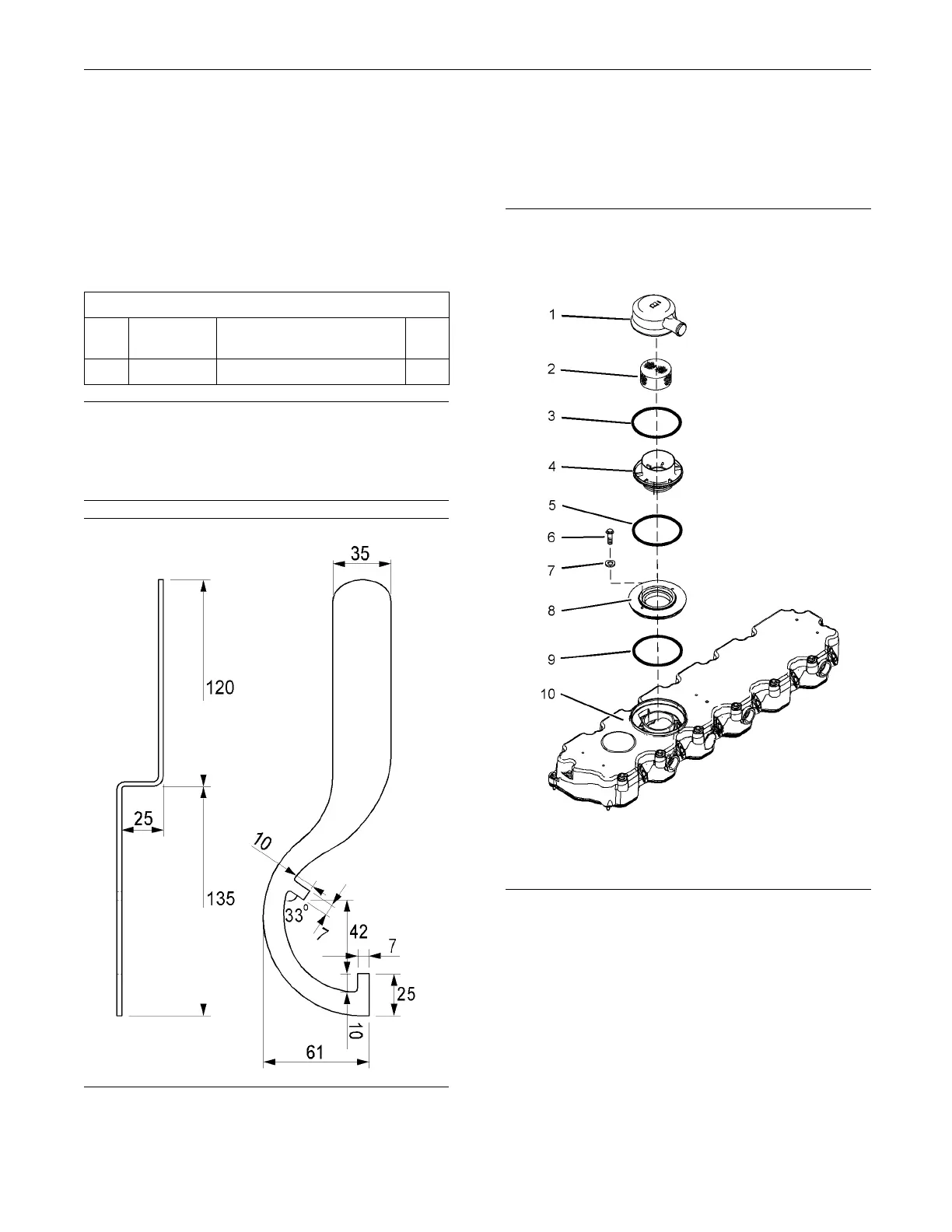

g01339595
Illustration 201
Breather tool
1. To remove the breather body, Tooling (A) must be
used. The tool s
hould be fabricated from 3.1 mm
(1/8 inch) steel stock. The dimensions f or the tool
are given in Illustration 201. All dimensions are
showninmilli
meters.
g01339597
Illustration 202
