72 KENR6932
Disassembly a nd Assembly Section

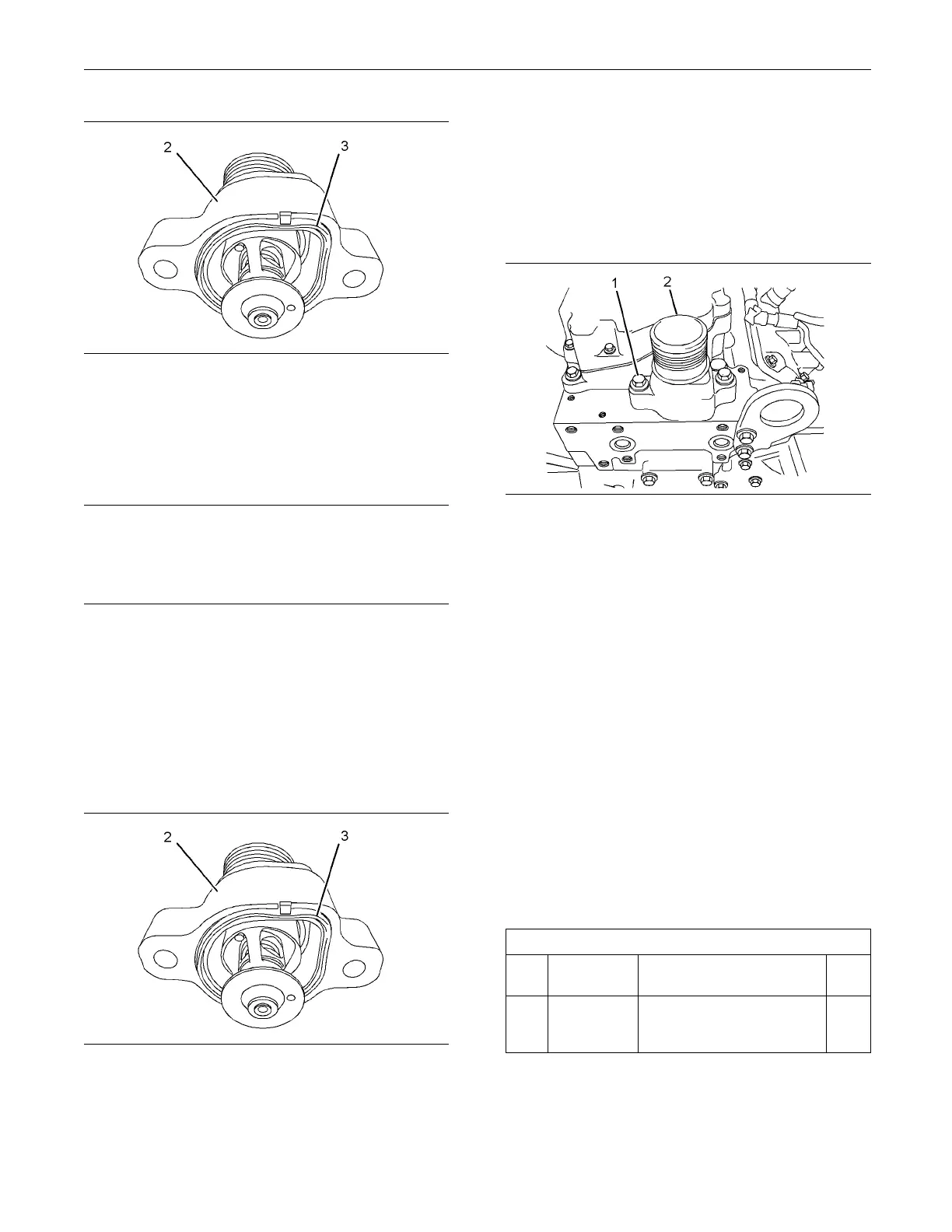

g01336667
Illustration 124
Typical exam p le
5. Remove O-ring seal (3) from water temperature
regulator housing (2).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Ensure that all components of water temperature
regulator ho
using (2) are clean and free of wear or
damage. Check the water temperature regulator
for correct operation. Refer to System Operation,
Testing and
Adjusting, “Water Temperature
Regulator - Test” for the procedure to test the
water temperature regulator. If any components
of the wate
r temperature regulator housing are
worn or damaged, the complete assembly must
be replaced.
g01336667
Illustr
ation 125
Typical exam p le
2. If the original water temperature regulator housing
is installed, position a new O-ring seal (3) into the
groove i
n water temperature regulator housing (2).
A new water temperature regulator housing is
suppliedwitha
new O-ring seal.
3. Install water temperature regulator housing (2) to
the cylinder h
ead.
Note: Ensure the correct orientation of the water
temperature r
egulator housing.
g01336665
Illustration 126
Typical example
4. Install bolts (1). Tighten bolts (1) to a torque of
44 N·m (32.5 lb ft).
5. Connect the upper radiator hose and tighten the
hose clamps.
6. Fill the cooling system to the correct level. Refer
to Operation and Maintenance Manual, “Cooling
System Coolant - Check” and Operation and
Maintenance Manual, “Cooling System Coolant -
Change” for the correct filling procedure.
i02654493
Flywheel -
Remove
Removal Procedure
Table 23
Required T
ools
Tool
Part
Number Part Description Qty
A
-
Guide Stud
(1/2 inch - UNF by 4
inch)
2
Start By:
a. Remove the electric starting motor. Refer to
Disassembly and Assembly, “Electric Starting
Motor - Remove and Install”.
To Next Page
