Perkins 1106C Series User Manual

KENR6932 117
Disassembly and Assembly Section
d. UseTooling(A)toinstallcirclip(5).
e. Connect plug (6) to harness assembly (4).
f. Use a deep socke
t to connect harness (4) to
electronic unit injectors (2). Use Tooling (C) to
tighten connectors (1) to a torque of 2.4 N·m
(21lbin).
g. Install a new cable strap (3) to harness
assembly (4).
Note: Ensure that cable strap to OE specification.
h. Repeat steps 5.a through 5.g for remaining
harness assemblies (4).
End By:
a. Install new fu
el injection lines. Refer to
Disassembly and Assembly, “Fuel Injection Lines
-Install”.
b. Install the valve mechanism cover. Refer to
Disassembly and Assembly, “Valve Mechanism
Cover-Remo
ve and Install”.
i02654541
Rocker S h af
tandPushrod-
Remove
Removal Pro
cedure
Start By:
a. Remove the valve mechanism cover. Refer to
Disassembly and Assembly, “Valve Mechanism
Cover-Rem
ove and Install”.
NOTICE
Keep all parts clean from contaminants.
Contaminan
ts may cause rapid wear and shortened
component life.

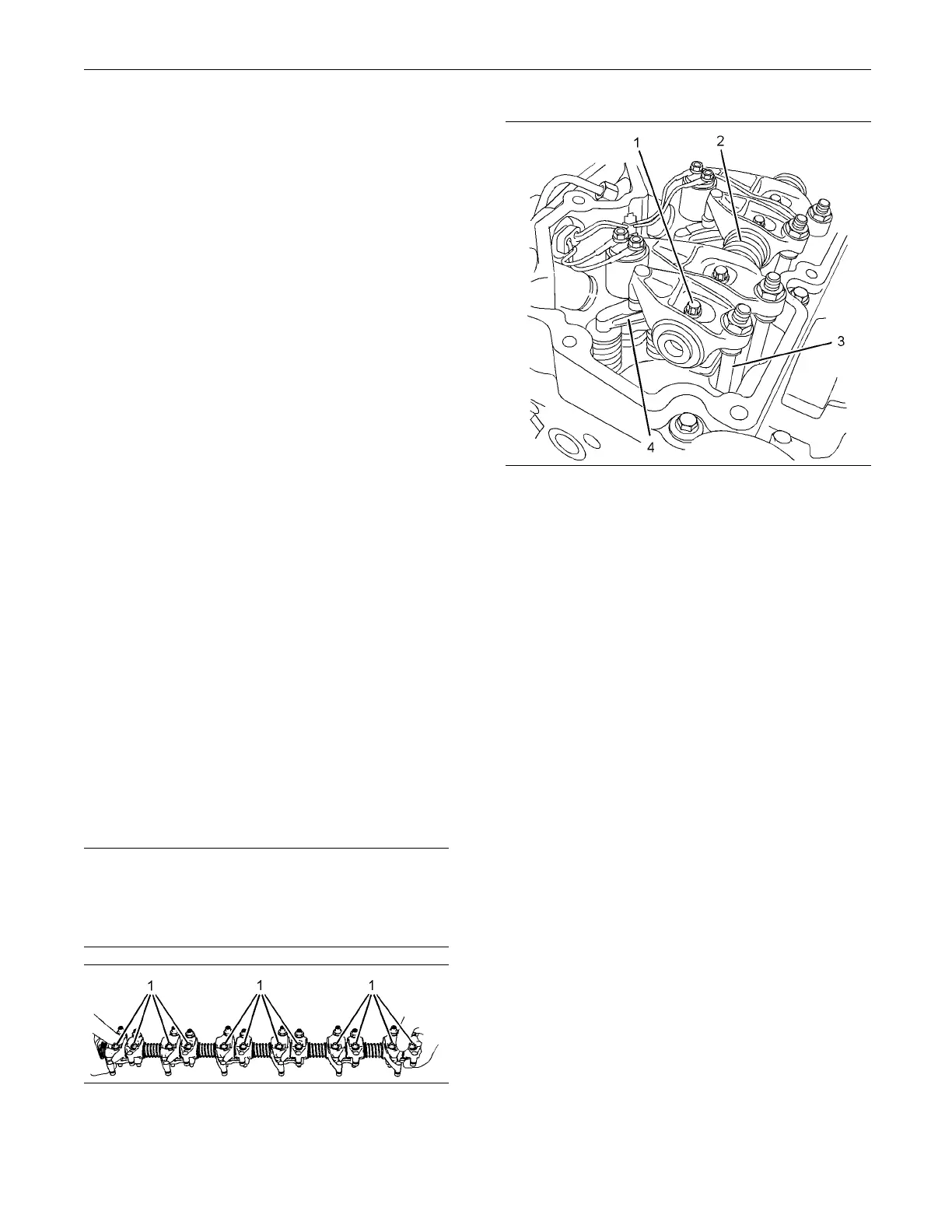

g01340040
Illustration 230
g01340041
Illustration 231
1. Progressively loosen torx screws (1). Begin at
the ends of the rocker shaft assembly and work
toward the center.
Note: To avoid distortion of rocker shaft assembly
(2), each torx screw should be loosened by half a
turn at one time. Repeat the procedure until all torx
screws are loosened.
2. Remove torx screws (1) from rocker shaft
assembly (2).
3. Remove rocker shaft assembly (2) from the
cylinder head.
4. Place an identification mark on pushrods (3) in
order to show the location. Remove the pushrods
from the cylinder head.
Note: Identification will ensure that the pushrods
can be reinstalled in the original positions. Do not
interchange the positions of used pushrods.
5. Make a temporary mark on valve bridges (4) in
order to show the location and the orientation.
Remove the valve bridges from the cylinder head.
Note: Identification will ensure that the valve bridges
can be reinstalled in the original location and the
original orientation. Do not interchange the location
or the orientation of used valve bridges.
