Perkins 1106C Series User Manual

KENR6932 133
Disassembly and Assembly Section

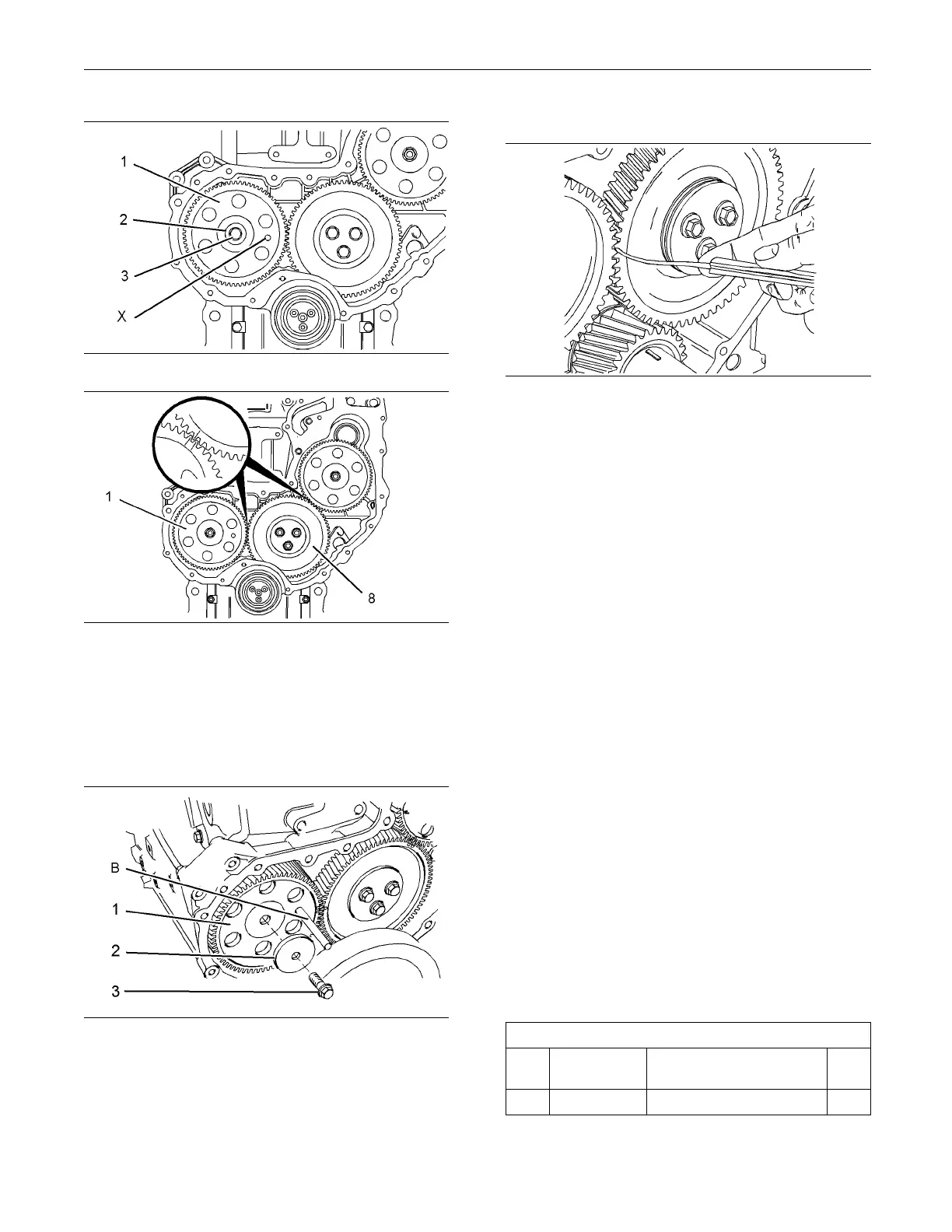

g01340534
Illustration 270
g01340551
Illustration 271
Alignment of timing marks
5. Align the keyway in camshaft gear (1) with the key
in the camshaft. Install camshaft gear onto the
camshaft. Ensure that the timing marks on gears
(1) and (8) are in alignment and that the mesh of
the gears is correct. Refer to Illustration 271.
g01340554
Illustr
ation 272
6. Install Tooling (B) through hole (X) in the camshaft
gear int
o the front housing. Install washer (2) and
bolt (3) to camshaft gear (1).
7. Remove T
ooling (B) and (C). Install plug (4) into
hole (Y) in the cylinder block. Refer to Illustration
269.
8. Tightenbolt(3)toatorqueof95N·m(70lbft).
g01335426
Illustration 273
9. Ensure that the backlash for gears (1) and (8) is
within specified values. Refer to Specifications,
“Gear Group (Front)” for further information.
10. Ensure that the end play for camshaft gear (1) is
within specified values. Refer to Specifications,
“Camshaft” for further information.
11. Lubricate the teeth of the gears with clean engine
oil.
12. Adjust the valve lash. Refer to System Operation,
Testing and Adjusting, “Engine Valve Lash -
Inspect/Adjust”.
End By:
a. Install the front cover. Refer to Disassembly and
Assembly, “Front Cover - Remove and Install”.
b. Install the valve mechanism cover. Refer to
Disassembly and Assembly, “Valve Mechanism
Cover - Remove and Install”.
i02654456
Camshaft Bearings - Remove
and Install
Removal Procedure
Table 60
Required Tools
Tool
Part
Number Part Description Qty
A - Bearing Puller 1
