KENR6932 57
Disassembly and Assembly Section
End By:
a. Install the cylinder head. Refer to Disassembly
and Assembly, “Cylinder Head - Install”.
i02654484
Engine Oil Filter Base -
Remove and Install
Removal Procedure
Table 20
Required Tools
Tool Part Number Part Description
Qty
A
-
Strap Wrench
1
Note: The oil filter can be installed vertically or the oil
filtercanbei
nstalled horizontally.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
NOTICE
Care must be taken to ensure that fluids are contained
during perfo
rmance of inspection, maintenance, test-
ing, adjusting, and repair of the product. Be prepared
to collect the fluid with suitable containers before
opening any
compartment or disassembling any com-
ponent containing fluids.
Dispose of a
ll fluids according to local regulations and
mandates.
1. Place a suitable container below engine oil filter
base (3) in o
rder to catch any oil that might be
spilled.
g01336008

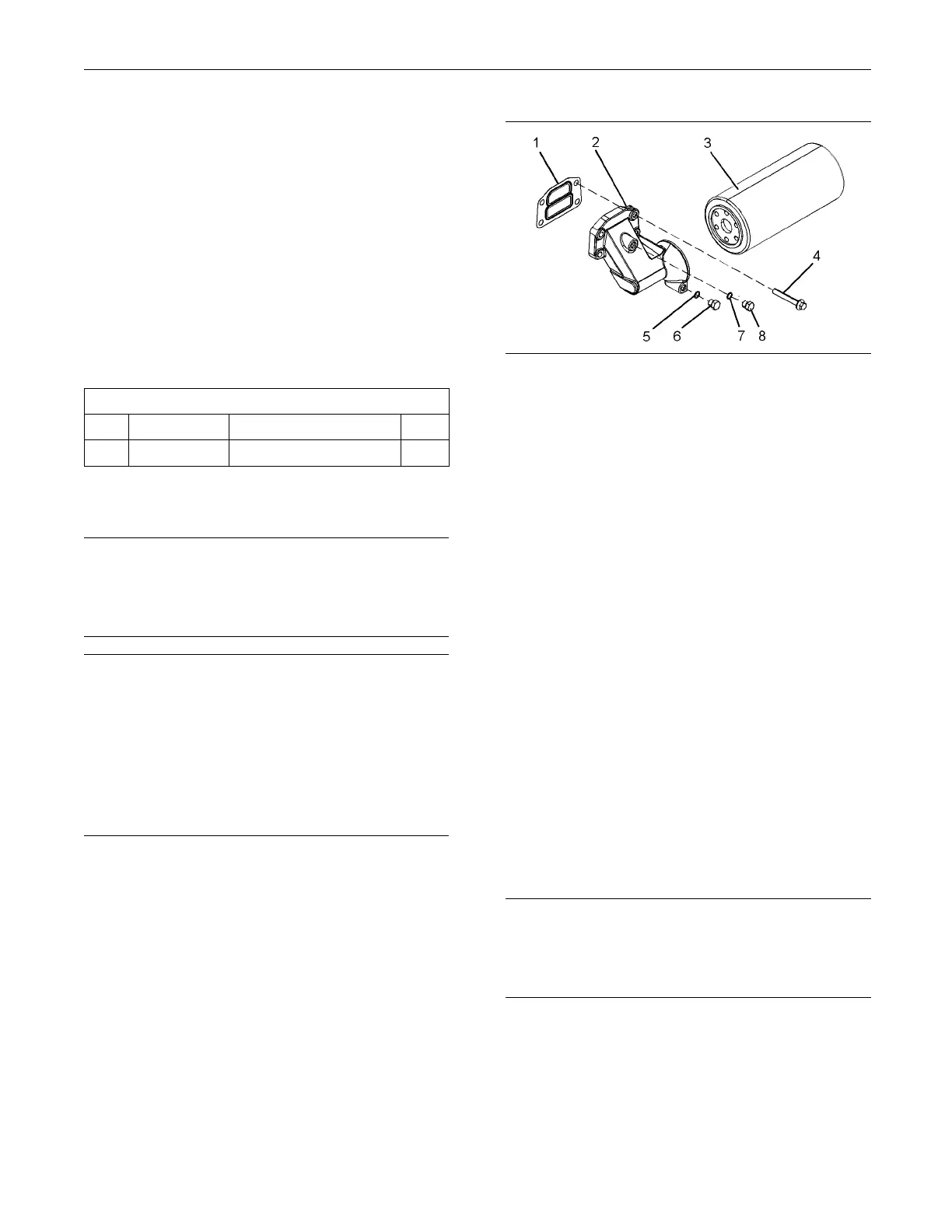

Illustration 97
Typical example
2. If the engine oil fi lter base has a horizontal engine
oil filter, follow Steps 2.a to 2.b in order to drain
the engine oil filter.
a. Remove drain plug (6) from engine oil filter
base (2).
b. Remove O-ring seal (5) from drain plug (6).
3. Use Tooling (A) to remove engine oil filter (3).
Refer to Operation and Maintenance Manual,
“Engine Oil and Filter - Change”.
4. Remove bolts (4). If bolts of different lengths are
installed, identify the correct position of the bolts.
Note: If necessary, remove the spacers and slide the
bracket for the wiring loom to one side.
5. Remove engine oil filter base (2).
6. Remove joint ( 1).
7. If necessary, remove plug (8) from engine oil filter
base (2). Remove O-ring seal (7) from plug (8).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
