Perkins 1106C Series User Manual

44 KENR6932
Disassembly a nd Assembly Section
g01335790

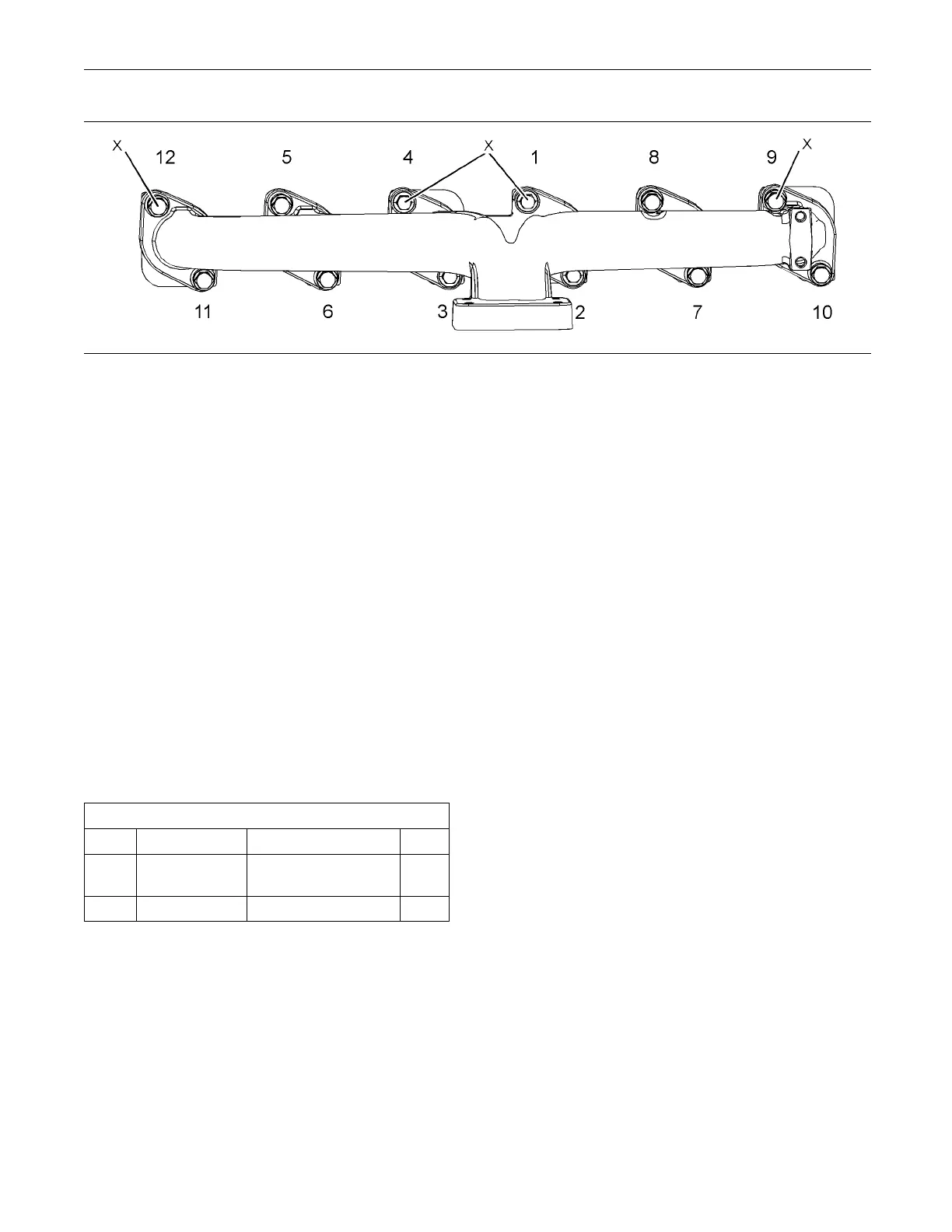

Illustration 77
1. Loosen bolts (2) and (5) in reverse numerical
order. Refer to Illustration 77.
Note: This will help prevent distortion of the exhaust
manifold.
2. Remove center bolts (2) from exhaust manifold
(3). Remove outer bolts (5) and spacers (4) from
exhaust manifold (3).
Note: Support the manifold as the bolts are removed.
3. Remove exhaust manifold (3).
4. Remove exhaust manifold gaskets (1).
5. If necessary, remove studs (6) from exhaust
manifold (3).
Installation Procedure (Side
Mounted Exhaust Manifold)
Table 13
Required Tools
Tool Part Number Part Description
Qty
A
-
Guide Stud
(M10 by 100 mm)
4
B
-
Loctite 57
5
-
