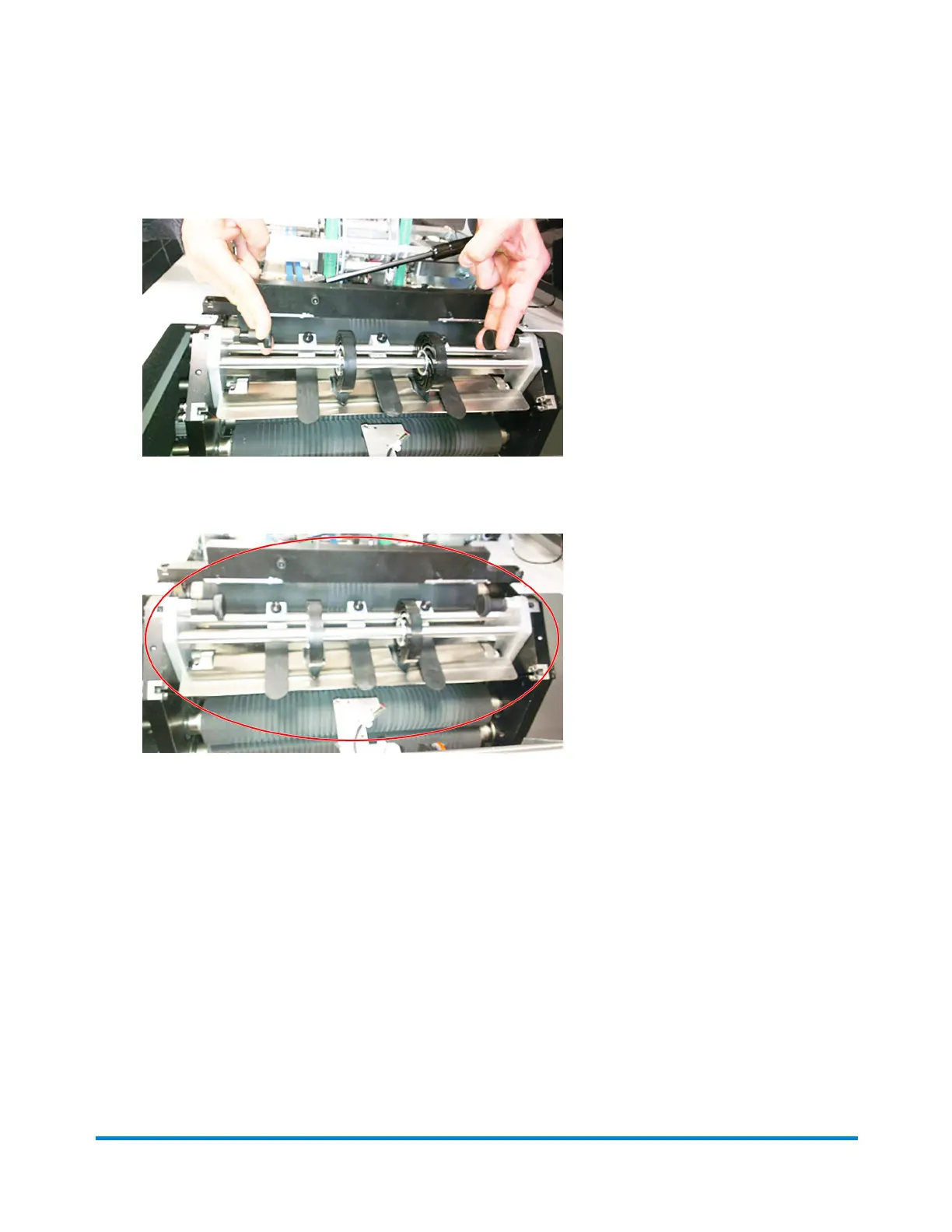

6. Pullbothspringloadedlockingpinhandlesinwards(towardseachother)topositiontheTIMtobe
fullyseatedinfoldplateslot#1.
SpringLoadedLockingPinHandles
7. ReleasethetwolockingpinhandlestolocktheTIMmoduleinplace.
TIMLockedinPosition
Job Changeover Guidelines
Pitney Bowes Epic Select Operator Guide December,2017 Page 168 of 288
