Adjusting the Suction Cups in the Engine
Thesuctioncupsintheengineopenupthethroatoftheenvelopeforinsertion.Theycanbeadjustedto
accommodatedifferentenvelopethroatsizes.
1. Lifttheenginecover.
2. Lifttheupperenginetoaccessthevacuumdeck.
3. Opentheenvelopeandfoldtheflapinside,sothethroatoftheenvelopeisshowing.

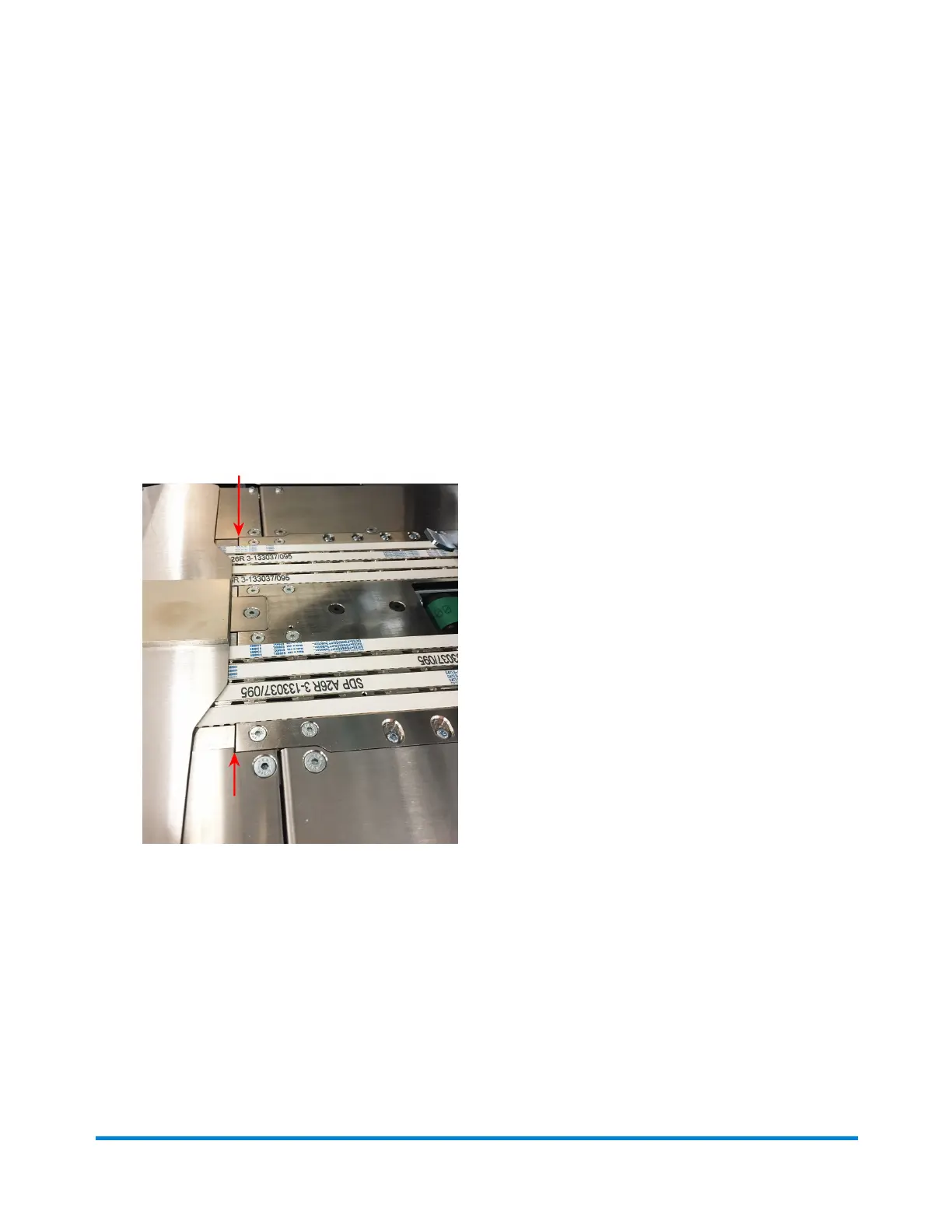

4. Alignthetopoftheenvelope(flapcreaseline)withthedecklinesshownhere.(This is where the
envelope is staged. All adjustments should be made from this position.)
AlignEnvelope
