6 • Specifications
Dimension Value Description
A 1.6 inch (41 mm) Maximum throat depth measured at the center line of executive style envelopes.
B
1.4 inch (38 mm) Maximum throat depth measured at a distance of 5.3 inches (135 mm) centered at
the center line.
C .25 inch (6 mm) Minimum throat depth within a 4 inch (100 mm) area centered at the center line.
D
.08 inch (2 mm) Minimum distance from top of window to the envelope throat measured at a distance
of 5.3 inches (135 mm) centered at the center line.
A
C
5.3 in. (135 mm)
Centered at Center Line
Center Line
B
D
4 in. (100 mm)
Centered at Center Line

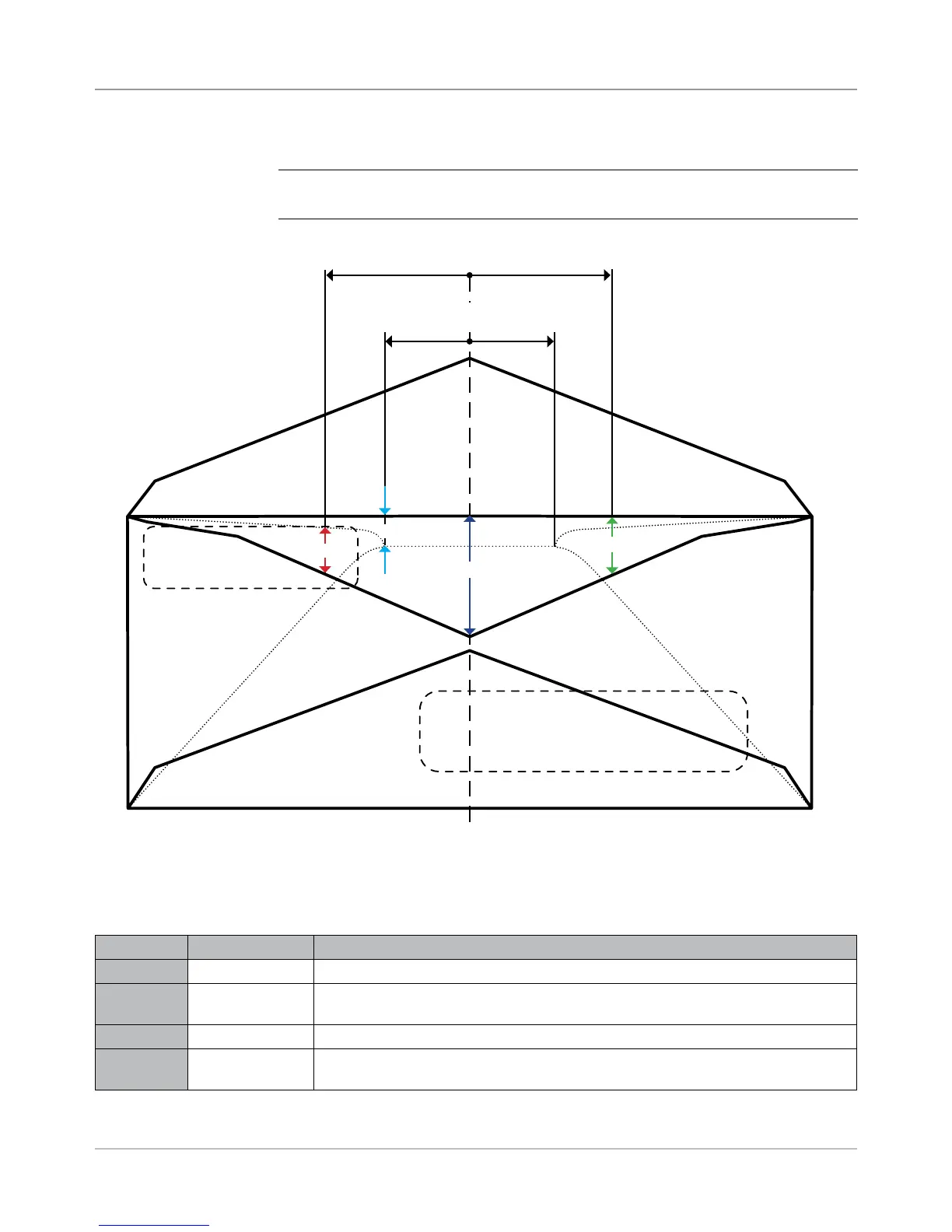

Envelope Throat Definitions
NOTE: Diagram is not drawn to scale.
