Pitney Bowes Relay 5000 - OMR Placement Specifications for HCSF (New Scan Kit F790250 - Ladder Orientation); OMR Print and Placement Specifications

8-32 SV63136 Rev. A
8 • Scanning
OMR Print and
Placement
Specifications

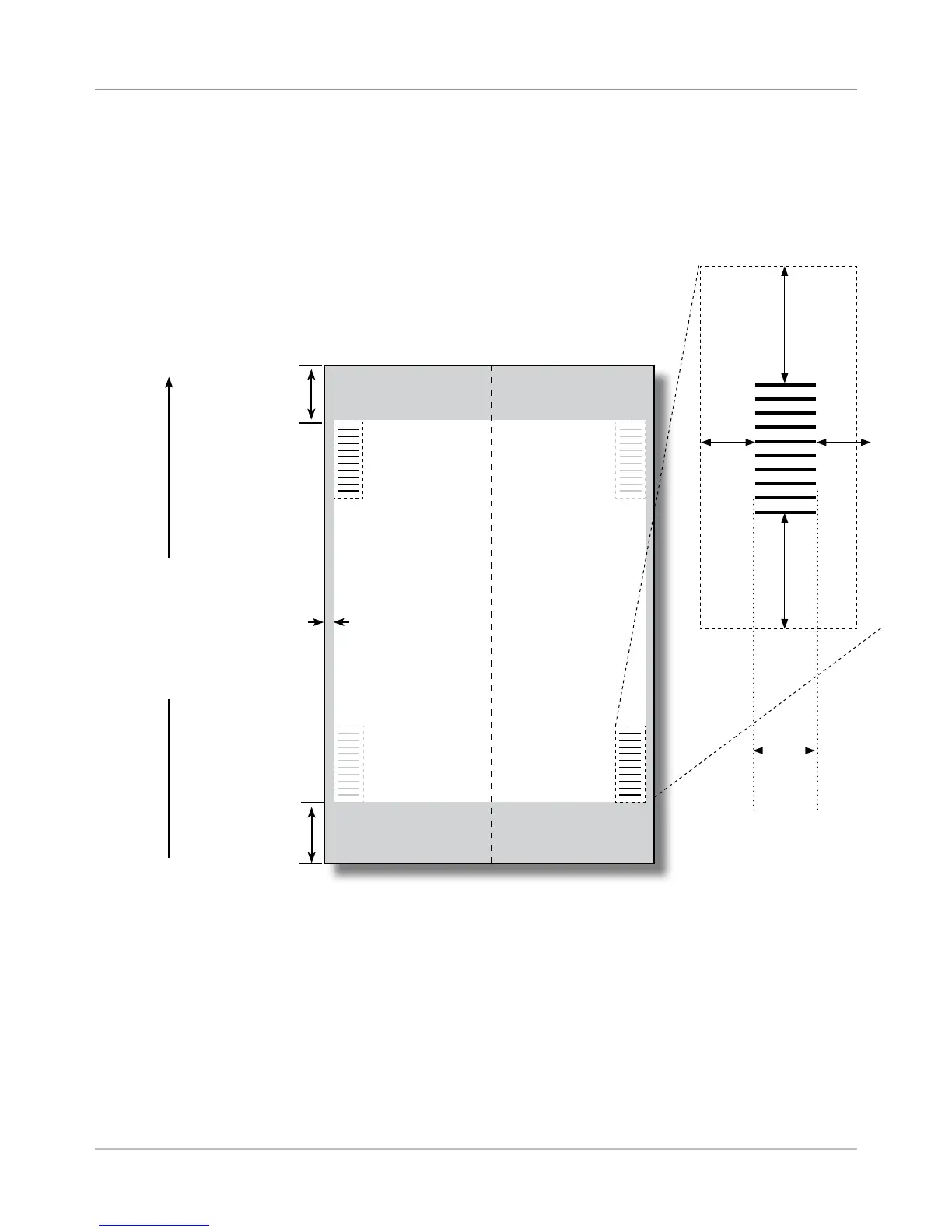

Direction of Feed
Clear Zone
Leading Edge
11 mm min.
to clear zone
(dotted line),
20 mm min.
to first mark
Trailing Edge
3 mm min.
3
mm
min.
9 mm
min.
9 mm
min.
3
mm
min.
Diagram is not to scale
10
mm
min.
11 mm min.
to clear zone
(dotted line),
20 mm min.
to last mark*
Requires:
F7HD Scanner
F790250 Scanner Install Kit
*At the time of this writing, we recommend that
any scan codes within 45 mm of document trail
edge be validated first to avoid scanning issues.
Scan codes containing BOC as a Controlling
function should be located within the first 1/3rd of
the lead edge of the document.
OMR Placement Specifications for HCSF
(New Scan Kit F790250 - Ladder Orientation)
