8 • Scanning
Barcode Print
and Placement
Specifications

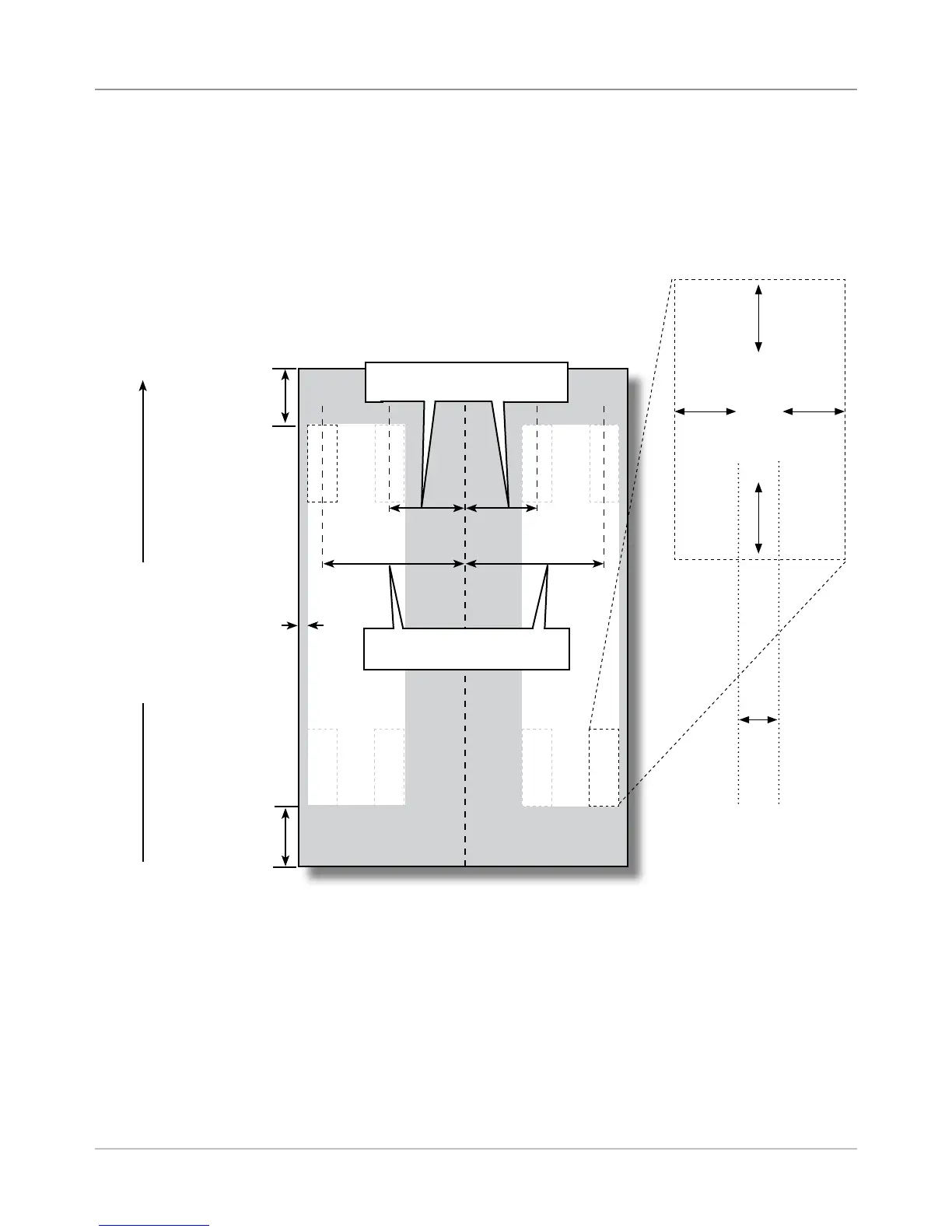

1D Barcode Placement Specifications for Feeder Tower
(Ladder Orientation)
Direction of Feed
Clear Zone
Leading Edge
Trailing Edge
3 mm min.
3
mm
min.
3 mm
min.
3 mm
min.
3
mm
min.
Diagram is not to scale
Feeder Tower: 125 mm max.
Feeder Tower: 20 mm min.
*12345*
*12345*
*12345*
*12345* *12345*
*12345*
*12345*
*12345*
*12345*
16
point
font
min.
17 mm min.
to clear zone
(dotted line),
20 mm min.
to barcode
17 mm min.
to clear zone
(dotted line),
20 mm min.
to barcode
Requires:
F7TB Tower Scanning
