Pitney Bowes Relay 5000 - Barcode Print and Placement Specifications; 1 D Barcode Print and Placement Specifications for HCSF

8-36 SV63136 Rev. A
8 • Scanning
Direction of Feed
Clear Zone
2 mm min.
3
mm
min.
3 mm
min.
3 mm
min.
3
mm
min.
HCSF: 105 mm max.
HCSF: 32 mm min.
12 Characters
(3of9) or
18 characters
(I2of5) max.
*12345*
*12345*
*12345*
*12345*
*12345*
17 mm min.
to clear zone
(dotted line),
20 mm min. to
barcode
17 mm min.
to clear zone
(dotted line),
20 mm min. to
barcode*
* At the time of this writing, we recommend a minimum of
45 mm between trail edge and barcode.

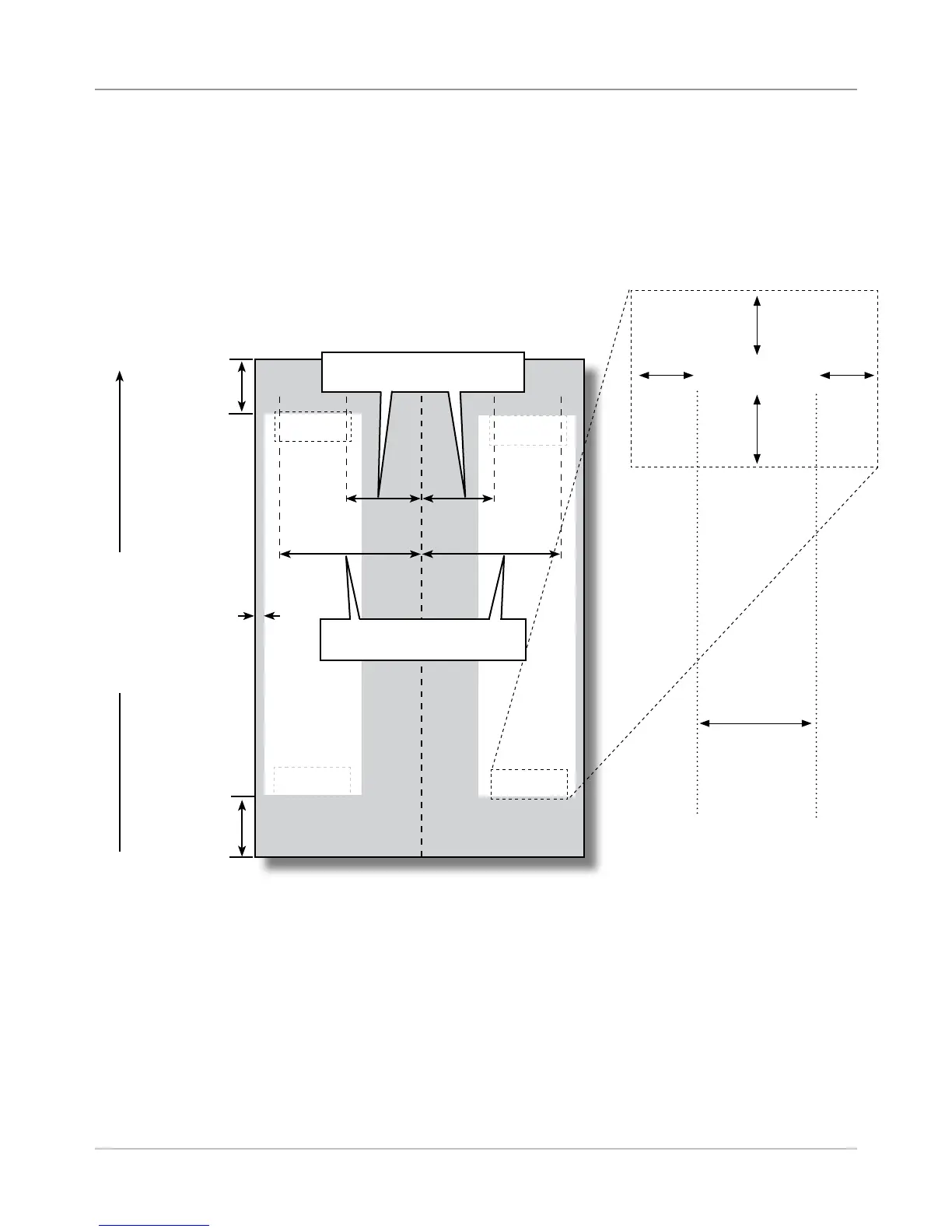

1D Barcode Print and Placement Specifications for HCSF
(Original Scan Kit F790050 - Picket Fence Orientation)
Diagram is not to scale
Barcode Print
and Placement
Specifications
Leading Edge
Trailing Edge
Requires:
F7FB Scanner
F790050 Scanner Install Kit
