Pitney Bowes Relay 5000 - Barcode Print and Placement Specifications; 1 D Barcode Placement Specifications for HCSF

SV63136 Rev. A
8-37
Scanning • 8
Barcode Print
and Placement
Specifications
Direction of Feed
Clear Zone
Leading Edge
Trailing Edge
3 mm min.
3
mm
min.
3 mm
min.
3 mm
min.
3
mm
min.

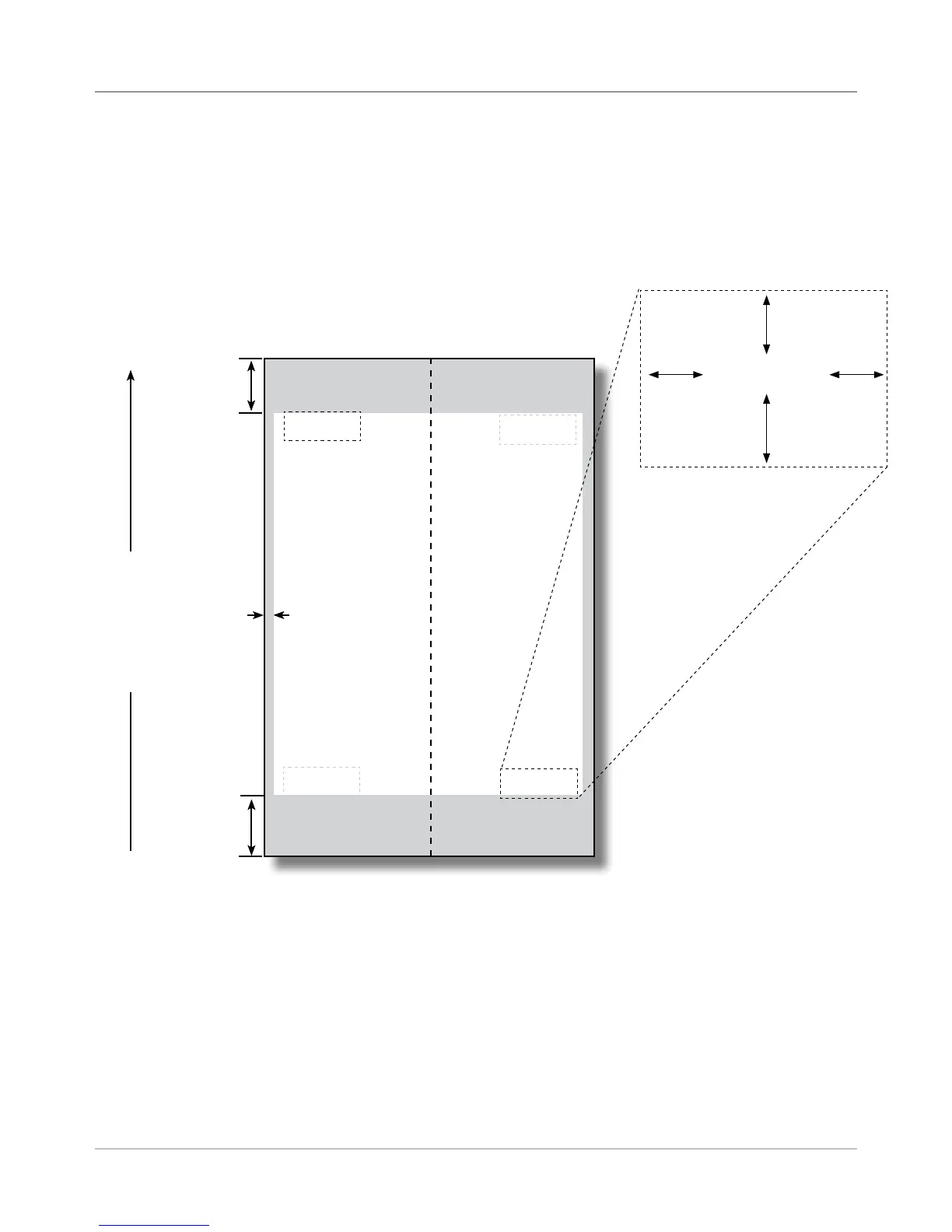

Diagram is not to scale
1D Barcode Placement Specifications for HCSF
(New Scan Kit F790250 - Picket Fence Orientation)
*12345*
*12345*
*12345*
*12345*
*12345*
17 mm min.
to clear
zone (dot-
ted line),
20 mm min.
to barcode
17 mm min.
to clear
zone (dotted
line), 20 mm
min. to bar-
code*
Requires:
F7MB Scanner
F790250 Scanner Install Kit
*At the time of this writing, we recommend that
any barcodes within 45 mm of document trail
edge be validated first to avoid scanning issues.
Applications containing narrow barcodes may not
scan reliably with the barcode in this location.
Scan codes containing BOC as a Controlling
function should be located within the first 1/3rd of
the lead edge of the document.
