Adjusting the
Scan Heads
for Picket
Orientation
Marks
To adjust the scan heads:
1. Fold one of the sheets to be scanned
in half vertically (side with mark facing
up.)

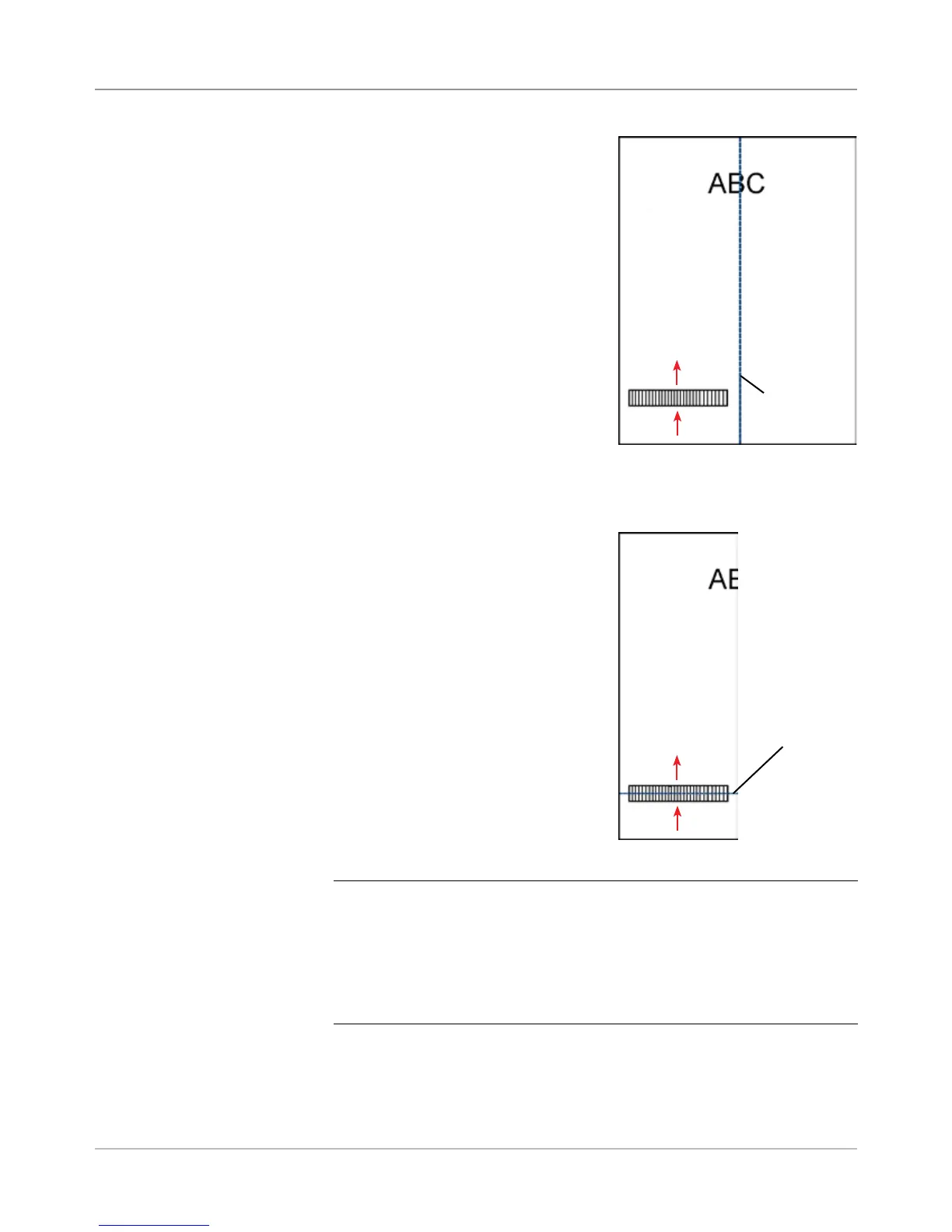

2. Draw two arrows, one at the top of the
mark, and one at the bottom of the
mark, pointing towards the top of the
sheet.
Vertical
fold
3. Fold the sheet horizontally, so the bar-
code appears on either side of the fold
line.
4. Open the Main Transport Deck Cover.
Use the ruler to measure the distance
from the center of the sheet (lined up
at 0 on the ruler) to the center of the
marks.
5. Refer to the loading instructions to
determine:
• The scan head location to be used
for this sheet (left or right)
• If the sheet will be loaded top or
bottom first.
6. Open the HCSF Tower cover.
TIPS:
• Remove the left feeder Trays from the feeder tower to allow the HCSF
tower cover to open freely.
• If you have two HCSFs on your system, the rst HCSF Tower will
prevent the second tower (farthest) from opening fully. For best
results, be sure you have proper lighting when adjusting the scan
head in the second tower.
Horizontal
fold
