Perform Width Adjustments (Outer Envelope Openers)
1. Loosen the thumbscrews on the top of the outer envelope openers.
Adjusting
the Envelope
Openers
(continued)

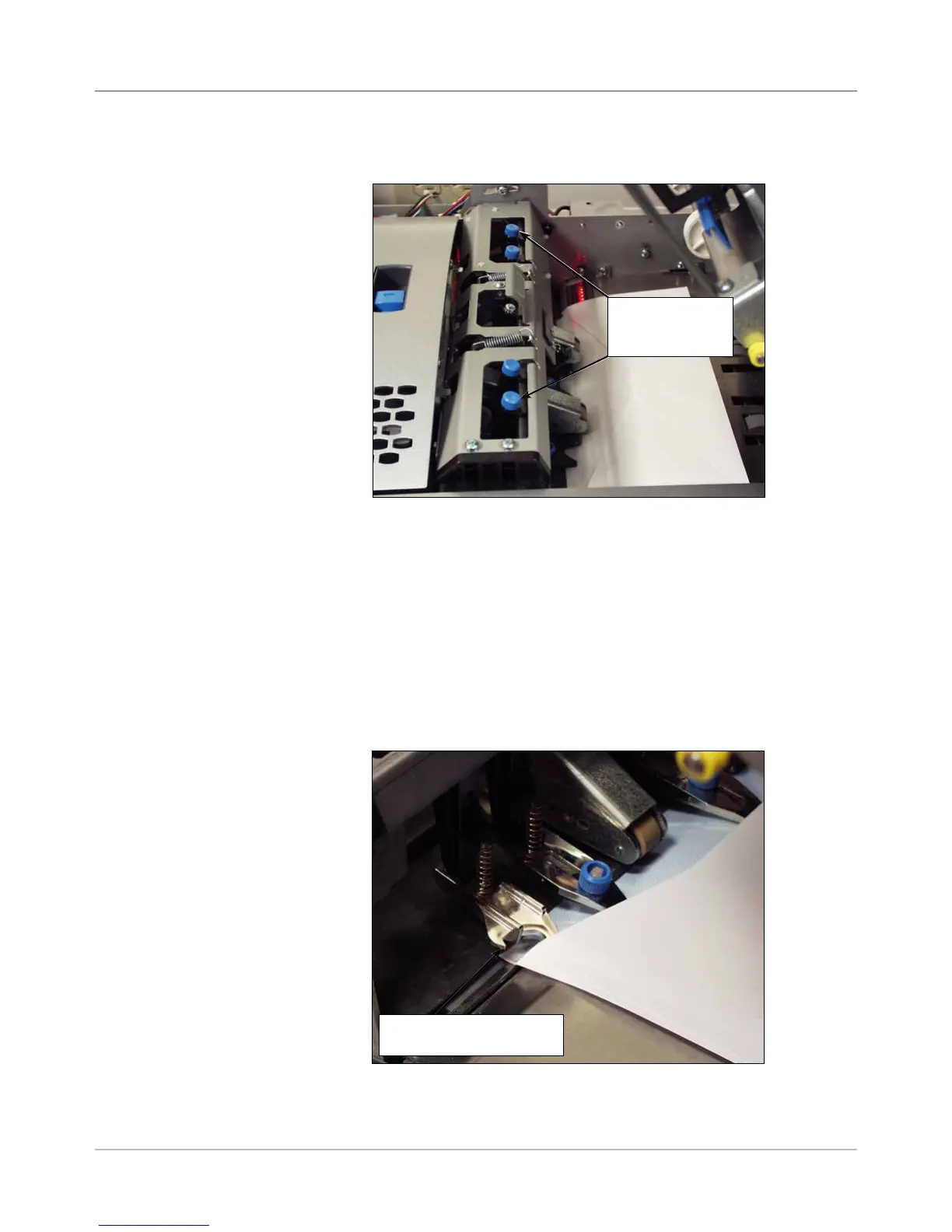

Figure 3.9.2: Outer Envelope Opener Locations
Outer Envelope
Opener
Thumbscrews
2. Slide the openers as required to align the pointers with the outer edges
of the envelope.
• Push down on the thumbscrews to ensure the outer envelope
openers align with the envelope.
• If using small envelopes (less than 7.5 inches / 194mm wide), move
the outer envelope openers out and away from the outer edges of
the envelope.
• If using windowed envelopes, ensure the outer envelope openers do
not touch the edges of the window.
3. Tighten the thumbscrew on the top of the outer envelope openers.
Align pointer with outer
edge of envelope
Figure 3.9.3: Aligning the Outer Envelope Opener
