Configure Tab: Overview
The Configure tab allows the user to view the Logical and Physical layouts of the storage and vPGs in the Acuity software
platform. The Logical, Physical, and Unlicensed views are available, and Acuity vPGs as well as N5 arrays and vSTAC
vPGs are supported in this section.
NOTE:
The Unlicensed view will not be a common utility on Acuity configurations.

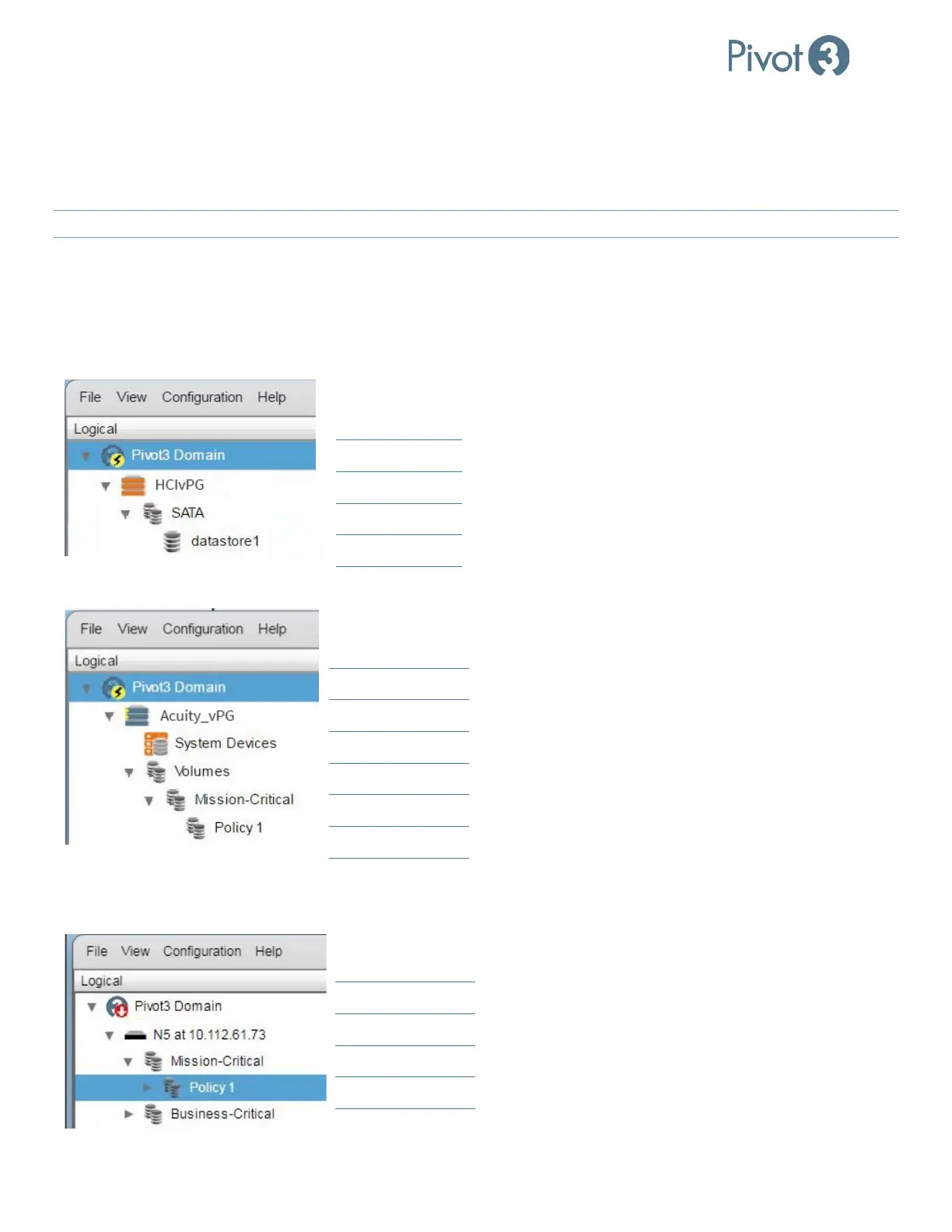

Logical Tree View
The Logical tree view covers vSTAC vPGs as well as Acuity-based vPGs. vSTAC-based vPGs do not contain the same Quality
of Service options as Acuity vPGs do, and therefore are not displayed in the same structure.
Logical Structure – vSTAC vPGs
Domain Level
vPG Level
Tier Level
Volume Level
Logical Structure – Acuity vPGs
Domain Level
vPG Level
Tier Level
Volume Level
Criticality Level
Policy Level
Logical Structure – N5 Storage Arrays
Domain Level
Node Level
Criticality Level
Policy Level
