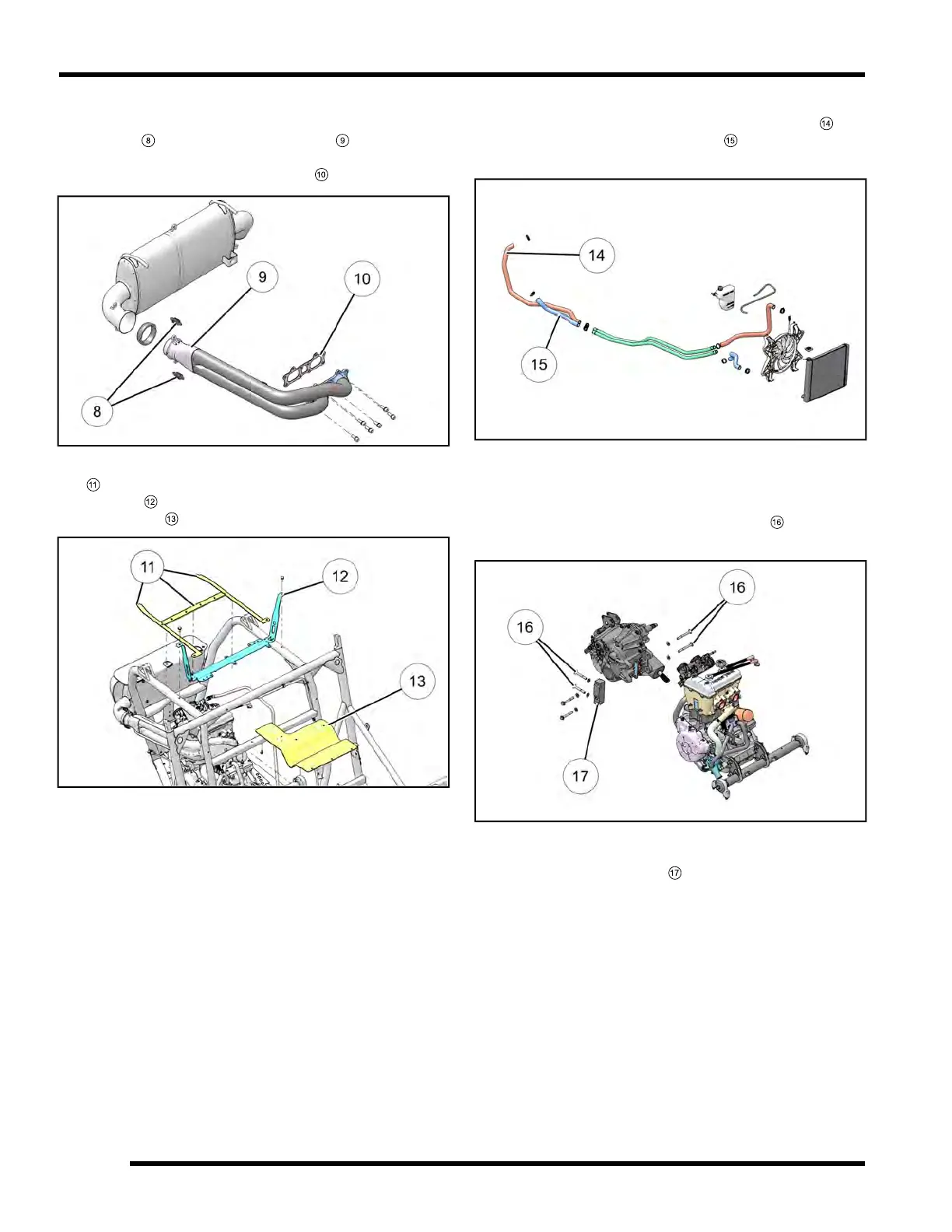

19. Remove the six fasteners that attach the exhaust
head pipe to the engine. Remove the two exhaust
springs
8
that attach the head pipe
9
to the muffler.
Remove exhaust head pipe towards the front of the
vehicle. Discard exhaust gaskets
10
.
20. Remove the four fasteners retaining the box support
11
and the two fasteners retaining the box support
bracket
12
. Remove the push rivet that attaches the
heat shield
13
to the rear cross member.
21. Place a suitable drain pan under the vehicle and
remove the thermostat housing coolant hose
14
and
the water pump coolant hose
15
from the engine.
Dispose of engine coolant properly.
22. Use an overhead or portable engine hoist and
suitable engine straps to secure engine in its current
position.
23. Remove the four rear mounting bolts
16
that attach
the rear of the engine to the transmission.
NOTE: It is not necessary to remove the bolts
that retain the bracket
17
to the transmission.
ENGINE / COOLING SYSTEM
