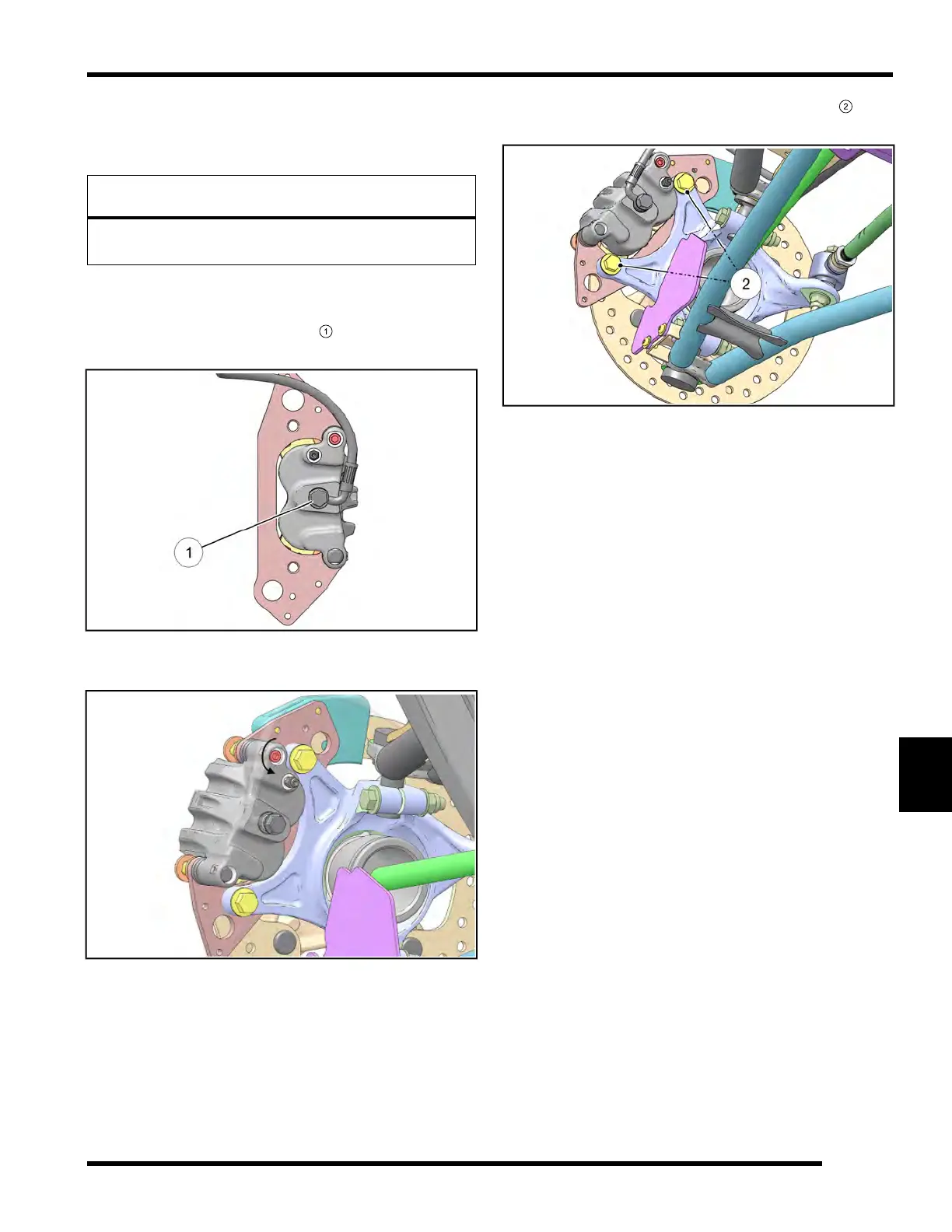

Caliper Removal
1. Elevate and safely support the front of the vehicle.
2. Remove the four wheel nuts and the front wheel.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch brake
fluid when removing the line
1
. Remove brake line
from caliper.
5. Loosen brake pad adjustment set screw 2-3 turns to
allow brake pad removal after the caliper is removed.
6. Remove the two caliper mounting bolts
2
and
remove the caliper assembly from the front hub.
