9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

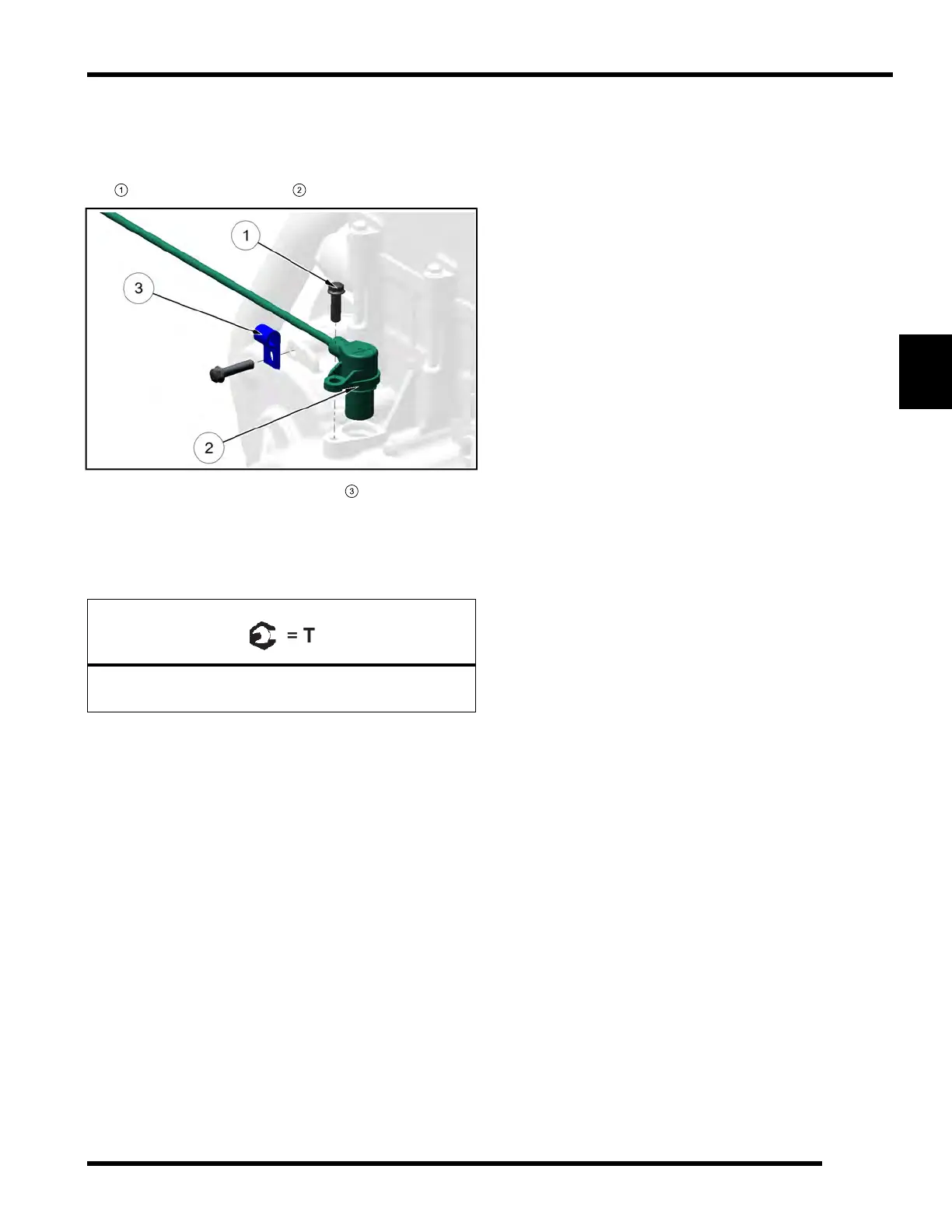

CPS Replacement
1. If not done already; disconnect the CPS harness
connector (see Chapter 4 – CPS Test, page 4.32).
2. Using an 8mm socket, remove the CPS retaining bolt
1
and remove the sensor
2
from the stator cover.
3. Unclip the wire harness retainer
3
and remove the
CPS harness from the retainer to allow replacement.
4. Install new sensor using a light coating of oil on the
O-ring to aid installation.
5. Torque the CPS retaining bolt to specification.
CPS Retaining Bolt:
9 ft-lb (12 Nm)
