Polaris RZR XP 1000 Service Manual

7.34
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

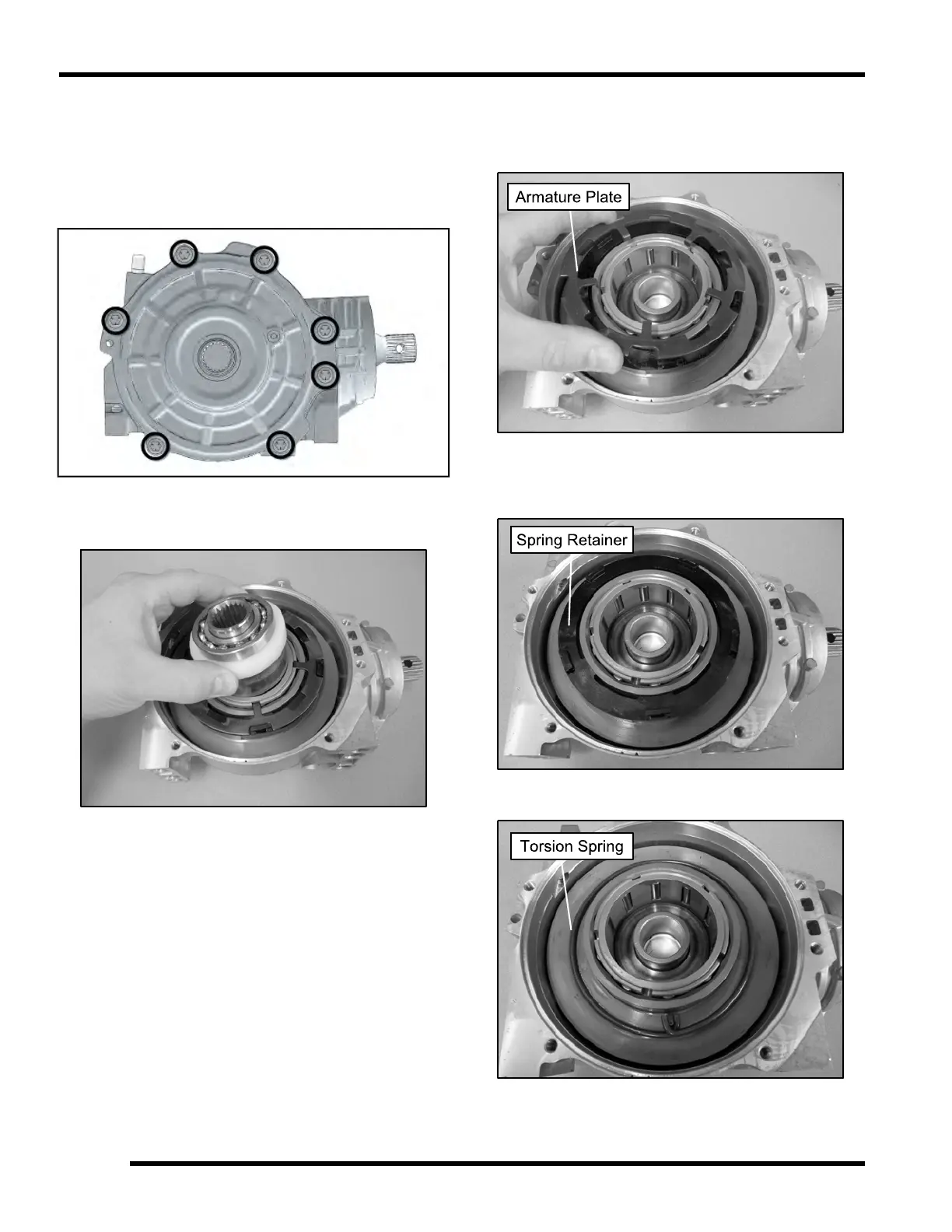

Front Gearcase Disassembly / Inspection
1. Drain and properly dispose of gearcase fluid.
Remove any metal particles from the drain plug
magnet.
2. Remove the seven cover screws and remove the
cover plate assembly.
3. Remove the LH output hub assembly from the clutch
housing or outer cover plate assembly.
NOTE: Nylon spacer is non-serviceable and
should not be removed.
4. Remove and inspect the armature plate. Refer to
AWD Diagnosis, page 7.32 for detailed inspection
process.
5. Remove the torsion spring retainer and torsion
spring from the top of the ring gear.
FINAL DRIVE
