Polaris RZR XP 1000 Service Manual

6.18
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.
Planetary Differential Disassembly (Turf
Mode Models Only)
NOTE: If the gearcase is completely assembled,
perform the Transmission Disassembly, page 6.32
procedure.

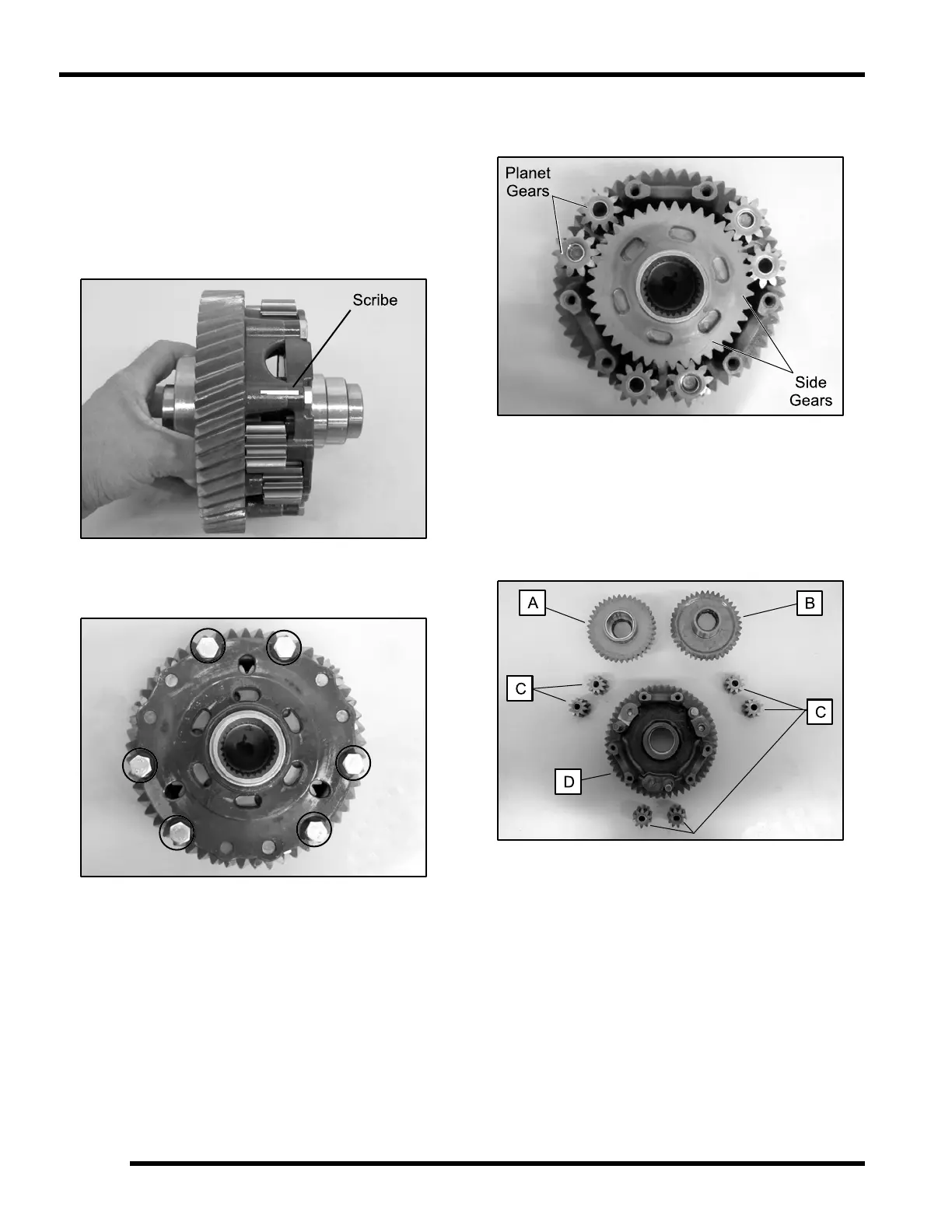

1. Use a scribe to mark the differential cover and ring
gear prior to disassembly.
2. Remove the six screws retaining the differential
cover and remove the cover.
3. Remove the six planet gears and each side gear
assembly from the ring gear.
4. Inspect the female side gear (A), male side gear (B),
planet gears (C) and ring gear (D). Replace
components or bushings as needed. Bushing
replacement can be performed on all necessary
differential components. If bushing replacement is
required, proceed to Planetary Differential Bushing
Replacement (Turf Mode Models Only), page 6.19.
TRANSMISSION
