9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.
8. Remove the dash assembly from the vehicle.
NOTE: The lower dash is also held by clips. Pull
the dash straight out to disengage the clips..

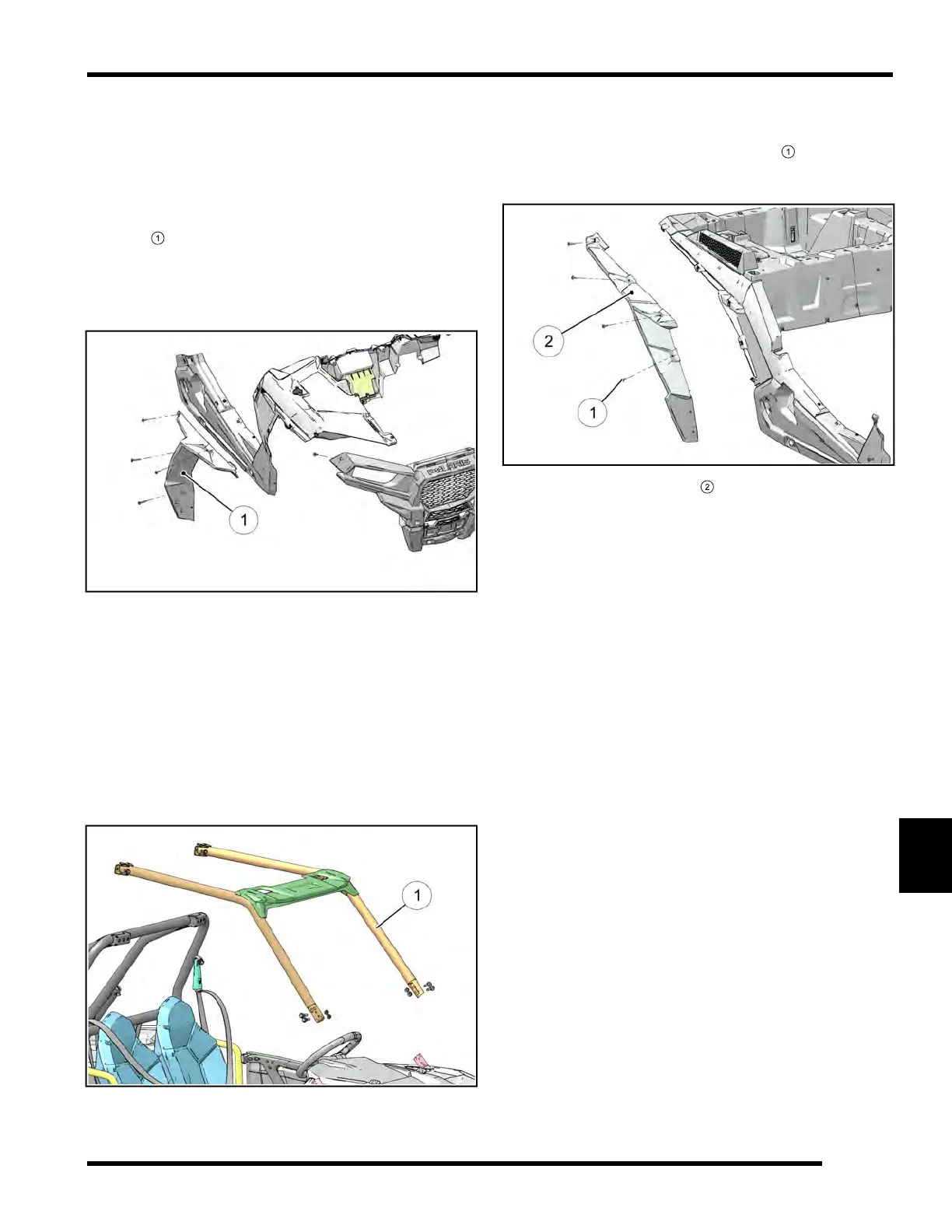

Front Fender Flair Removal
9. Remove the six T40 Torx screws and remove fender
flairs
from the dash assembly.
NOTE: Two of the screws will be longer than the
others. Note this for reassembly.
Front Body
10. Remove the hood, upper dash and fender flairs as
previously stated.
11. Remove the two T-40 Torx screw that were hidden
beneath the fender flair (one on the outside of the
fender and one on the inside).
12. Remove the front portion of the cab frame assembly.
Refer to appropriate Cab Frame Assembly XP /
High Lifter, page 10.3 procedure for assembly torque
specifications.
13. Remove the front fender.
Rear Fender / Fender Flare Removal XP /
High Lifter
1. Remove the four T27 Torx screws
. Remove the
three plastic rivets on the lower side of the rear
fender flare.
2. Remove the fender flare
from the vehicle.
3. Remove the four plastic rivets (one of them hidden
on the inside) retaining the rear fender.
4. Remove the one T-40 Torx screw on the top rear of
the fender.
5. Remove it from the vehicle.
BODY / FRAME
