Planetary Differential Bushing Replacement
(Turf Mode Models Only)
NOTE: If the differential is completely assembled,
perform the “Planetary Differential Disassembly”
procedure.
Ring Gear Bushing Replacement
1. Press the old bushing out of the ring gear.
2. Thoroughly clean the bore of the ring gear and check
for any unwanted burs.
3. Press the new bushing into the ring gear housing.

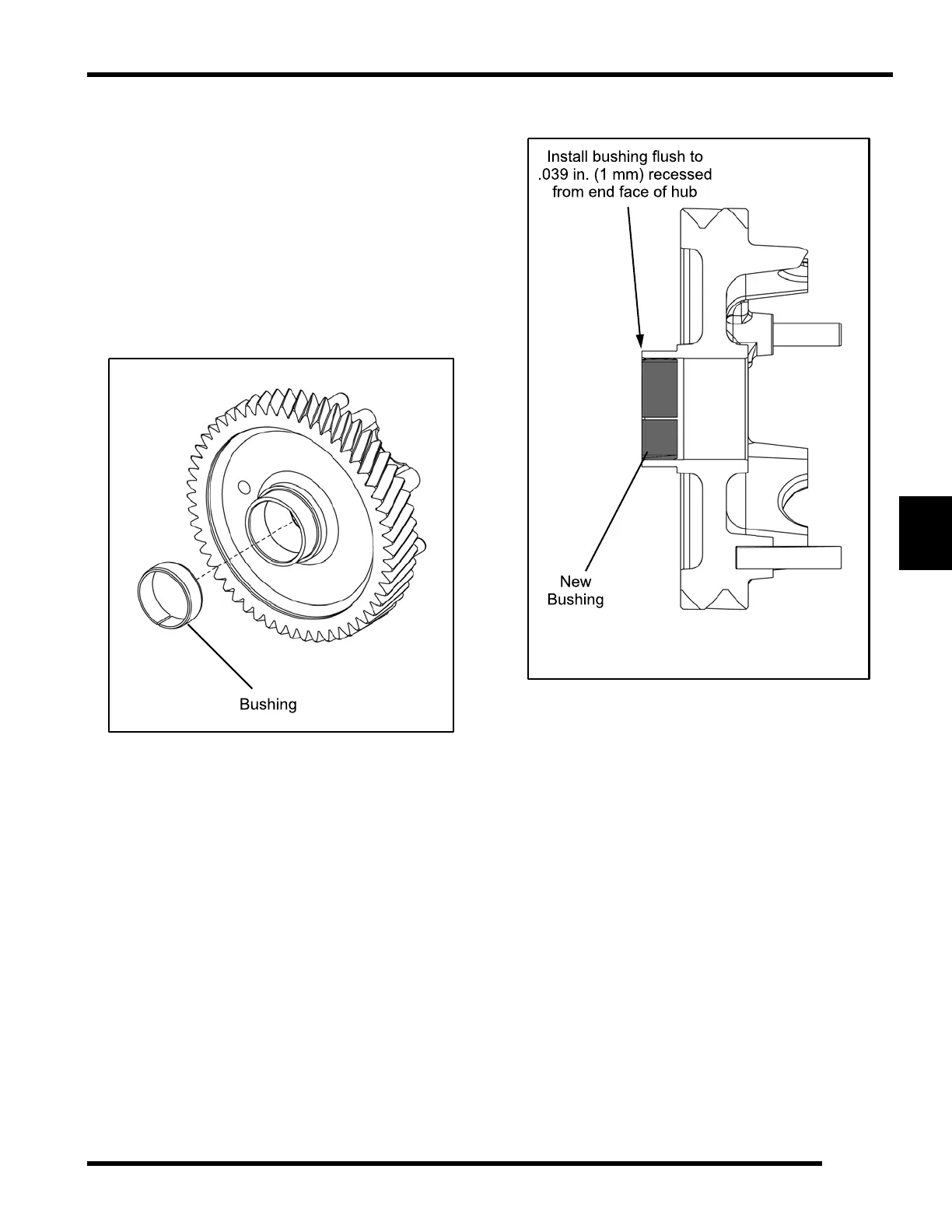

4. Install the bushing to the specified depth as shown.
Planet Gear Bushing Replacement
5. Press the old bushing out of the planet gear.
6. Thoroughly clean the bore of the planet gear and
check for any unwanted burs.
