Rocker Panels, Rear Console and Floor XP
4

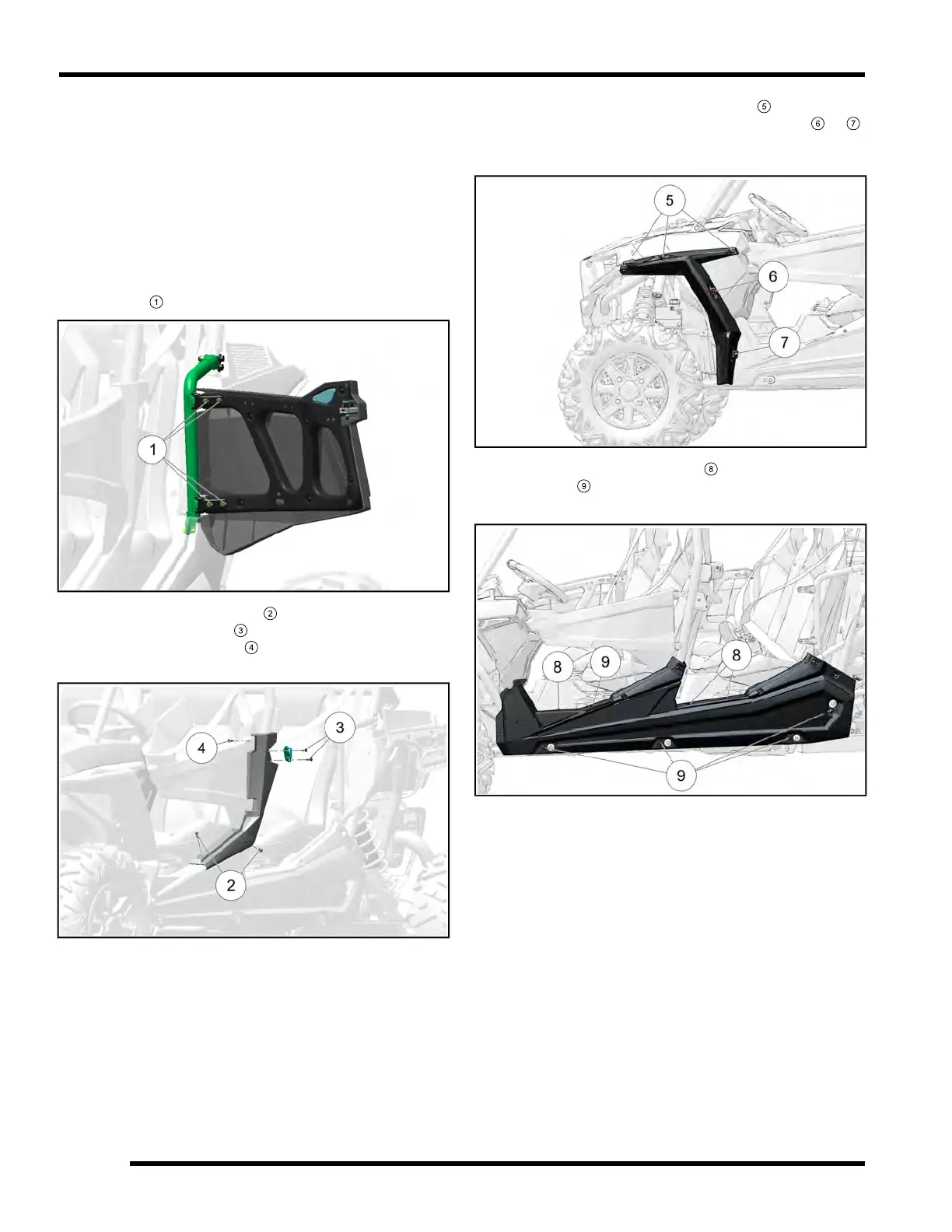

Rocker Panel Removal
1. Remove rear fender flare. (See Chapter 10 – Rear
Fender Flare / Rear Fender Removal XP 4, page
10.22).
2. Remove rear fender. (See Chapter 10 – Rear Fender
Flare / Rear Fender Removal XP 4, page 10.22).
3. Remove the four Torx T40 rear door mounting
fasteners
1
and remove door.
4. Remove two push rivets
2
. Remove two Torx T40
door striker fasteners
3
and remove striker. Remove
one Torx T27 fastener
4
retaining the b-pillar cover
and remove cover.
5. Remove three Torx T40 fasteners
5
from top of
fender flare. Remove two torx T40 fasteners
6
&
7
.
Note length and location of fasteners. Remove fender
flare.
6. Remove three push rivets
8
and five Torx T40
fasteners
9
retaining the rocker panel. Remove
rocker panel from the vehicle.
Console and Lower Floor Removal
1. Remove seats and rocker panels (see Chapter 10 –
Floor / Rocker Panels XP 4, page 10.16).
