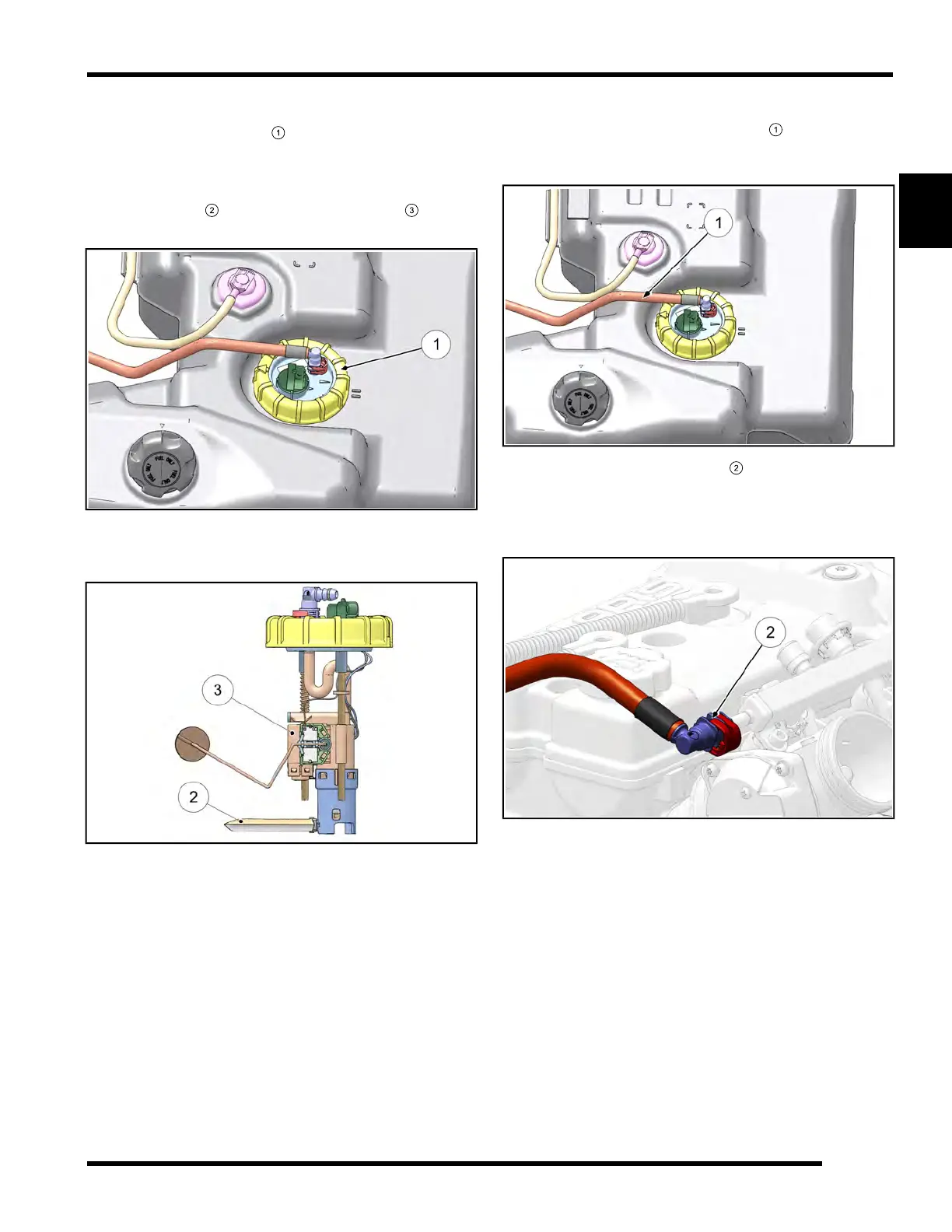

Fuel Pump / Fuel Filters

The fuel pump assembly

is located in the fuel tank

under the passenger seat.

The RZR XP 1000 EFI engine uses a serviceable, high-

volume, high-pressure, fuel pump that includes a

preliminary filter

and an internal fine filter

located

before the pump regulator.

NOTE: Neither filter is serviceable individually. Must

replace the fuel pump as an assembly.

Refer to Chapter 4 for fuel pump replacement and all

other information related to the EFI System.

Fuel Lines

1. Check the quick-connect fuel line

at the fuel tank

for signs of wear, deterioration, damage or leakage.

Replace line(s) if necessary.

2. Locate the fuel supply fitting

through the right rear

wheel well on the upper right side of the engine.

Check the line and quick-connect fitting for signs of

wear, deterioration, damage or leakage. Replace line

if necessary.

3. Be sure fuel lines are routed and retained properly.

NOTE: Make sure lines are not kinked or

pinched.
