10.22

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

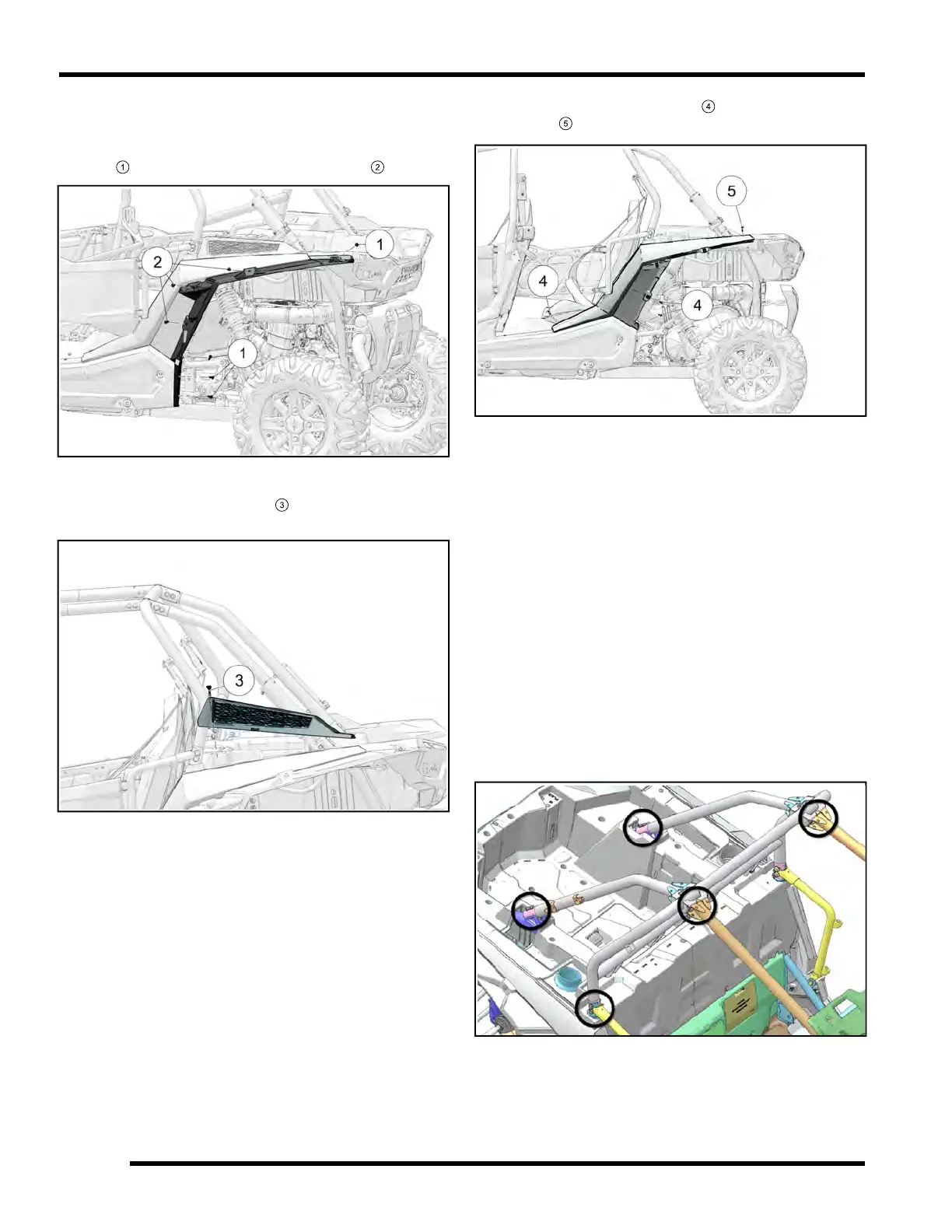

Rear Fender Flare / Rear Fender Removal

XP 4

1. Remove the three plastic rivets on the lower fender

flare

. Remove the four T40 Torx screws

2. Remove the fender flare from the vehicle.

3. Remove air intake cover

if removing left side

fender.

4. Remove the plastic rivets

and one T40 Torx

fastener

retaining the rear fender.

5. Remove fender from the vehicle.

Cargo Box Assembly Removal

1. Remove both seats.

2. Remove the PVT pre-filter (driver side) and air intake

pre-filter (passenger side) assembly.

3. Remove the T-25 Torx screw retaining each shock

reservoir hose cover and remove the cover..

4. Loosen the shock reservoir clamps and maneuver

the reservoir through the hole in the box.

NOTE: Do NOT let the reservoir hang by the

hose. Use a wire or string to restrain the

reservoir.

5. Remove the four bolts retaining each rear cab frame

and remove it from the vehicle. Remove the bolts

retaining the hip bolsters to the cab frame hoop.

6. Remove the eight fasteners retaining the rear cab

frame to the frame and to the front cab frame.

Remove the rear cab frame from the vehicle.

BODY / FRAME
