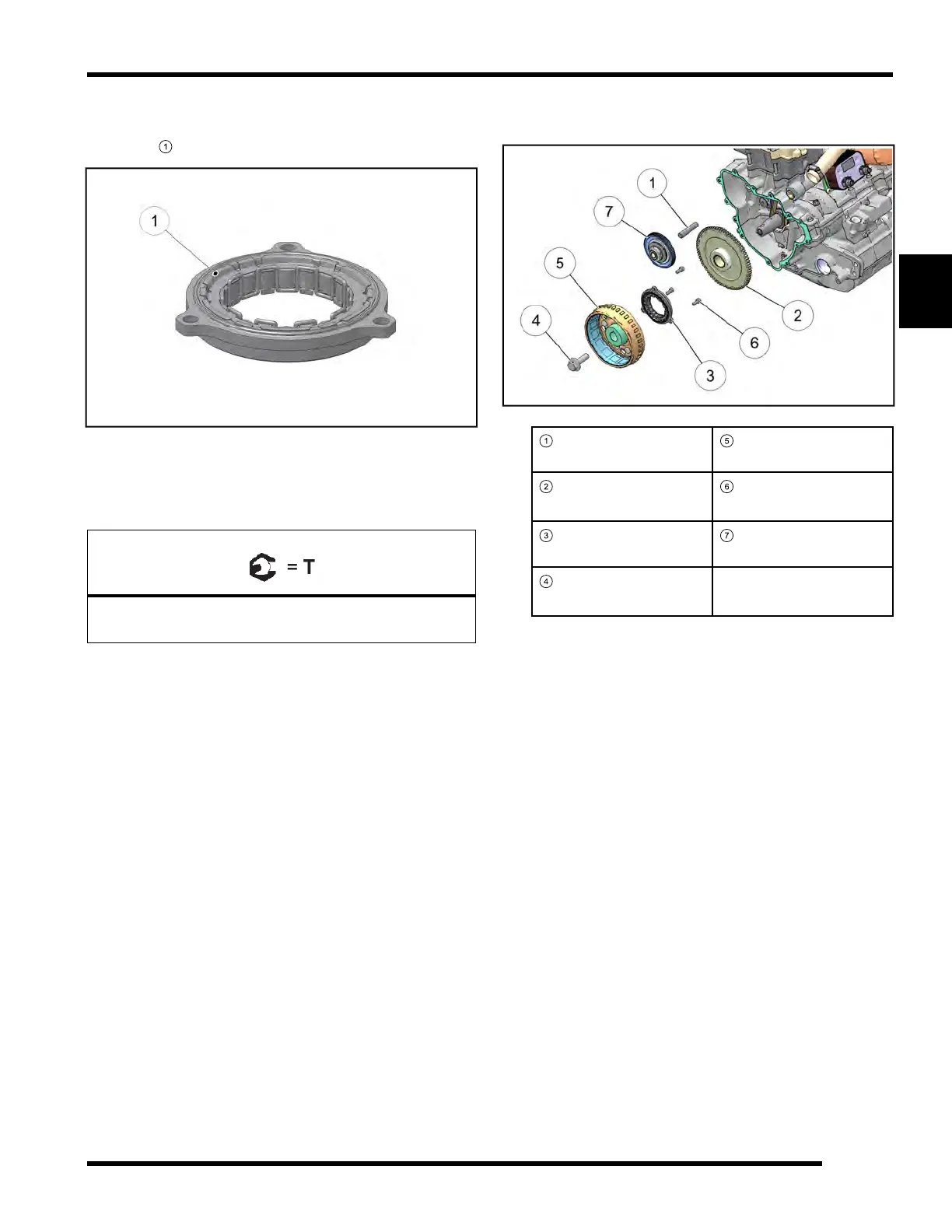

Starter One-Way Clutch Assembly
1. Install one-way clutch in clutch hub with flange of
clutch
1
engaged in recess.
2. Clean screw threads in flywheel to remove all oil or
grease.
3. Place one-way clutch on flywheel and install the
three screws. Torque screws to specification.
One-Way Clutch Retaining Screws:
9 ft-lb (12 Nm)
4. Reassemble starter one-way clutch and gear using
the following illustration.
1
Torque Limit Gear
Pin
5
Flywheel
2
Starter Gear
6
Screws 9 ft-lb (12
Nm)
3
One Way Clutch
Asm.
7
Torque Limit Gear
Asm.
4
Bolt 133 ft-lbs (180
Nm)
5. If starter gear was replaced, inspect the torque limit
gear.
6. After assembly, be sure the starter gear rotates in the
clockwise direction only.
