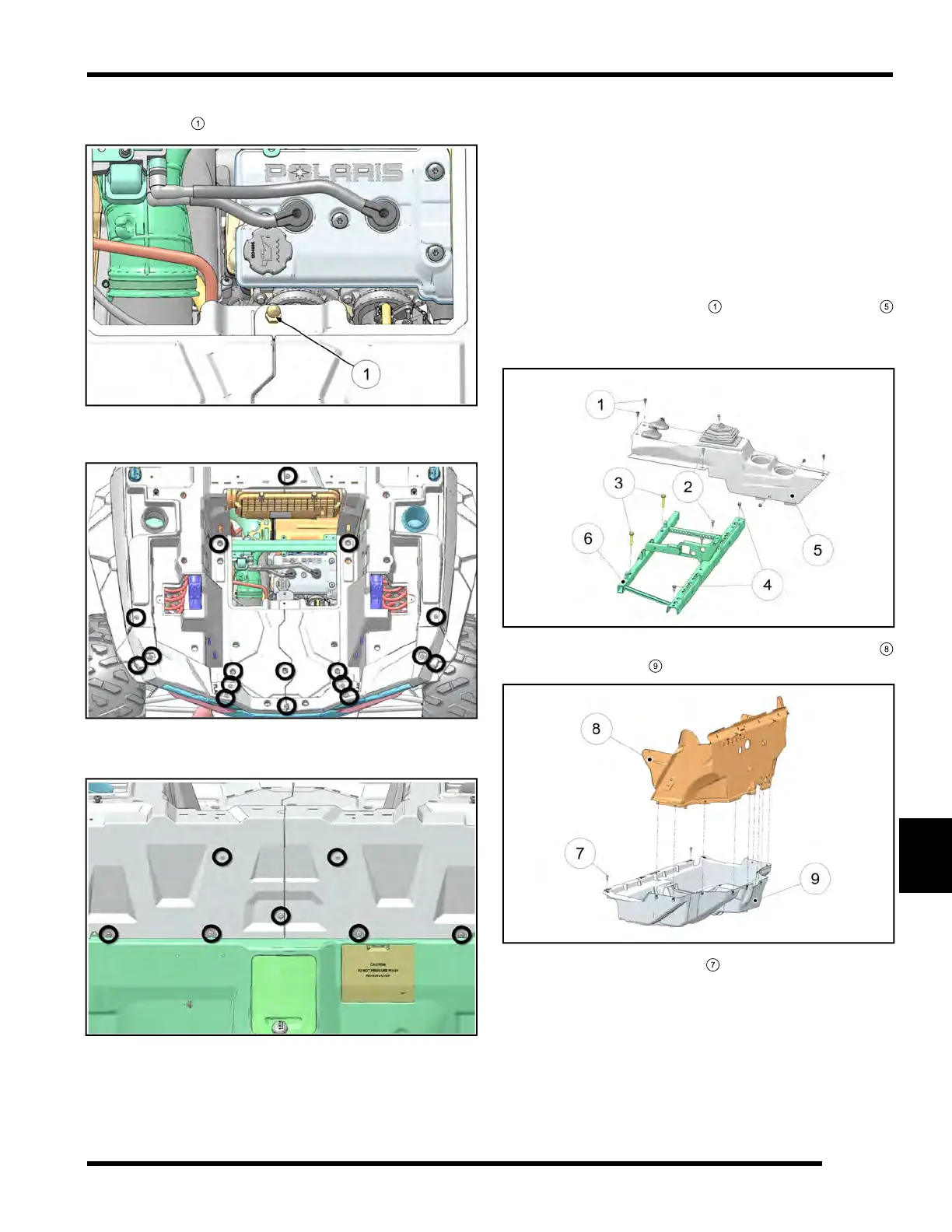

7. Remove the engine access panel and the panel
locking pin
1
.
8. Remove the 17 Torx screws in the bed of the cargo
box.
9. Remove the seven T-40 Torx screws on the cab side
of cargo box.
10. Remove the cargo box half from the vehicle.
Rocker Panels, Console and Floor XP / High
Lifter
Rocker Panel Removal
1. Remove the push rivets and Torx screws retaining
the rocker panel and remove panel from the vehicle.
Console and Lower Floor Removal
2. Remove both seats and rocker panels (see Chapter
10 – Floor / Rocker Panels XP / High Lifter, page
10.15).
3. Remove the T27 screws
1
retaining the console
5
to the floor.
4. Remove shift handle knob and remove the console.
5. Remove the Torx screws retaining the upper floor
8
to the lower floor
9
.
6. Remove the Torx screws
7
retaining the rear portion
of the floor and remove the lower floor from the
vehicle.
