10.14
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

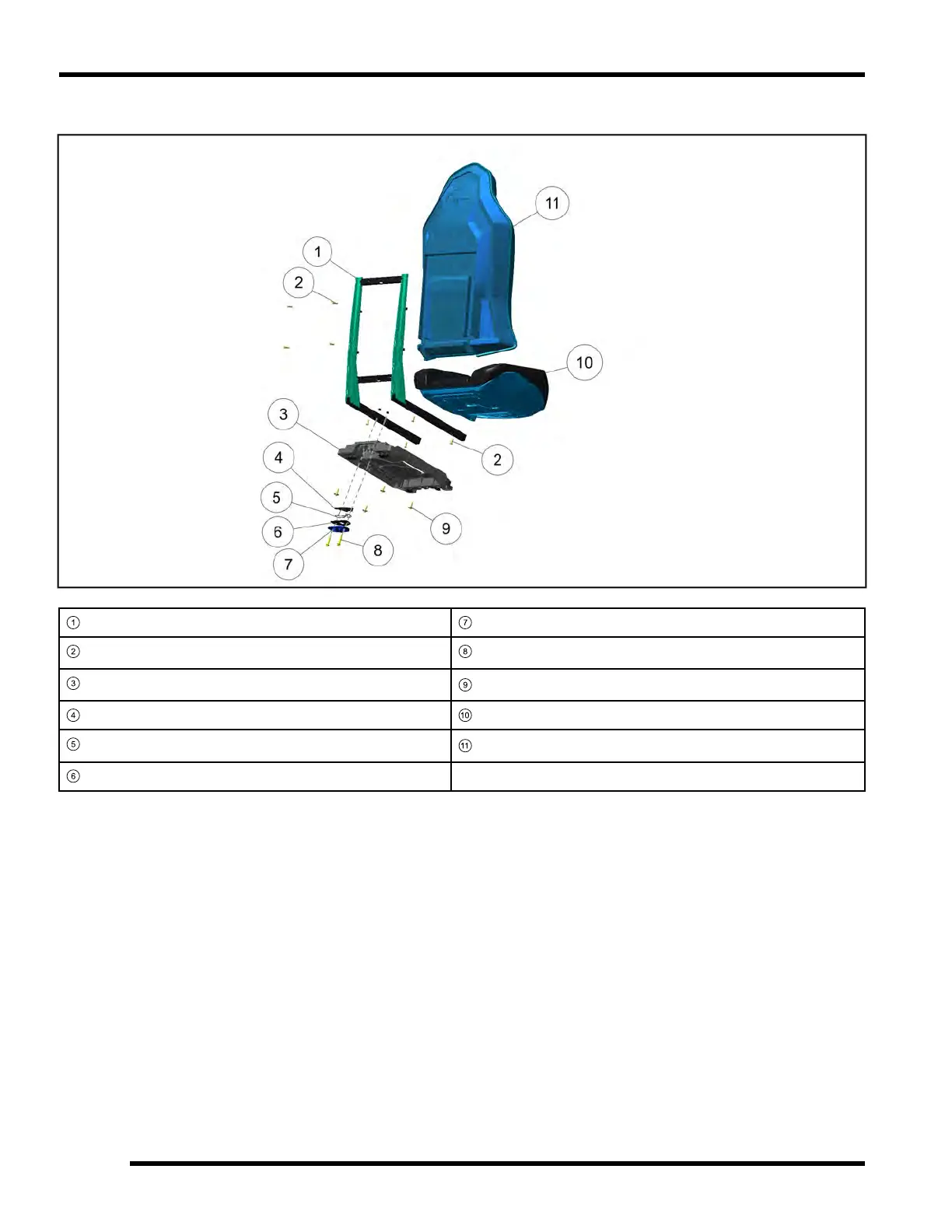

Seat Assembly Rear
1
Seat Frame
7
Plate Seat Latch
2
Screw 4 ft-lb (5 Nm)
8
Screw 4 ft-lb (5 Nm)
3
Seat Base Assembly
9
Bolt
4
Seat Latch Lever
10
Seat Bottom
5
Spring Seat Latch
11
Seat Back
6
Plate Seat Latch
BODY / FRAME
