10
10.13
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

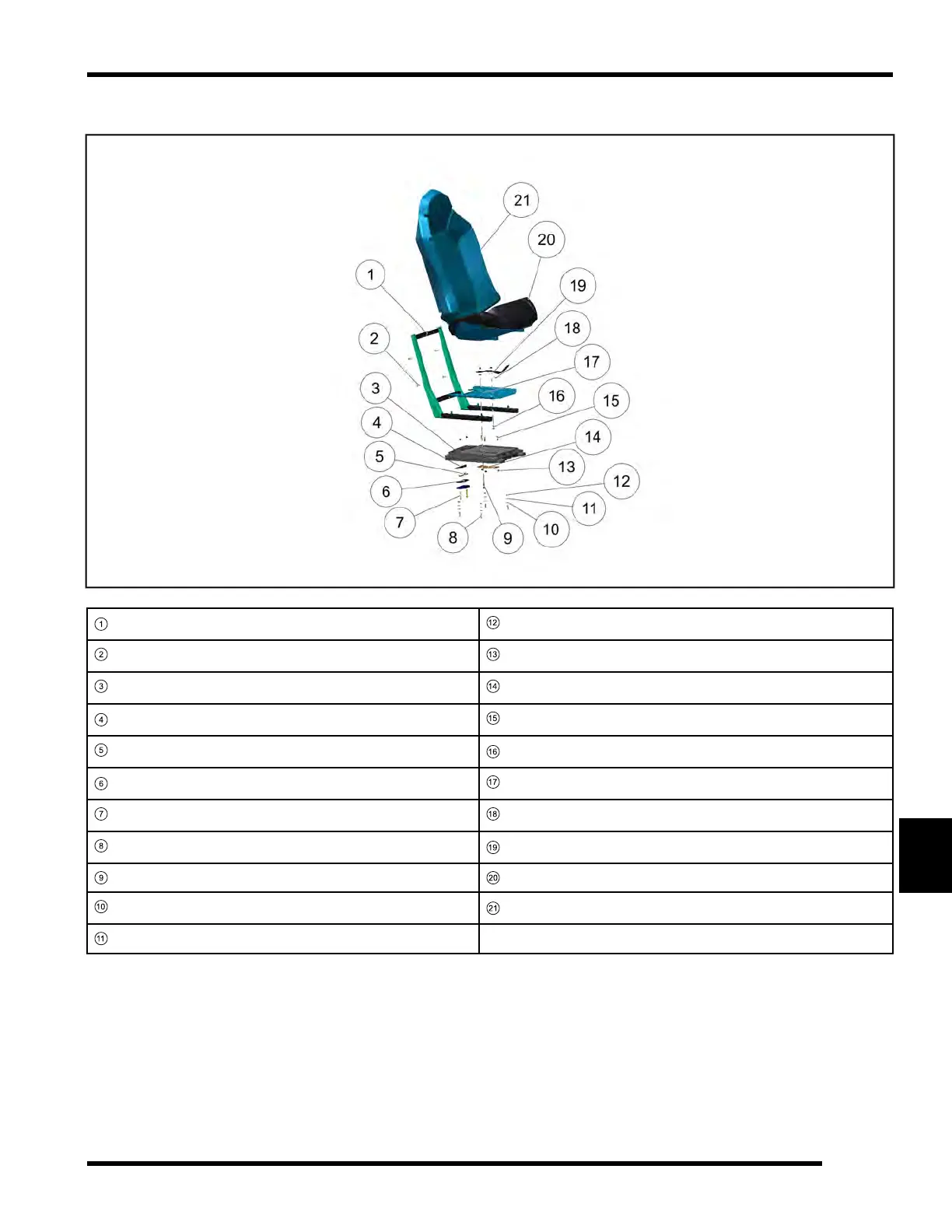

Seat Assembly Front
1
Seat Frame
12
Tube Spacer
2
Screw 48 in-lbs (5.4 Nm)
13
Flange Nut Nylok
3
Seat Base Assembly Slider
14
Slider Adjustment Plate
4
Seat Latch Lever
15
Carriage Bolt
5
Spring Seat Latch
16
Shoulder Bolt
6
Plate Seat Latch
17
Seat Slider Mounting Plate
7
Screw 4 ft-lb (5 Nm)
18
Spring
8
Screw 4 ft-lb (5 Nm)
19
Seat Slider Lever
9
Shoulder Bolt
20
Seat Bottom
10
Spring Lock Washer
21
Seat Back
11
Flat Washer
BODY / FRAME
