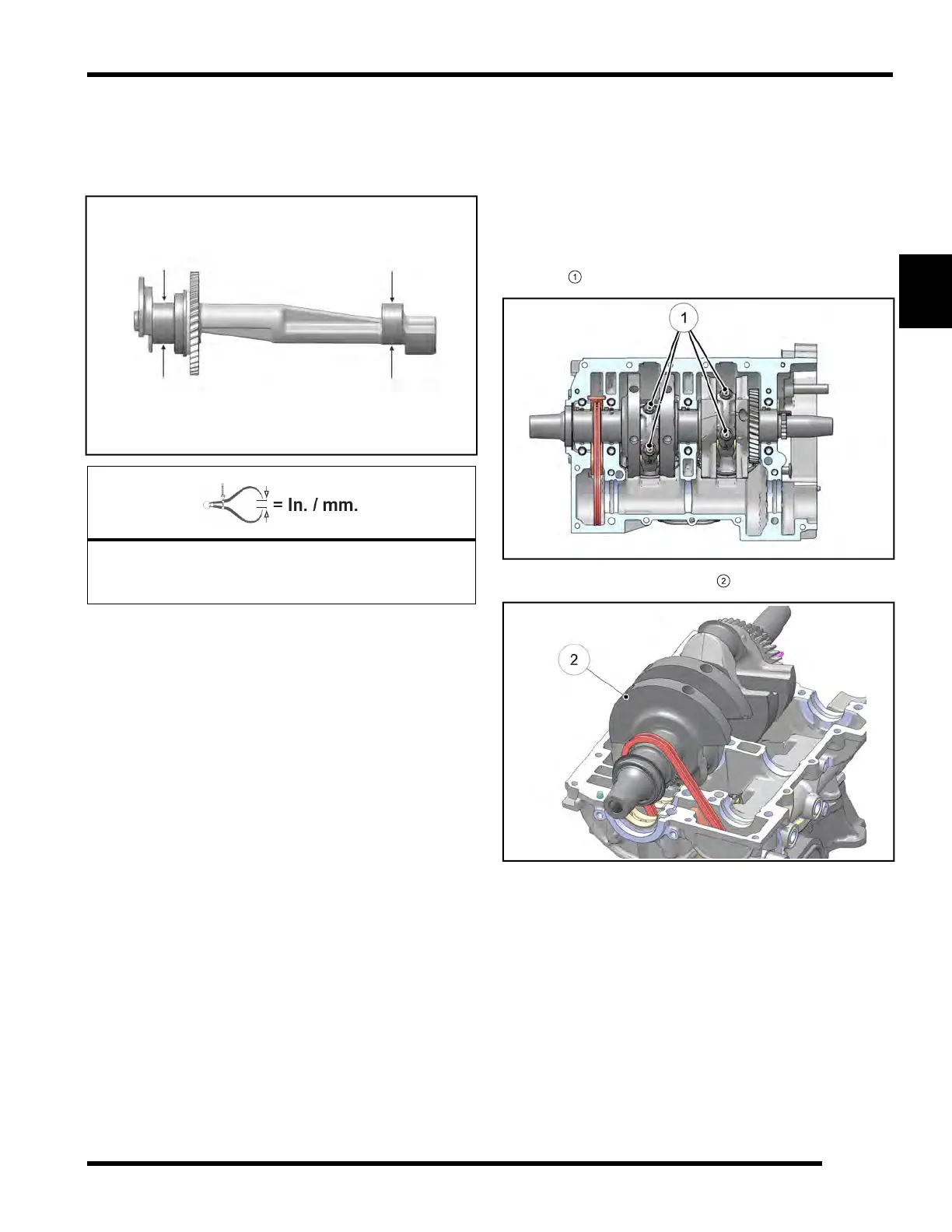

5. Measure each bearing journal in two locations, 90
degrees apart. Replace balance shaft if either journal
is worn below the service limit specification. If worn
past the service limit, replace the balance shaft
assembly.
Balance Shaft Diameter (MAG & PTO)
1.4939 - 1.4946" (37.946 - 37.962 mm)
Service Limit: 1.4921" (37.900 mm)
Crankshaft Removal / Inspection
1. Perform Crankcase Disassembly / Inspection, page
3.48 procedure.
2. Perform Balance Shaft Removal / Inspection, page
3.50 procedure.
3. For ease of assembly, mark each connecting rod and
end cap.
4. Loosen, remove and discard the four connecting rod
bolts
. Remove the end caps from the crankshaft.
5. Carefully lift the crankshaft
out of the crankcase.
