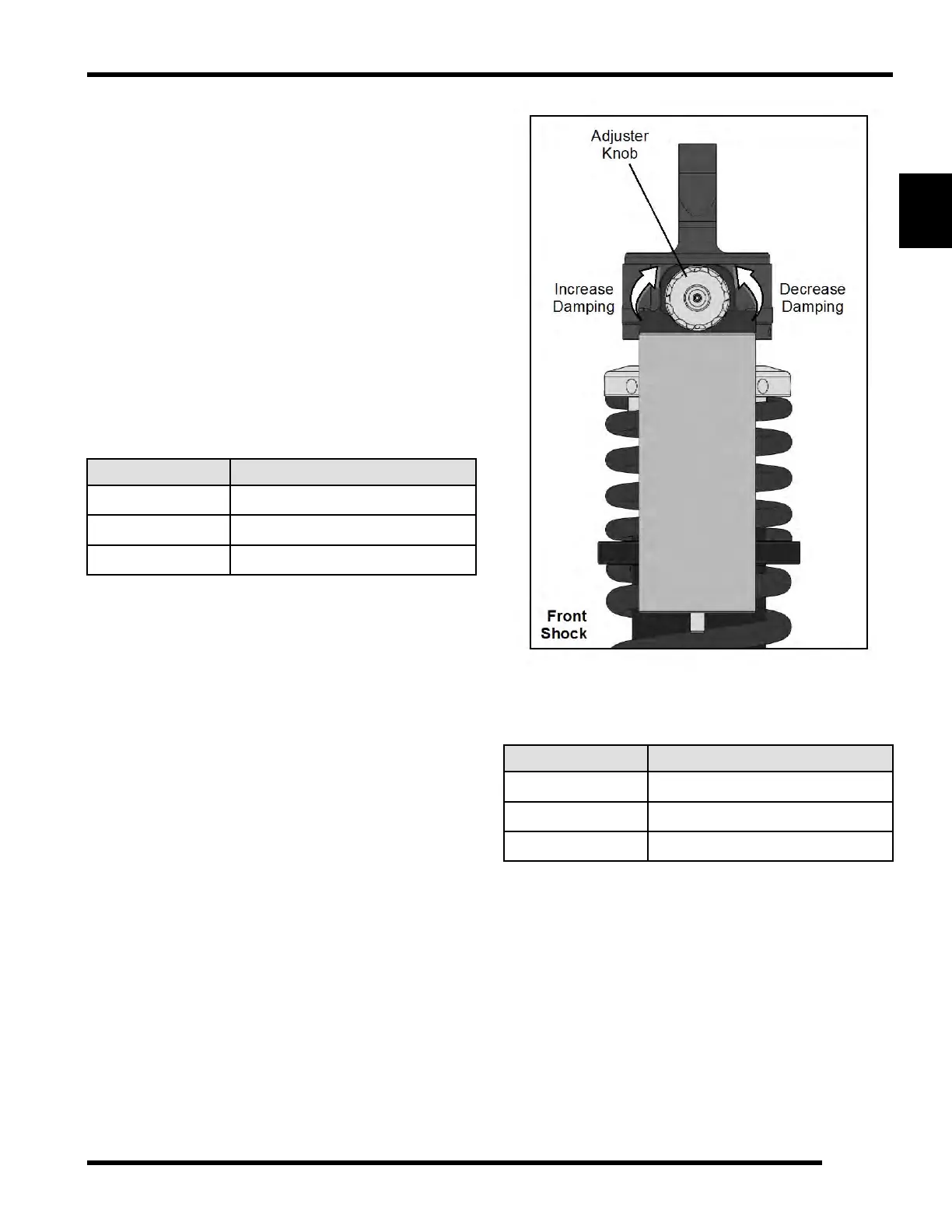

Shock Compression Adjustment
The compression damping adjustment is located on the
shock ‘Piggyback’ reservoir of each shock. Damping
adjustments can be made without using any tools.
NOTE: When the adjuster knob is turned counter-
clockwise until it stops, the damping is in the fully
open position (softest).
Turn the adjuster knob clockwise to increase
compression damping. Turn the adjuster knob counter-
clockwise to decrease compression damping.
NOTE: The recommended factory setting for the
front and rear shocks are provided in the following
compression adjustment tables.
Walker Evans™ 2.0" Front Shock:
Compression Adjustment Table
SETTING COMPRESSION DAMPING
Softest
Full counter-clockwise position
Factory
6 clicks from softest position
Firmest
Full clockwise position
Walker Evans™ 2.5" Rear Shock:
Compression Adjustment Table
SETTING COMPRESSION DAMPING
Softest
Full counter-clockwise position
Factory
7 clicks from softest position
Firmest
Full clockwise position
The rear shock adjuster can be found on the remote
reservoir. Clockwise will increase damping and counter-
clockwise will decrease damping.
