Crankcase Inspection

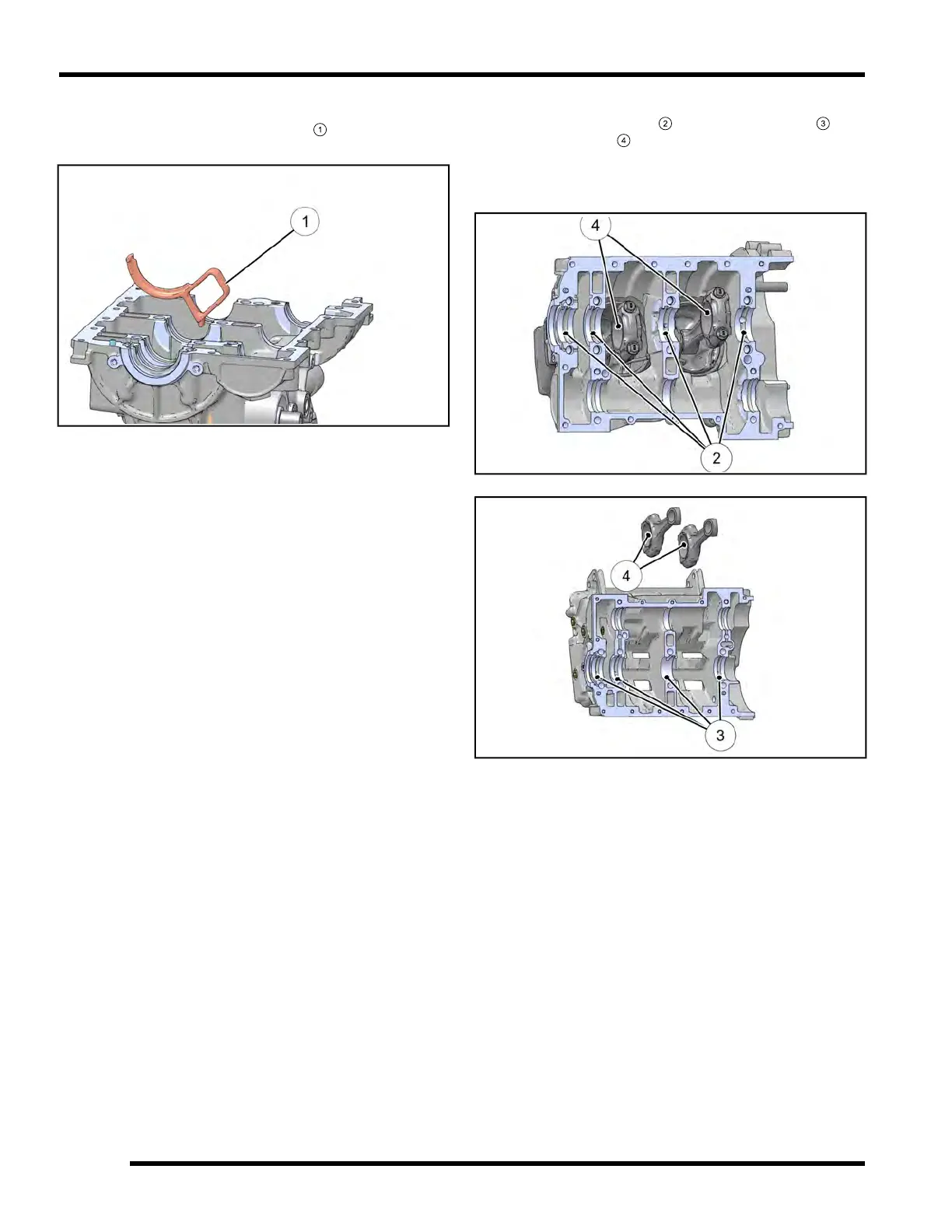

1. Remove the oil drain diverter
1
from the upper
crankcase.
2. Remove all traces of crankcase sealer from the
crankcase mating surfaces. Inspect the surfaces
closely for nicks, burrs or damage.
3. Be sure alignment pins are in place where used.
4. Be sure oil passages are clean and free of any
cleaning solvent (see Chapter 3 – Engine Oil Flow
Chart, page 3.5).
5. Remove and discard the plain bearings located in
the upper crankcase
2
, lower crankcase
3
and
connecting rods
4
. Replace the crankcase assembly
if a bearing bore is galled or if bearing inserts have
rotated in the case. Refer to bearing selection
procedures upon assembly.
NOTE: Always replace plain bearings when the
crankcase or connecting rods have been
disassembled. Refer to Bearing Selection
Identification Letters and Numbers, page 3.62.
