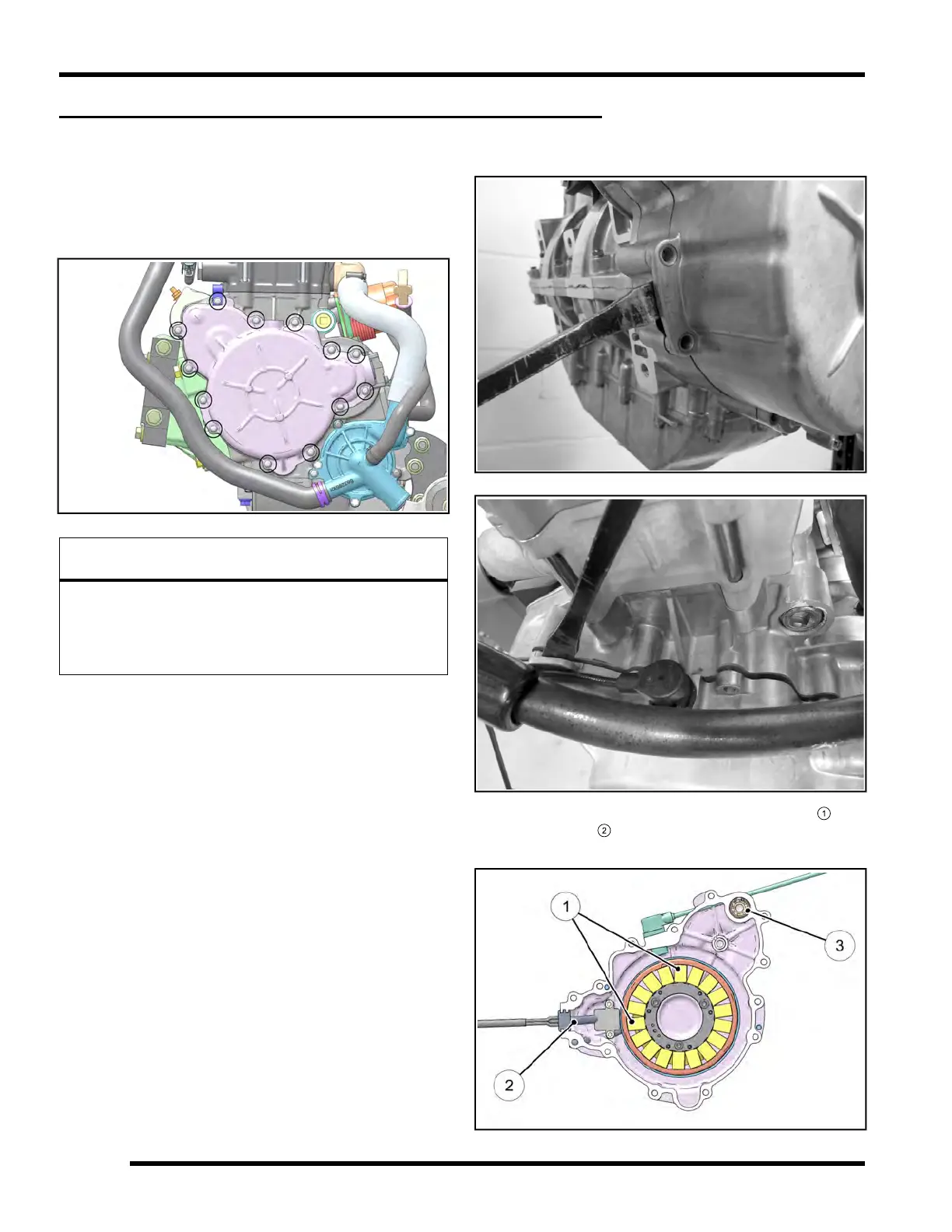

ENGINE DISASSEMBLY / INSPECTION - LOWER END
Stator Cover Removal / Inspection
NOTE: The stator cover can be removed with the
engine installed in the chassis.
1. Remove the thirteen screws retaining the stator
cover.
CAUTION
The flywheel contains powerful magnets. Use caution
when removing and installing the stator cover. DO NOT
place fingers between cover and crankcase at any time
during the removal / installation process or injury could
result.
2. Carefully pry the stator cover off the engine using the
two pry areas as shown.
3. Inspect the condition of the stator windings
1
and
output wires
2
. If replacement is required, refer to
Chapter 10.
